Specifications:

• Phase: Single Phase


• Form Factor: Rackmount | Tower


• UPS Topology: Line-interactive


• Energy Saving Technology: GreenPower UPS Bypass Technology


• Active PFC Compatibility: Yes


• Nominal Input Voltage ( Vac ): 220 � 5% | 230 � 5% | 240 � 5%


• Input Voltage Range ( Vac ): 160 - 286


• Adjustable Voltage Range ( Vac ): 150 - 300 Vac


• Input Frequency ( Hz ): 50 � 3 | 60 � 3


• Input Frequency Detection: Auto-sensing


• Input Connector Type: IEC C14


• Detachable Power Cord Plug Type: AU x 1


• Power Cord Length: 3m


• Capacity (VA): 1000


• Capacity (Watts): 800


• On Battery Waveform: Pure Sine Wave


• On Battery Voltage(s) ( Vac ): 220 � 5 % | 230 � 5 % | 240 � 5 %


• On Battery Frequency ( Hz ): 50 � 1% | 60 � 1%


• Power Factor: 0.8


• Automatic Voltage Regulation (AVR): Double Boost | Single Buck


• Overload Protection: Internal Current Limiting


• Outlet(s) - Total: 6


• Outlet Type: IEC C13 x 6


• Outlet(s) - Battery & Surge Protected: 6


• Outlet(s) - Critical Load (CL): 2


• Outlet(s) - Non-Critical Load (NCL): 4


• Typical Transfer Time ( ms ): 4


• Runtime at Half Load ( min ): 12


• Runtime at Full Load ( min ): 3.1


• Typical Recharge Time ( Hours ): 6


• Start On Battery: Yes


• User-replaceable: Yes


• Hot-swappable: Yes


• Battery Cartridge (RBP): RBP0027


• Battery Cartridge (RBP) Quantity ( pcs ): 1


• Surge Suppression ( Joules ): 810


• EMI/RFI Filtration: Yes


• LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning


• LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting


• LED Indicators: Power On


• HID Compliant USB Port(s): 1


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat


• Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• PowerPanel Cloud Service: Yes - 90 Days Free Trial


• Enclosure Construction: Metal


• Rackmount Ears: Yes


• Dimensions: 430 x 44 x 490mm


• Weight: 18kg


• Installed Rack Height ( U ): 1


• Online Thermal Dissipation ( BTU/hr ): 72


• Certifications: CE | C-Tick | EAC | RoHS


• Warranty: 3 Years

Features:

• Line-interactive UPS Topology


• Active PFC Compatible


• Automatic Voltage Regulation (AVR)


• Critical/Non-critical Load Outlets


• Surge and Spike Protection


• LCD Status Display


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)


• Energy Saving Technology


• Pure Sine Wave Output


• Overload Protection


• Hot-swappable Batteries


• EMI and RFI Filtration


• USB Connectivity Port


• PowerPanel Management Software


• Rack/Tower Convertible Configurations

What's in the box?

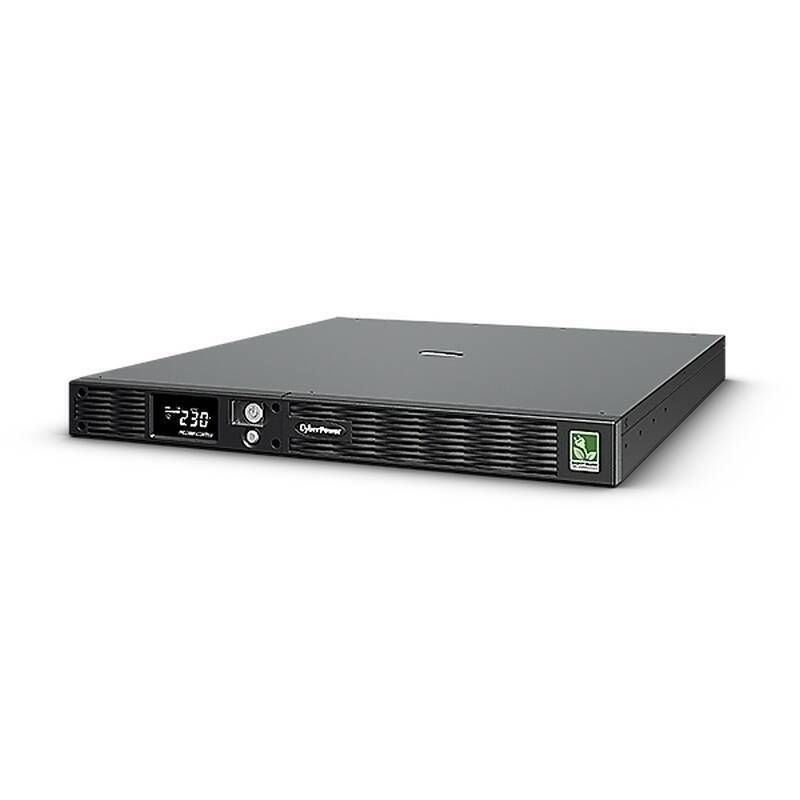

• 1 x PR1000ELCDRT1U UPS


• 1 x Rackmount Ears


• 1 x Screw Kit


• 1 x Power Cord


• 1 x USB Cable


• 1 x Serial Cable


• 1 x EPO Cable


• 1 x User Manual
