Specifications:

• Phase: Single Phase


• Form Factor: Rackmount


• UPS Topology: Line-interactive


• Energy Saving Technology: GreenPower UPS Bypass Technology


• Nominal Input Voltage ( Vac ): 230


• Input Voltage Range ( Vac ): 165 - 271


• Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac


• Input Frequency ( Hz ): 50 � 3 | 60 � 3


• Input Frequency Detection: Auto-sensing


• Input Connector Type: IEC C14


• Detachable Power Cord Plug Type: IEC C14 x 1


• Power Cord Length: 1.83m


• Capacity (VA): 1500


• Capacity (Watts): 900


• On Battery Waveform: Simulated Sine Wave


• On Battery Voltage(s) ( Vac ): 230 � 10 %


• On Battery Frequency ( Hz ): 50 � 1% | 60 � 1%


• Power Factor: 0.6


• Automatic Voltage Regulation (AVR): Single Boost


• Overload Protection: Internal Current Limiting | Circuit Breaker


• Outlet(s) - Total: 6


• Outlet Type: IEC C13 x 6


• Outlet(s) - Battery & Surge Protected: 4


• Outlet(s) - Surge-Only Protected: 2


• Typical Transfer Time ( ms ): 4


• Runtime at Half Load ( min ): 11


• Runtime at Full Load ( min ): 2.5


• Typical Recharge Time ( Hours ): 8


• Start On Battery: Yes


• User-replaceable: Yes


• Hot-swappable: Yes


• Replacement Battery Pack (RBP): RBP0026


• Replacement Battery Pack (RBP) Quantity ( pcs ): 1


• Surge Suppression ( Joules ): 810


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out


• LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information


• LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output


• HID Compliant USB Port(s): 1


• Serial Port: Dry Contact


• Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault


• Management Cable ( pcs ): Power Cord x4 | USB Cable x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Rackmount Ears: Yes


• Dimensions: 433 x 44 x 389mm


• Weight: 14.9kg


• Installed Rack Height ( U ): 1


• Online Thermal Dissipation ( BTU/hr ): 24


• Certifications: CE | EAC | RCM | RoHS


• Warranty: 2 Years

Features:

• Line-interactive UPS Topology


• Simulated Sine Wave Output


• Overload Protection


• Surge and Spike Protection


• Phone/Fax/Modem/DSL/Network Protection


• USB Connectivity Port


• SNMP/HTTP Remote Management Capability (Optional)


• Energy Saving Technology


• Automatic Voltage Regulation (AVR)


• Hot-swappable Batteries


• EMI and RFI Filtration


• LCD Status Display


• PowerPanel Management Software

What's in the box?

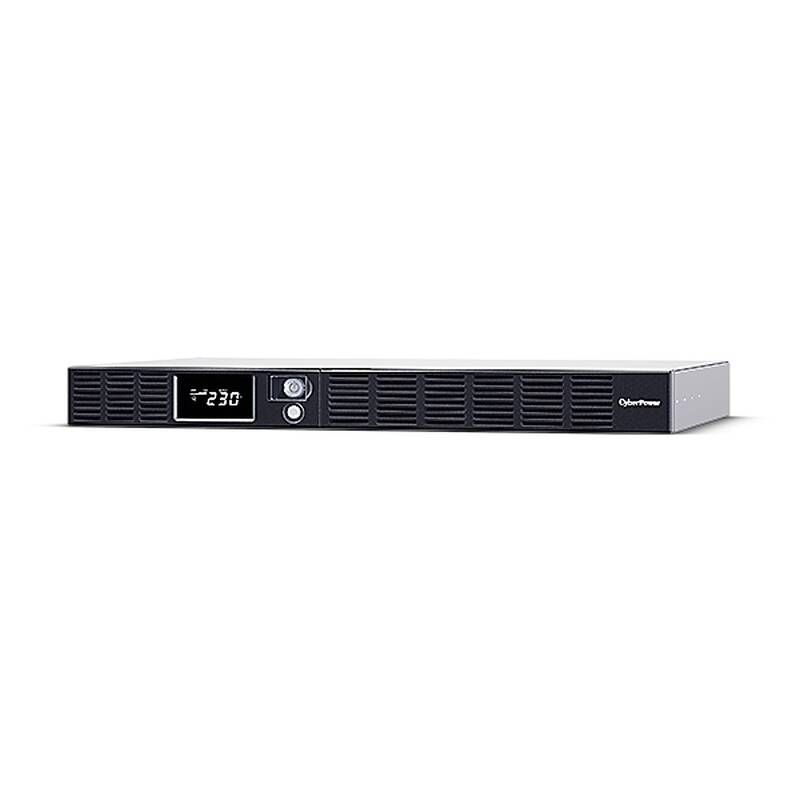

• 1 x OR1500ERM1U UPS


• 1 x Rackmount Ears


• 1 x Power Cord


• 1 x USB Cable


• 1 x User Manual
