Specifications:

• Phase: Single Phase


• Form Factor: Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 96%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230


• Input Voltage Range ( Vac ): 110 - 276


• Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac


• Input Frequency ( Hz ): 50 � 5 | 60 � 6


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 27.3


• Input Power Factor: 0.99


• Input Connector Type: Hardwire Terminal Block


• Capacity (VA): 6000


• Capacity (Watts): 5400


• On Battery Waveform: Pure Sine Wave


• On Battery Frequency ( Hz ): 50 � 0.1% | 60 � 0.1%


• Power Factor: 0.9


• ECO Mode Voltage Tolerance: � 10 %


• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse


• Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec


• Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec


• Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec


• Harmonic Distortion (Linear Load): THD?2%


• Harmonic Distortion (Non-linear Load): THD?5%


• Internal Bypass: Automatic Bypass, Manual Bypass


• Maintenance Bypass: Yes


• Outlet(s) - Total: 1


• Outlet Type: Hardwire Terminal Block x 1


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 18


• Runtime at Full Load ( min ): 7


• Typical Recharge Time ( Hours ): 7


• Maximum Charging Current ( A ): 1


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• User-replaceable: No


• Compatible Extended Battery Module (EBM): BPSE240V47A


• Max. EBM Quantity ( pcs ): 15


• Surge Suppression ( Joules ): 445


• EMI/RFI Filtration: Yes


• HID Compliant USB Port(s): 1


• Emergency Power Off (EPO) Port: Yes


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Dimensions: 260 x 708 x 550mm


• Weight: 70kg


• Online Thermal Dissipation ( BTU/hr ): 1603


• Audible Noise at 1.5M from Surface of Unit: 60 dBA


• Certifications: CE / RoHS


• Warranty: 2 Years

Features:

• Online (Double Conversion) UPS Topology


• Generator Compatible


• Maintenance Bypass Switch


• Smart Battery Management (SBM)


• Surge and Spike Protection


• LCD Status Display


• PowerPanel Management Software


• ECO Mode


• Overload Protection


• Zero Transfer Time


• Extended Battery Module (EBM)


• EMI and RFI Filtration


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)

What's in the box?

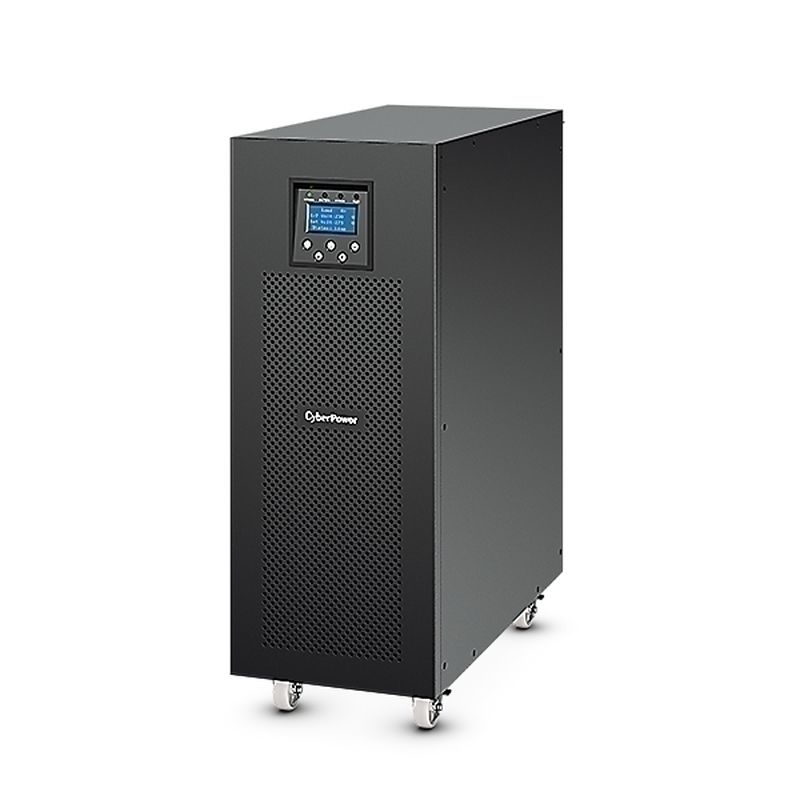

• 1 x OLS6000E UPS


• 1 x Parallel Port Cover Plate


• 1 x Terminal Cover


• 1 x Terminal Splices


• 1 x USB Cable


• 1 x User's Manual
