Specifications:

• Phase: Single Phase


• Form Factor: Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 95%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230 � 10%


• Input Voltage Range ( Vac ): 160 - 300


• Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac


• Input Frequency ( Hz ): 50 � 10 | 60 � 10


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 6.5


• Input Power Factor: 0.98


• Input Connector Type: IEC C14


• Detachable Power Cord Plug Type: AU x 1


• Power Cord Length: 1.8m


• Capacity (VA): 1500


• Capacity (Watts): 1350


• On Battery Waveform: Pure Sine Wave


• On Battery Frequency ( Hz ): 50 � 0.5% | 60 � 0.5%


• Power Factor: 0.9


• ECO Mode Voltage Tolerance: � 15 %


• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse


• Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately


• Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately


• Overload Protection (Bypass Mode): >130% Load Immediately


• Harmonic Distortion (Linear Load): THD?3%


• Harmonic Distortion (Non-linear Load): THD?5%


• Outlet(s) - Total: 4


• Outlet Type: IEC C13 x 4


• Outlet(s) - Battery & Surge Protected: 4


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 14


• Runtime at Full Load ( min ): 4


• Typical Recharge Time ( Hours ): 5


• Maximum Charging Current ( A ): 1


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• User-replaceable: No


• Compatible Extended Battery Module (EBM): BPSE36V45A


• Max. EBM Quantity ( pcs ): 3


• Surge Suppression ( Joules ): 440


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• HID Compliant USB Port(s): 1


• Emergency Power Off (EPO) Port: Yes


• Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Dimensions: 151 x 225 x 394mm


• Weight: 15.3kg


• Online Thermal Dissipation ( BTU/hr ): 420


• Audible Noise at 1.5M from Surface of Unit: 45 dBA


• Certifications: CE / RCM / RoHS


• Warranty: 2 Years

Features:

• Online (Double Conversion) UPS Topology


• Generator Compatible


• Zero Transfer Time


• Extended Battery Module (EBM)


• EMI and RFI Filtration


• LCD Status Display


• PowerPanel Management Software


• ECO Mode


• Overload Protection


• Smart Battery Management (SBM)


• Surge and Spike Protection


• Phone/Fax/Modem/DSL/Network Protection


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)

What's in the box?

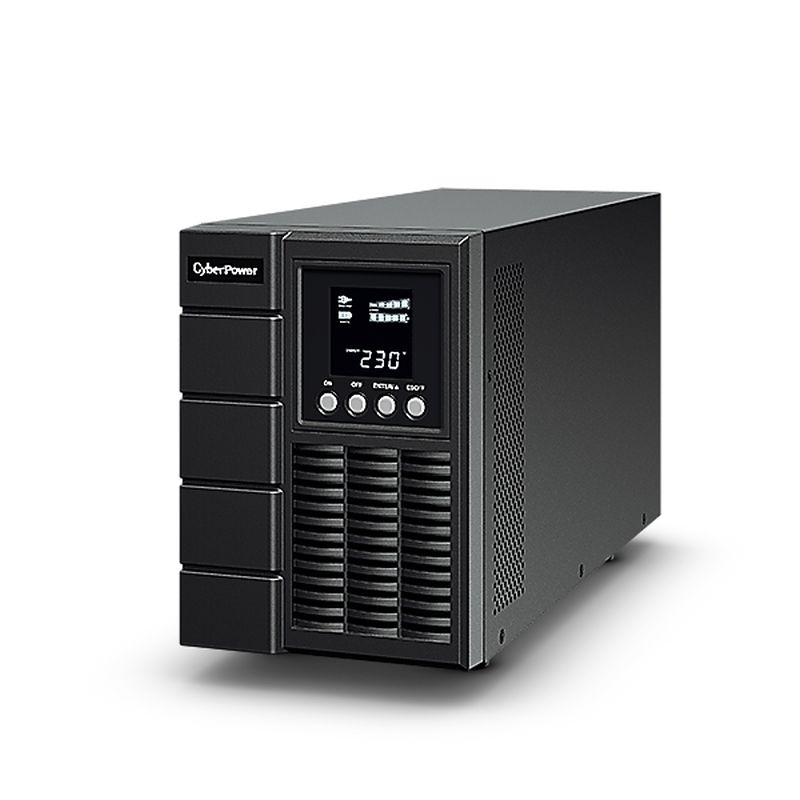

• 1 x OLS1500E UPS


• 1 x Power Cord


• 1 x USB Cable


• 1 x Phone Line


• 1 x User Manual
