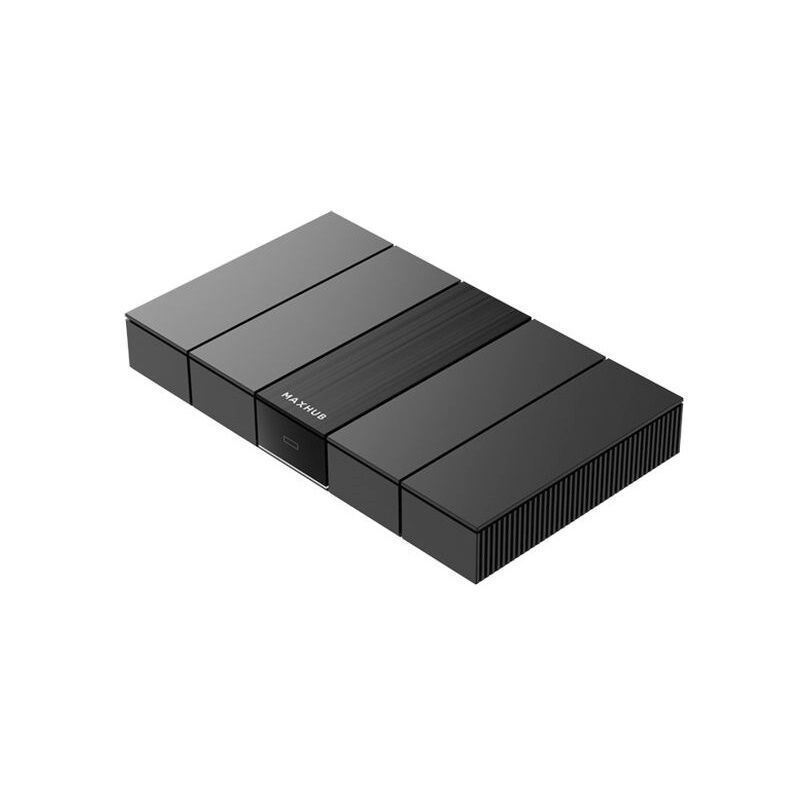

About Maxhub WB05 4K 60Hz PoE Wireless Screen Sharing Box with Dual HDMI Output

Android 9.0 OS, support 2.4G/5GHz dual frequency wifi, 4K UHD output, 60fps display, 6 CPU, 4GB RAM and 16GB ROM, no wireless dongles included

Specification:

•
  Type: Screen share box



•
  HDMI Output Resolution: 4K at 60Hz, 1080p at 60Hz



•
  Wireless Transmission Communication Protocol: Wi-Fi



•
  Wireless Frequency Band: 2.4 GHz, 5GHz



•
  Wi-Fi Antenna: Built-in 2T2R



•
  Wi-Fi working distance: 0 to 10m



•
  Cable Network: Gigabit port



•
  Compatible Transmitter Type: General



•
  Operating System



•
  System Version: Android 9.0



•
  CPU: Cortex-A72 Dual-Core, Cortex-A53 Quad-Core



•
  GPU: Mali-T860MP4



•
  RAM: 4gb



•
  ROM: 16gb



•
  Power



•
  Power Adapter AC Input: 100-240Vac



•
  Power Adapter DC Output: 12 V 3 A



•
  Power Consumption: 23.3w



•
  Input or Output Port



•
  USB Type-C: x1



•
  USB3.0: x1



•
  Audio Out: x1



•
  HDMI Out: x1



•
  DC2.0: x1



•
  RJ45: x1



•
  Environmental Conditions



•
  Operation Temperature: 0-40degree celcius



•
  Operation Humidity: 10-90percent RH



•
  Storage Temperature: -20-60degree celcius



•
  Altitude: Below 5000 meters



•
  Physical Specifications



•
  Dimensions: Dimension: 280 (w) x 310 (d) x 80 (h)mm



•
  Warranty: 2years



•
  Colour: Black


Features:

•
  Basic performance:



•
  HDMI output resolution: 4K@60Hz, 1080p@60Hz



•
  Wi-Fi antenna:



•
  Cable Network: Gigabit Port



•
  Compatible transmitter type: General



•
  Video encoding/decoding: Encoding: H.264/MVC/VP8; Decoding: H.264/H.265/VP9



•
  Physical Specifications



•
  Dimension L×H×D : 255×147×38 mm (10.04×5.79×1.50 inch)



•
  Net Weight: 0.8 kg (1.76 lb)



•
  Power



•
  Power Requirements:



•
  Power Adapter AC Input:



•
  Power Adapter DC Output:



•
  Package Dimension L×H × D: Product package 1 pc: 310×275×75 mm (12.20×10.83×2.95 inch)



•
  Product package 5 pcs: 408×330×306 mm (16.06×12.99×12.05 inch)



•
  Gross Weight: Product package 1 pc: 1.43 kg (3.15 lb)



•
  Product package 5 pcs: 8 kg (17.64 lb)
