About MAXHUB Xboard V7 MTR 75''

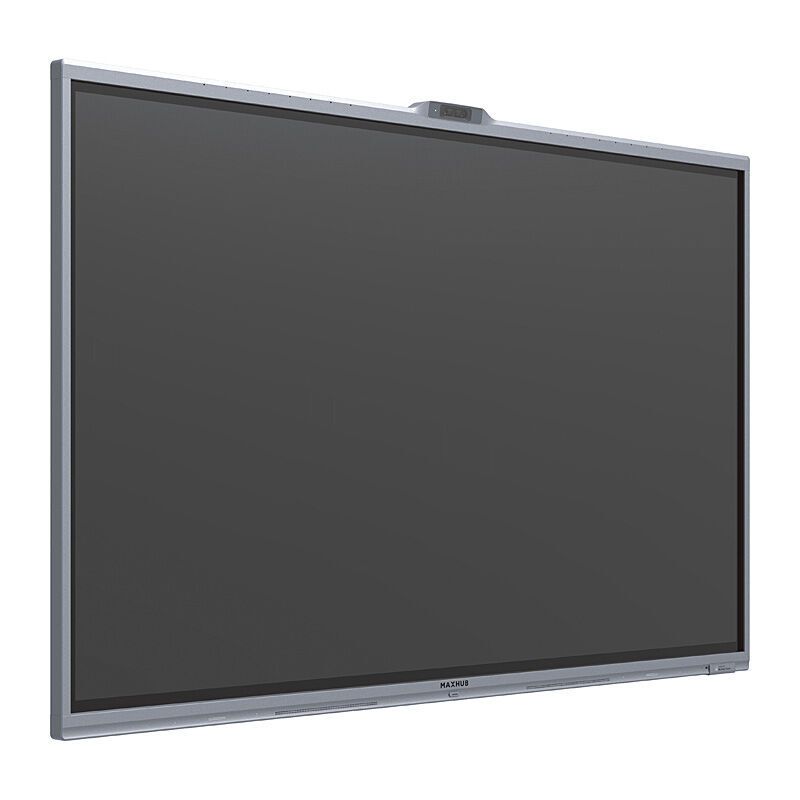

MAXHUB Xboard V7 MTR 75''

Features

•

  Professional 4K Display

  – High color accuracy, wide color gamut, NTSC 90%; non-glare technology with 25% haze



•

  Seamless Collaboration

  – Built-in touch display and Microsoft Whiteboard for real-time collaboration



•

  Triple-Camera System

  – Equipped with one wide-view lens and two tele-view lenses to provide clear views for all room participants



•

  AI-Powered Video Technology

  – Auto Framing, Speaker Tracking, Multi-Speaker Tracking, Intelligent Focus



•

  Premium Audio

  – Built-in 16 beamforming microphone array, Built-in stereo speakers, AI-powered noise reduction, full-duplex communication



•

  Flexible Content Share

  – Wired 4K content share via HDMI In; wireless content share via wireless dongle or MAXHUB Share application



•

  BYOD

  – BYOD mode with plug and play accessibility for switching between Teams Rooms mode and BYOD mode



•

  Pivot Secured and Managed

  – Win 11 IoT SAC with MAXHUB Pivot supported


Specifications

Display

•
  Model V7555T



•
  Screen Size (Inch) 75



•
  Aspect Ratio 16:9



•
  Panel VA



•
  Backlight DLED



•
  Brightness (Typ.) 350 nits



•
  Glass Zero parallax 3 mm thickness 9H Tempered



•
  Surface Technology 25% haze Non-glare technology



•
  Resolution 3840 × 2160



•
  Refresh Rate 60 Hz



•
  Contrast Ratio 1200:1 (typ.)



•
  Viewing Angle (H × V) 178° / 178°



•
  Color Gamut 90% NTSC



•
  Display Orientation Landscape



•
  Response Time 8 ms



•
  Life Time > 50,000 hours



•
  Operation Hours (Hours / Day) 16 / 7



•
  Display Color 1.07 B (10 bit)



•
  Color Accuracy Delta E ≤ 1.5



•
  Sensor Ambient light sensor Motion Sensor



•
  Pixel Pitch 0.42975 (H) × 0.42975 (V) mm / 0.0169 (H) × 0.0169 (V) inch



•
  Display Area 1650.24 (H) × 928.26 (V) mm / 64.97 (H) × 36.55 (V) inch


Connectivity

•
  I/O Ports (Interactive Display)



•
  HDMI In (2.0) × 2 To connect an external source (disabled as default, and can be enabled on MAXHUB Align app.)



•
  USB-A (2.0) × 1 To pair with wireless dongle-WT13M/ WT13S To connect keyboards or mouse, etc.



•
  Touch (USB-B 2.0) × 1 To connect a personal laptop to access to XBoard's camera & microphone and get touch back (disabled as default, and can be enabled on MAXHUB Align app.)



•
  Audio In × 1 To connect an external audio source to make XBoard a speaker



•
  Audio Out × 1 3.5 mm mini-jack, to connect an external speaker system



•
  RS232 × 1 9 pin



•
  Mic In (RJ45) × 1 To connect up to a maximum of three UC BM45 as expansion speakerphones



•
  Wireless Access Point Yes (for wireless presentation)


Camera

•
  Wide Camera 50MP × 1 DFOV 99°, HFOV 86°



•
  Telephoto Camera 50MP × 2 DFOV 68° (combined), HFOV 63° (combined)



•
  Zoom 5x hybrid zoom



•
  Privacy Shutter Yes


AI Features

•
  Auto Framing



•
  Speaker Tracking



•
  Multiple-speaker Tracking



•
  Intelligent Focus


Microphone

•
  Quantity 16-mic array



•
  Pick-up Angle 180°



•
  Pick-up Range Best distance – 8 m / 26.2 ft Maximum distance - 15 m / 49.2 ft



•
  Feature Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)


Audio

•
  Sound Channel 2.1



•
  Speaker Power 2×10W + 20W


Power

•
  Power Supply 100-240V ~ 50/60 Hz



•
  Standby Power ≤ 0.5 W



•
  Power Consumption (Typ.) 155 W



•
  Power Consumption (Max.) 390 W


Touch System

•
  Touch Technology Intelligent Touchscreen Technology (infrared recognition)



•
  Touch Point 50 points touch



•
  Object Recognition Range ≥ 1.5 mm



•
  Accuracy ± 0.5 mm



•
  Response Time ≤ 2.5 ms



•
  Writing Height ≤ 1 m


Environmental Condition

•
  Operating Temperature 0°C~40°C



•
  Storage Temperature -20°C~60°C



•
  Operating Humidity 10%~90% RH



•
  Storage Humidity 10%~90% RH



•
  Altitude Below 5000 meters


Accessory (Included in the Package)

•
  Wireless Module AP



•
  HDMI Cable (3 m / 9.8 ft ) × 1



•
  Power Cord × 1



•
  Passive Stylus × 2



•
  Wall Mounts Kits × 1


Certification

•
  Safety IEC 62368-1



•
  EMC Class B


Warranty

•
  3-Year warranty


Physical Specification

•
  Dimension (W × H × D) 1709.4 × 1040.3 × 90 mm / 67.3 × 40.96 × 3.54 inch



•
  Shipping Dimension (W × H × D) 1863 × 1140 × 225 mm / 73.35 × 44.89 × 8.86 inch



•
  Thickness of Machine and Wall Mount 117 mm / 4.61 inch



•
  Wall-hanging Screw Spec M8 × 25 mm



•
  VESA 800 × 400 mm / 31.5 × 15.8 inch



•
  Net Weight 48 kg / 105.82 lbs



•
  Gross Weight 63 kg / 138.89 lbs


PC Module (Slot-in)

•
  CPU 12th gen Intel Core i5 – 1240p



•
  GPU Intel® Iris® Xe Graphics eligible



•
  Memory 16GB DDR4 (8GB ×2)



•
  Storage 256GB SSD (M.2)



•
  Operating System Windows11 IOT



•
  TPM 2.0 Yes


Input & Output

•
  USB-A (3.0) ×3



•
  HDMI In (2.0) ×1 (For content share in Teams rooms mode, up to 4K resolution on local room display)



•
  HDMI Out × 2 (Without actual function currently, hardware reserved for possible future use)



•
  RJ45 × 1 (Ethernet)



•
  RJ45 × 1 (For optional touch console - TCP33T (available in early Q3 2025)



•
  Wi-Fi Wi-Fi 6



•
  Bluetooth Bluetooth 5.1


Accessory (Optional)

•
  Mobile Stand ST33M / ST23G



•
  Expansion Speakerphone UC BM45



•
  Wireless Share Dongle WT13M / WT13S



•
  Touch Console TCP33T (Available in Q3 2025)
