About MAXHUB U series U7540 75''

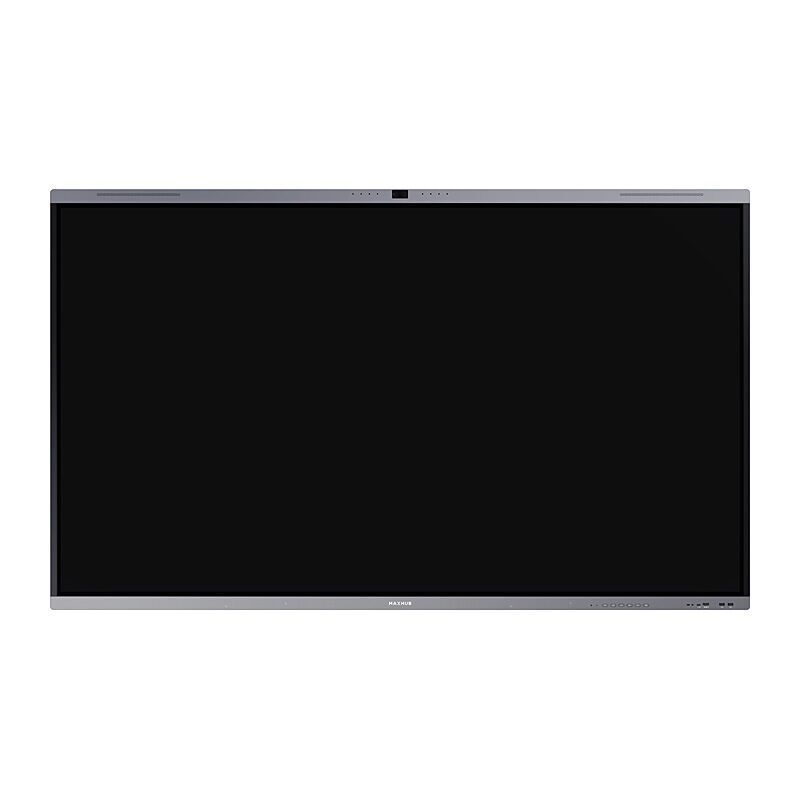

MAXHUB U series U7540 75''

Features

•

  Prominent Display

  – 4K display, 10 bit color, high color accuracy



•

  Classroom Care

  – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification



•

  SkyWave Sound System

  – 2.2 channel speaker, 2×12W + 2×25W maximum



•

  Advanced Security System

  – Powered by Android 15 with Google EDLA certification



•

  Peak Performance

  – Octa-core CPU, independent NPU, 16GB RAM, 256GB ROM



•

  Convenient Connectivity

  – Full-function USB-C integrating 100W PD, video, audio, touch, and internet access features



•

  Precious Touch

  – MAXHUB Think&Ink Technology, 50 touch points, ±0.5 mm touch accuracy



•

  Comprehensive Software Suite

  – Versatile applications for education and collaboration


Specifications

Display

•
  Model U7540



•
  Diagonal Size (inch) 75



•
  Display Area 1650.24 (H) — 928.26 (V) mm



•
  Aspect Ratio 16:9



•
  Resolution 3840 (H) — 2160 (V)



•
  Viewing Angle 178° (H/V)



•
  Screen Level A-Level



•
  Panel Brightness 500 nits (max.)



•
  Contrast Ratio 5,000:1 (typ.) 50,000:1 (dynamic)



•
  Color Depth 1.07B (10bit)



•
  Color Gamut (typ.) 98% sRGB



•
  Color Accuracy ?E?1



•
  Glass Zero parallax 3mm thickness 9H tempered



•
  Surface Technology Non-glare, 25% haze Etched-AG Technology



•
  Sensor Ambient light sensor Ambient color temperature sensor



•
  Eyes Care TœV Flicker Free TœV Low Blue Light



•
  Refresh Rate 60Hz



•
  Response Time 6.5ms



•
  Backlight Unit DLED



•
  Backlight Life (typ.) ? 60,000 Hours


Touch System

•
  Touch Technology Infrared recognition



•
  Touch Point 50 Points touch



•
  Object Recognition Range 1.5 mm



•
  Accuracy ± 0.5 mm



•
  Response Time ? 2.5 ms



•
  Writing Height ? 1 mm



•
  MAXHUB Think&Ink Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color



•
  System (Touch Return) Windows1/Windows0/Windows/Windows/ Android/Linux/Mac OS X/Chrome


Connectivity

•
  Input HDMI IN — 4 Up to 4K@60Hz, HDCP 1.4&2.2&2.3, CEC, ARC (HDMI 1)



•
  USB 2.0 — 1 For system upgrades



•
  USB 3.0 — 4 Front—2 + Rear—2



•
  Touch — 2 3.0—2



•
  USB Type-C — 2 Video and audio transmission, touch, charging, LAN network sharing. Front: up to 65W PD; Rear: up to 100W PD



•
  DP IN — 1 4K@30Hz, HDCP 1.4&2.2&2.3



•
  AUDIO IN — 1 3.5mm jack



•
  RS232 — 1 Baud rate 9600



•
  RJ45 IN — 1 10M/100M/1000Mbps



•
  TF Card Port — 1 Expandable up to 1TB



•
  Output HDMI OUT — 1 Up to 4K@60Hz



•
  AUDIO OUT — 1 3.5mm jack



•
  USB Type-C — 1 Type-C OUT



•
  SPDIF — 1 PCM output format



•
  RJ45 OUT — 1 10M/100M/1000Mbps



•
  OPS Slot Module slot — 1



•
  Wi-Fi Module Slot Module slot — 1 Wi-Fi Module (SI07B)



•
  Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz



•
  Bluetooth 5.2


Built-in System

•
  Operating System Android 15.0



•
  Certification Google EDLA certification



•
  RAM 16 GB



•
  ROM 256 GB



•
  SoC Process 8 nm



•
  CPU A76—4+A55—4 Octa-core, 2.4GHz



•
  GPU Mali-G610 MP4



•
  NPU 6 TOPS


Camera

•
  Quantity — 1



•
  Resolution 50MP



•
  FOV 115° DFOV, 101° HFOV, 85° VFOV



•
  Feature Manual Mode Auto Framing Speaker Tracking Person Counting Random Election


Audio

•
  Audio System SkyWave Sound System



•
  Sound Channel 2.2



•
  Speaker Power 2—8W+2—18W (output) 2—12W+2—25W (maximum)



•
  Sound Pressure Level 88 dB (1W, 1m)



•
  Microphone Quantity 8-mic array



•
  Pick-up Angle 180°



•
  Pick-up Range 0~12 m



•
  Feature Intelligent Audio Fence AI Spatial Sound AEC (Auto Echo Cancellation) ANC (AI Noise Cancellation) AGC (Auto Gain Control)


Power

•
  Power Supply AC 100~240V 50/60Hz



•
  Power Consumption (standby) ? 0.5W



•
  Power Consumption (typ.) 80W



•
  Power Saving Energy Star Certification


Physical Specification

•
  Dimension (L—H—D) 1709.4 — 1034 — 97 mm



•
  Shipping Dimension (L—H—D) 1863 — 1148 — 185 mm



•
  Thickness of Machine and Wall Mount 122 mm



•
  Wall-hanging Screw M7—56 mm



•
  VESA No



•
  Net Weight 40.6 kg



•
  Gross Weight 53.5 kg


Environment

•
  Operating Temperature 0°C~40°C



•
  Storage Temperature -20°C~60°C



•
  Operating Humidity 10%~90%RH



•
  Storage Humidity 10%~90%RH



•
  Altitude Below 5000 meters



•
  Dust Resistance IP5X-rated


Accessories

•
  Power Cord 3 m — 1



•
  HDMI Cable 3 m — 1



•
  Remote Control — 1



•
  Stylus SW13F — 2



•
  Display Bracket — 2



•
  Wall Mount Bracket WIB9060K — 1



•
  Wi-Fi Module SI07B — 1


Optional Module

•
  USB Camera UC W31



•
  PTZ Camera UC P30



•
  Video Bar UC S07



•
  OPS Module OPS62A/OPS72A



•
  Smart Pen SP30B



•
  Sensor Box WL10C, WL20



•
  Mobile Stand ST33M, ST23B, EST09


Software System

•
  OS MAXHUB EDU OS V4



•
  Whiteboard Tool MAXHUB Class Pro



•
  Screen Sharing MAXHUB Connect



•
  Device Management MAXHUB Pivot



•
  Google Apps Google Play, Google Drive, Google Meet, Google map, YouTube, etc.



•
  Other Apps Browser, Cloud Drive, Note, Palette, etc.
