About MAXHUB U series U6540 65''

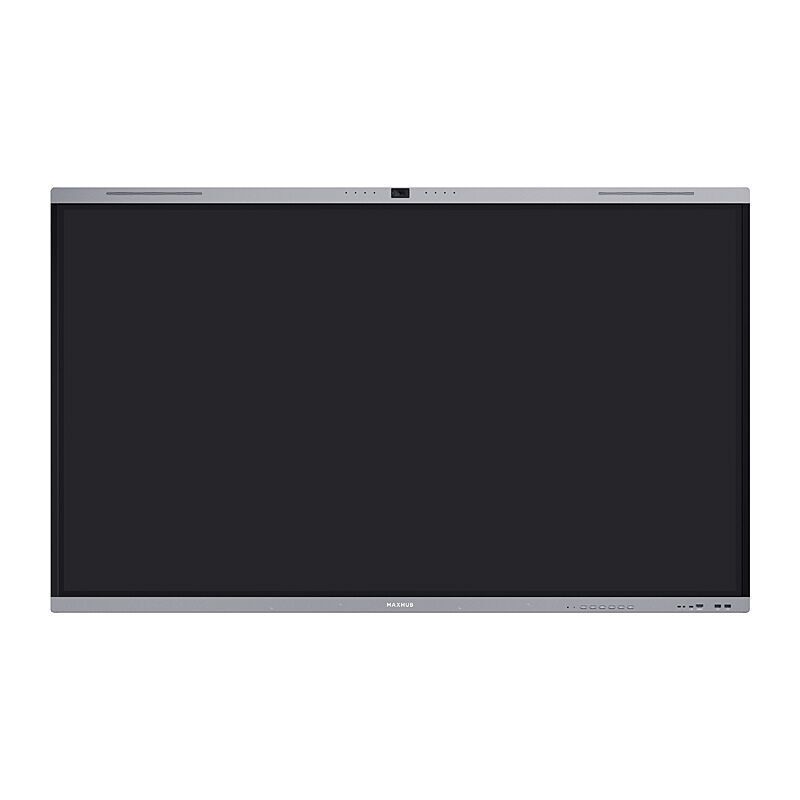

MAXHUB U series U6540 65''

Features

•

  Prominent Display

  – 4K display, 10 bit color, high color accuracy,



•

  Classroom Care

  – Hardware-grade eye care, Low Blue Light and Flicker Free certification



•

  SkyWave Sound System

  – 2.2 channel speaker, 2—12W + 2—25W maximum output



•

  Advanced Security System

  – Powered by Android 15 with Google EDLA certification



•

  Peak Performance

  – Octa-core CPU, independent NPU, 16GB RAM, 256GB ROM



•

  Convenient Connectivity

  – Full-function USB-C integrating 100W PD, video, audio, touch, and internet access features



•

  Precious Touch

  – MAXHUB Think&Ink Technology, 50 touch points, ±0.5 mm touch accuracy



•

  Comprehensive Software Suite

  – Versatile applications for education and collaboration


Specifications

Display

•
  Model: U6540



•
  Diagonal Size: 65 inch



•
  Display Area: 1428.48 (H) — 803.52 (V) mm



•
  Aspect Ratio: 16:9



•
  Resolution: 3840 (H) — 2160 (V)



•
  Viewing Angle: 178° (H/V)



•
  Screen Level: A-Level



•
  Brightness: 500 nits (max.)



•
  Contrast Ratio: 5,000:1 (typ.), 50,000:1 (dynamic)



•
  Color Depth: 1.07B (10bit)



•
  Color Gamut (typ.): 98% sRGB



•
  Color Accuracy:



•
  Glass: Zero parallax, 3 mm thickness, 9H tempered



•
  Surface Technology: Non-glare, 25% haze, Etched-AG Technology



•
  Sensors: Ambient light sensor, Ambient color temperature sensor



•
  Eyes Care: TœV Flicker Free, TœV Low Blue Light



•
  Refresh Rate: 60Hz



•
  Response Time: 6.5 ms



•
  Backlight Unit: DLED



•
  Backlight Life (typ.): 60,000 Hours


Touch System

•
  Touch Technology: Infrared recognition



•
  Touch Points: 50



•
  Object Recognition Range: 1.5 mm



•
  Accuracy: ± 0.5 mm



•
  Response Time: 2.5 ms



•
  Writing Height: 1 mm



•
  System: MAXHUB Think&Ink (Direct Annotation, Palm Rejection, Sharp Erase, Erase & Write Simultaneously, Multi-level Object Recognition, Single Pen Dual Color)



•
  OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome


Connectivity

•
  Input:



  •
    HDMI IN — 4 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC, ARC (HDMI 1)



  •
    USB 2.0 — 1 — For system upgrades



  •
    USB 3.0 — 4 — Front — 2 + Rear — 2



  •
    Touch — 2



  •
    USB Type-C — 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD; Rear: 100W PD)



  •
    DP IN — 1 — 4K@30Hz, HDCP 1.4/2.2/2.3



  •
    AUDIO IN — 1 — 3.5 mm jack



  •
    RS232 — 1 — Baud rate 9600



  •
    RJ45 IN — 1 — 10M/100M/1000Mbps



  •
    TF Card Port — 1 — Expandable up to 1TB







•
  Output:



  •
    HDMI OUT — 1 — Up to 4K@60Hz



  •
    AUDIO OUT — 1 — 3.5 mm jack



  •
    USB Type-C — 1 — Type-C OUT



  •
    SPDIF — 1 — PCM output format



  •
    RJ45 OUT — 1 — 10M/100M/1000Mbps







•
  OPS Slot: Module slot — 1



•
  Wi-Fi Module Slot: Module slot — 1 (Wi-Fi Module SI07B)



•
  Wireless: Wi-Fi 6 (802.11ac/b/g/n/a/ax, 2.4GHz/5GHz), Bluetooth 5.2


Built-in System

•
  Operating System: Android 15.0



•
  Certification: Google EDLA



•
  RAM: 16 GB



•
  ROM: 256 GB



•
  SoC Process: 8 nm



•
  CPU: A76—4 + A55—4 Octa-core, 2.4GHz



•
  GPU: Mali-G610 MP4



•
  NPU: 6 TOPS


Camera

•
  Quantity: 1



•
  Resolution: 50MP



•
  FOV: 115° DFOV, 101° HFOV, 85° VFOV



•
  Features: Manual Mode, Auto Framing, Speaker Tracking, Person Counting, Random Election


Audio

•
  Audio System: SkyWave Sound System



•
  Sound Channel: 2.2



•
  Speaker Power: 2—8W + 2—18W (output), 2—12W + 2—25W (maximum)



•
  Sound Pressure Level: 88 dB (1W, 1m)



•
  Microphone: 8-mic array



•
  Pick-up Angle: 180°



•
  Pick-up Range: 0 ~ 12 m



•
  Features: Intelligent Audio Fence, AI Spatial Sound, AEC (Auto Echo Cancellation), ANC (AI Noise Cancellation), AGC (Auto Gain Control)


Power

•
  Power Supply: AC 100~240V 50/60Hz



•
  Standby Consumption: 0.5W



•
  Typical Consumption: 70W



•
  Power Saving: Energy Star Certification


Physical Specification

•
  Dimension (L — H — D): 1488.4 — 909.4 — 97 mm



•
  Shipping Dimension (L — H — D): 1628 — 1020 — 185 mm



•
  Thickness (Machine + Wall Mount): 122 mm



•
  Wall-hanging Screw: M7 — 56 mm



•
  VESA: No



•
  Net Weight: 30.7 kg



•
  Gross Weight: 40.5 kg


Environment

•
  Operating Temperature: 0°C ~ 40°C



•
  Storage Temperature: -20°C ~ 60°C



•
  Operating Humidity: 10% ~ 90% RH



•
  Storage Humidity: 10% ~ 90% RH



•
  Altitude: Below 5000 meters



•
  Dust Resistance: IP5X-rated


Accessories

•
  Power Cord (3 m — 1)



•
  HDMI Cable (3 m — 1)



•
  Remote Control — 1



•
  Stylus SW13F — 2



•
  Display Bracket — 2



•
  Wall Mount Bracket WIB9060K — 1



•
  Wi-Fi Module SI07B — 1


Optional Module

•
  USB Camera UC W31



•
  PTZ Camera UC P30



•
  Video Bar UC S07



•
  OPS Module OPS62A/OPS72A



•
  Smart Pen SP30B



•
  Sensor Box WL10C, WL20



•
  Mobile Stand ST33M, ST23B, EST09


Software System

•
  OS: MAXHUB EDU OS V4



•
  Whiteboard Tool: MAXHUB Class Pro



•
  Screen Sharing: MAXHUB Connect
