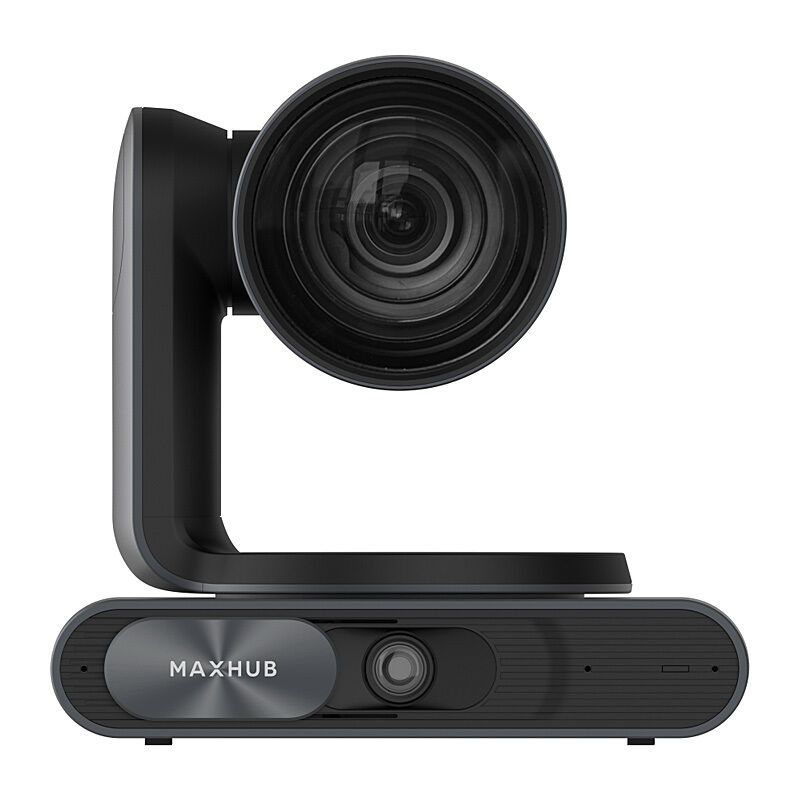

About MAXHUB P30 4K PTZ Camera

4K PTZ, 12x optical zoom, 90 FOV, dual camera system, auto framing, speaker tracking, presenter tracking, 10 preset, IR remote, support POE, Teams certified

Features

•
  Dual Lens:


  4K Camera 12x Optical Zoom AI Powered. 120° FOV wide angle lens detects participants in real-time while directing the PTZ Camera with best view.



•



  12x Optical Zoom:


  The 12X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality output.






•
  AI Power:


  Auto Framing


  Speaker Tracking


  Presenter Tracking



•



  Manage And Control


  Remotely manage and control via MAXHUB Pivot or room control on MAXHUB Microsoft Teams Rooms products.






•
  Privacy Guarantee:


  When not in use, PTZ camera tilts downward and electric privacy cover would remain closed.



•



  Flexible Installation:


  With PoE+, a single Cat5e/Cat6e cable supports IP Streaming and power.





Specifications:

Dual Camera

•
  PTZ Camera



  •
    Image sensor: Sony 4K , 8.42M pixel



  •
    Video outputs (USB 3.0): H.264/MJEPG up to

    2160p@30fps,



    YUV up to 1080p@30fps



  •
    Video outputs (USB 2.0) H.264/MJEPG up to 1080p@30fps ;



  •
    Video outputs (HDMI) H.264/MJEPG up to 2160@30fps ;



  •
    Video outputs (IP) H.264/MJEPG up to 2160p@30fps (first stream);


    H.264/MJEPG up to 72p@30fps (second stream)



  •
    Optical zoom 12 x



  •
    Digital zoom 3 x



  •
    FOV: DFOV 90°/ HFOV 80°/ VFOV 49.2°



  •
    Lens focal length: 4.8mm ~ 57.8mm



  •
    Lens F#: 1.8 ~ 3.6



  •
    Motorized Pan & tilt: Pan: ±170°, Tilt: ±90°;



  •
    Preset number: 10 via IR remote, 128 via RS232



  •
    Image flip and image mirror: Yes







•
  Panoramic Camera



  •
    8MP, Sony Sensor



  •
    120° DFOV



  •
    Manual Tilt: ± 10°



  •
    Electric Privacy Cover



  •
    Camera LED Indicator






AI Features

•
  Auto Framing



•
  Speaker Tracking



•
  Presenter Tracking


IO Ports

•
  USB 2.0 Type-A ×1 (host)



•
  Mic in (3.5mm) ×1



•
  HDMI 1.4 out ×1



•
  RJ45 ×1 (IP Steam, POE+)



•
  RS232 ×1 (VISCA/Pelco-D/Pelco-P protocol)



•
  1 × Security Lock Slot


What’s In The Package

•
  UC P30 unit × 1



•
  USB Cable C-A (5m) × 1



•
  Power Adapter × 1



•
  Remote Control × 1



•
  USB 3.0 Type-C ×1 (Device)



•
  Mounting kits × 1



•
  Quick Start guide × 1
