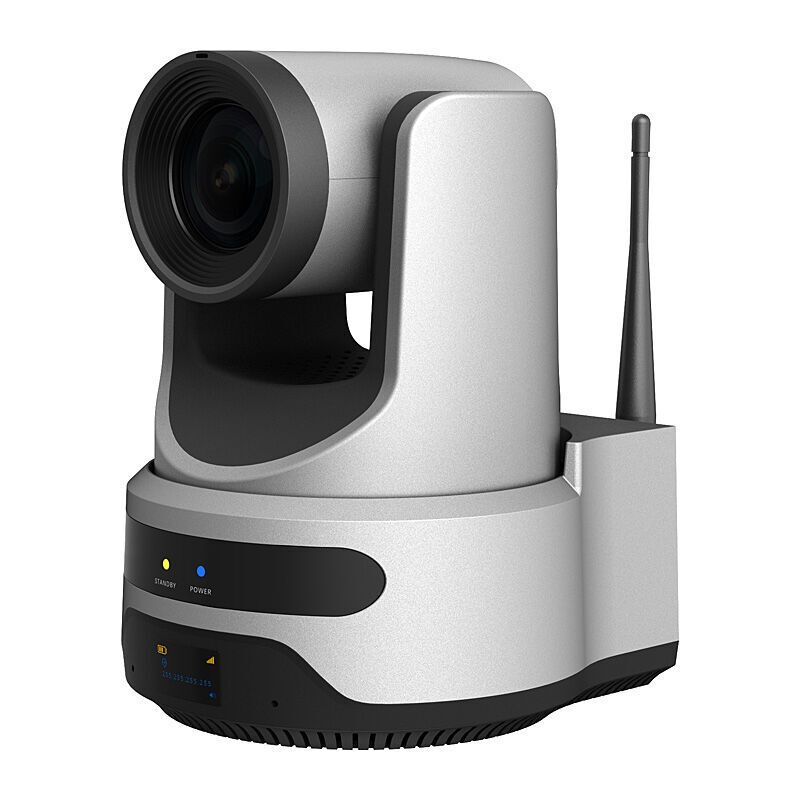

About MAXHUB Moblile Capture PTZ x2

MAXHUB Moblile Capture PTZ camera x2

Features

•

  40x Hybrid Zoom

  – Capture every detail clearly, even from a distance



•

  Long-lasting Battery Life

  – Designed for extended recording sessions



•

  Built-in Microphone

  – Integrated array microphone delivers clear, crisp audio within a 5 metre range



•

  Intelligent Presenter Tracking

  – Automatically follows the speaker to keep them in frame; simply click to select your target


Specifications

Camera

•
  Sensor Type: 1/2.8 inch, CMOS, 8.42 million pixels



•
  Scanning Method: Progressive



•
  Lens Focal Length: f = 6.25 mm ~ 125 mm, F1.58 ~ F3.95



•
  Auto Focus: Supported



•
  Zoom: 40x hybrid zoom, 20x optical zoom



•
  Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)



•
  Electronic Shutter: 1/30s ~ 1/10000s



•
  White Balance: Auto, indoor, outdoor, one-touch, manual, specified color temperature



•
  Digital Noise Reduction: 2D, 3D



•
  Signal to Noise Ratio: ≥ 55dB



•
  FOV: HFOV 60° ~ 3.5°, VFOV 35.7° ~ 2.0°



•
  Rotation Range: Horizontal ±170°, Vertical -30° ~ +90°



•
  Rotation Speed Range: Horizontal 2.7° ~ 35.7°/s, Vertical 2.7° ~ 31.5°/s



•
  Horizontal & Vertical Flip: Supported



•
  Features: Auto ICR, Backlight Compensation, Low Light Mode, Image Freeze



•
  Preset Positions: 255, Accuracy 0.1°


USB Features

•
  Supported Operating Systems: Windows7/8/10/11, Mac OS X, Linux, Android



•
  Color Space: YUY2 / MJPEG / H.264



•
  Video Format: YUY2 (2560×1440@30fps), MJPEG (3840×2160@30fps), H.264 AVC (3840×2160@30fps)



•
  USB Audio: Supported



•
  USB Video Communication Protocol: UVC 1.1



•
  UVC PTZ Control: Supported


Network Features

•
  Video Coding Standard: H.264 / H.265 / MJPEG



•
  Video Stream: First, Second Stream



•
  First Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360



•
  Second Stream Resolution: 1920×1080, 1280×720, 1024×576, 720×576, 720×480, 720×408, 640×360, 480×270, 320×240, 320×180



•
  Video Bitrate: 32 Kbps ~ 102400 Kbps



•
  Bitrate Control: Variable Bitrate, Fixed Bitrate



•
  Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps



•
  Audio Compression Standard: AAC



•
  Audio Bitrate: 96 Kbps, 128 Kbps, 256 Kbps



•
  Protocol Support: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc.


I/O Port

•
  USB Type-C × 1



•
  USB 3.0



•
  HDMI Out × 1 (HDMI 1.4b)



•
  RJ45 × 1 — 10M/100M adaptive ethernet port



•
  Line In × 1 — 3.5 mm audio interface



•
  RS485 × 1 — 3-pin Phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol



•
  Power Port × 1 — JEITA type (DC In 12V)



•
  Button × 2 — Reset button, Power button


Electrical Parameters

•
  Input Voltage: DC 12V



•
  Input Current: 3.0A



•
  Battery: 9480 mAH (typ.)



•
  Power Consumption: 12W (max)


Physical Parameters

•
  Product Dimension (W × D × H): 295 × 245 × 254 mm



•
  Shipping Dimension (L × W × H):



  •
    1 pc: 295 × 245 × 254 mm



  •
    4 pcs: 615 × 515 × 273 mm







•
  Net Weight: 1.9 Kg



•
  Gross Weight:



  •
    1 pc: 2.94 Kg



  •
    4 pcs: 13.24 Kg






Accessories

•
  Power Adapter × 1



•
  Power Cable × 1



•
  Quick Start Guide × 1


Environmental Conditions

•
  Operating Temperature: -10°C ~ 40°C



•
  Storage Temperature: -40°C ~ 60°C



•
  Operating Humidity: 10% ~ 90% RH



•
  Storage Humidity: 10% ~ 90% RH



•
  Altitude: Below 5000 meters
