About MAXHUB E series E8630 86''

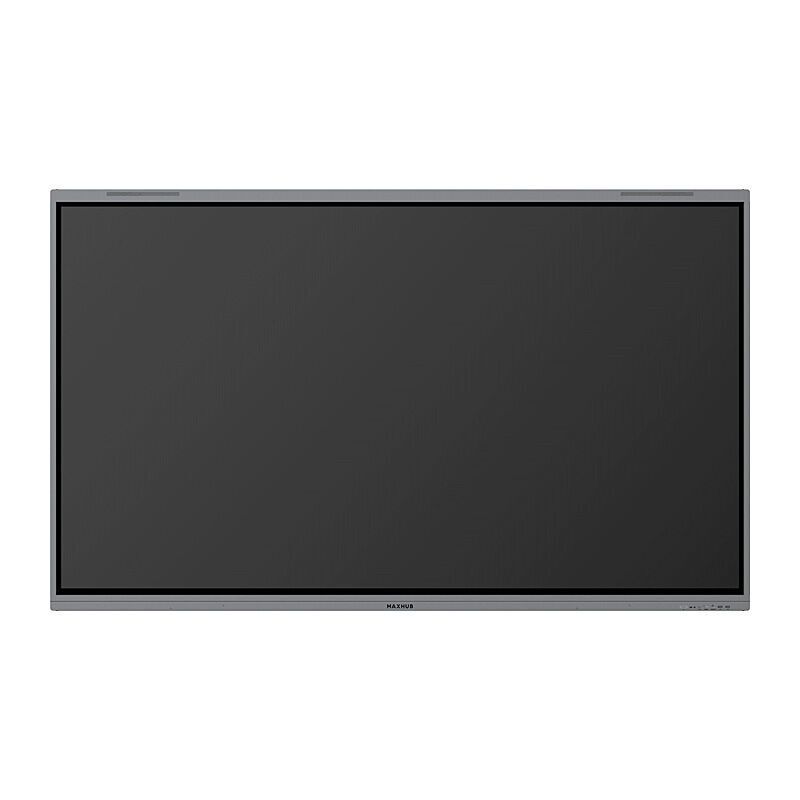

MAXHUB E series E8630 86''

Features

•

  Prominent Display

  – 4K display, 10 bit color, high color accuracy



•

  SkyWave Sound System

  – 2.2 channel speaker, 2×8W + 2×18W output



•

  Peak Performance

  – Octa?core CPU, independent NPU, 8GB RAM, 128GB ROM



•

  Precious Touch

  – MAXHUB Think&Ink Technology, 40 touch points, ±1.5 mm touch accuracy



•

  Classroom Care

  – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification



•

  Unparalleled Compatibility

  – Android 14 system, Google EDLA certificated



•

  Convenient Connectivity

  – Full-function USB?C integrating 65W PD, video, audio, touch, and internet access features



•

  Comprehensive Software Suite

  – MAXHUB EDU OS V4 with extensive education?tailored applications


Specifications

Display

•
  Model: E8630



•
  Diagonal Size: 86 inch



•
  Display Area: 1895.04 (H) × 1065.96 (V) mm



•
  Screen Level: A-Level



•
  Brightness: 400 nits (typ.), 450 nits (max.)



•
  Contrast Ratio: 3,000:1 (typ.), 50,000:1 (dynamic)



•
  Color Depth: 1.07B (10bit)



•
  Color Gamut (typ.): 98% sRGB



•
  Color Accuracy: ΔE ≤ 1



•
  Surface Technology: Anti-glare, 25% haze



•
  Aspect Ratio: 16:9



•
  Resolution: 3840 × 2160



•
  Panel Type: IPS



•
  Viewing Angle: 178° (H/V)



•
  Response Time: 8 ms



•
  Backlight Unit: DLED



•
  Backlight Life (typ.): ≥ 60,000 Hours



•
  Refresh Rate: 60Hz



•
  Glass: Zero parallax, 3 mm thickness, 9H tempered



•
  Sensors: Ambient light sensor, Ambient color temperature sensor



•
  Eyes Care: TÜV Flicker Free, TÜV Low Blue Light


Built-in System

•
  Operating System: Android 14.0



•
  Certification: Google EDLA



•
  RAM: 8GB



•
  ROM: 128GB



•
  SoC Process: 8 nm



•
  CPU: A72×4 + A53×4 octa-core, 2.2GHz



•
  GPU: Mali G52 MC3



•
  NPU: 6 TOPS


Touch System

•
  Technology: Infrared recognition



•
  Touch Points: 40



•
  Object Recognition Range: 3 mm



•
  Accuracy: ± 1.5 mm



•
  Response Time: ≤ 5 ms



•
  Writing Height: ≤ 2 mm



•
  System: MAXHUB Think&Ink (Touch Return)



•
  OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome


Connectivity

•
  OPS Slot — For system upgrades



•
  HDMI IN × 3 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC



•
  DP IN × 1 — 4K@60Hz, HDCP 1.4/2.2/2.3



•
  USB 2.0 × 1



•
  USB 3.0 × 4



•
  Touch × 2



•
  AUDIO IN × 1 — 3.5 mm Jack



•
  VGA IN × 1 — Up to 1080P@60Hz



•
  RS232 × 1 — Baud rate 9600



•
  RJ45 IN × 1 — 10M/100M/1000Mbps



•
  TF Card Port × 1 — Expandable up to 1TB



•
  USB Type-C × 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD, Rear: 15W PD)



•
  HDMI OUT × 1 — Up to 4K@60Hz



•
  AUDIO OUT × 1 — 3.5 mm Jack



•
  SPDIF × 1 — PCM output format



•
  RJ45 OUT × 1 — 10M/100M/1000Mbps



•
  Front USB: 2 (USB 2.0 × 1, USB 3.0 × 1)



•
  Rear USB: 2 (USB 3.0 × 2)



•
  Wireless: Bluetooth, Wi-Fi 6 (802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz)



•
  Module Slots: 2 (Wi-Fi Module SI07B supported)


Audio

•
  Audio System: SkyWave Sound System



•
  Sound Channel: 2.2



•
  Speaker Power: 2×8W + 2×18W (output), 2×12W + 2×25W (maximum)



•
  Sound Pressure Level: 88 dB (1W, 1m)


Physical Specification

•
  Dimension (L×H×D): 1959×1179×100 mm



•
  Shipping Dimension (L×H×D): 2110×1305×225 mm



•
  Thickness (Machine + Wall Mount): 129 mm (WIB9060H)



•
  Wall-hanging Screw: M4×14 mm VESA



•
  Net Weight: 52.45 kg



•
  Gross Weight: 69.00 kg


Power

•
  Power Supply: AC 100-240V~ 50/60 Hz 4.5A



•
  Standby Consumption: ≤ 0.5W



•
  Typical Consumption: 190W



•
  Power Saving: Energy Star Certification


Optional Modules

•
  USB Camera



•
  Video Bar



•
  OPS Module (OPS62A/OPS72A)



•
  Sensor Box UC W31 / UC S07



•
  WL10C



•
  Mobile Stand (ST33M, ST23G, EST09)


Environment

•
  Operating Temperature: 0°–40°



•
  Operating Humidity: 10%–90% RH



•
  Storage Temperature: -20°–60°



•
  Storage Humidity: 10%–90% RH



•
  Altitude: Below 5000 meters



•
  Dust Resistance: IP5X-rated


Software System

•
  OS: MAXHUB EDU OS V4



•
  Screen Sharing



•
  Whiteboard Tool



•
  Device Management



•
  MAXHUB Connect, MAXHUB Class Pro, MAXHUB Pivot



•
  Google Apps: Google Play, Google Drive, Google Meet, Google Maps, YouTube



•
  Other Apps: Browser, Cloud Drive, Note, Palette


Accessories

•
  Power Cord (3 m × 1)



•
  HDMI Cable (3 m × 1)



•
  Remote Control × 1



•
  Stylus × 2



•
  Display Bracket × 2



•
  Wall Mount Bracket WIB9060H × 1



•
  Wi-Fi Module SI07B × 1
