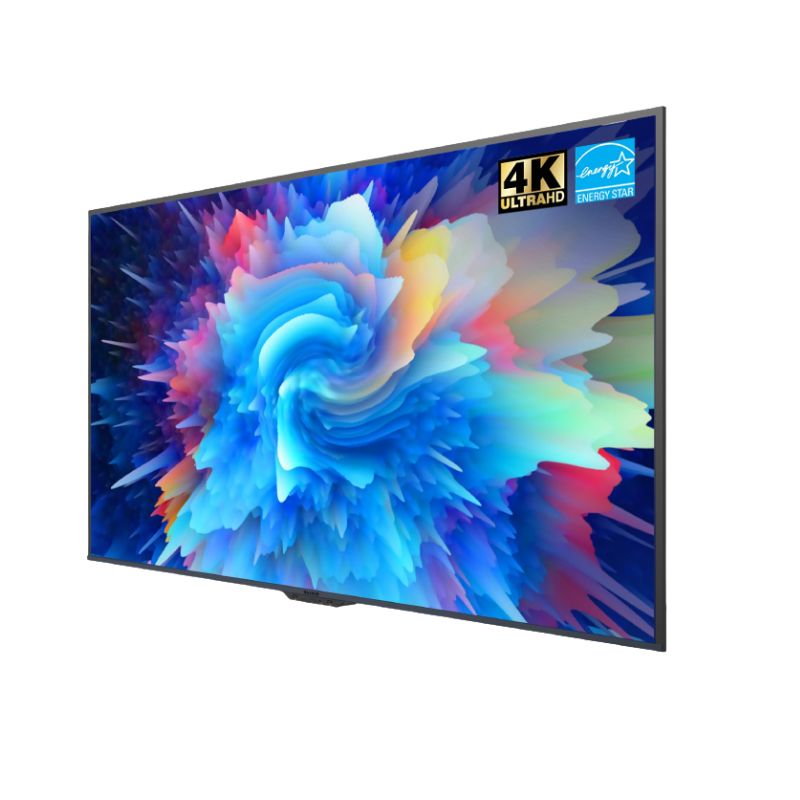

About MAXHUB Commercial CMD 65

MAXHUB Commercial CMD, 65, 4K Display , Anti-Glare , Android 11.0 , 4G RAM , 32G Storage , WiFi-6 (Wi-Fi Module) , 2x12W Built-in Speaker , Orientation : Landscape , 7x16 operating hours

Features

Maxhub-CMD Commercial 65″LCD Display 4K res ND65CMD

A 4K commercial display, equipped with non-glare technology and conformal coating – ideal for meeting rooms and commercial settings.

•
  65'' 4K UHD



•
  450 nit



•
  Wireless screen sharing



•
  Display control through IP or RS232 protocol



•
  Manage through cloud based MAXHUB PIVOT



•
  2x 10W Built-in speakers



•
  Commercial level design of hardware



•
  Energy Star 8.0 Certified, ErP Certified


Specifications:

Display

•
  Screen Size: 65''



•
  Panel Type: VA



•
  Backlight: DLED



•
  Display Area: 1428.48(H) × 803.52(V)mm



•
  Pixel Pitch: 0.372 × 0.372mm



•
  Resolution: 3840(H) × 2160(V)



•
  Contrast Ratio (Typ.): 6000:1



•
  Aspect Ratio: 16:9



•
  Refresh Rate: 60Hz



•
  Brightness (Typ.): 300 cd/m2



•
  Operation Hours (Day × Hours): 7 × 16H



•
  Life Time: = 50000 Hours



•
  Display Color: 1.07B (8bit+FRC)



•
  Color Gamut (Typ.): NTSC 72%



•
  Viewing Angle (H × V): 178°



•
  Response Time: 6.5ms


System

•
  System: Android 11.0



•
  CPU:A73 × 4 + A53 × 4



•
  GPU: Mali G52MP8



•
  RAM: 4G



•
  ROM: 32G


Speaker

•
  Channel: 2



•
  Power: 2 × 10W


Power

•
  Power Supply: 100-240V~50/60Hz



•
  Standby Power Consumption: = 0.5W



•
  Power Consumption (Typ.): 153W



•
  Power Consumption (Max.): 257W


Features

•
  HDMI CEC: Yes



•
  RS232/IP Protocol to control: Yes



•
  Built-In Media Player: Yes



•
  Device Management System: Yes



•
  Screen Share: Yes



•
  Channel memory: Yes



•
  One-key black screen: Yes


Connectivity

•
  HDMI IN (2.0): 2



•
  USB 2.0: 1



•
  USB 3.0: 2 ( Front Panel)



•
  USB Type-C: 1 ( PD 65W, Front Panel )



•
  Touch 2.0: 1



•
  AUDIO IN: 1



•
  AUDIO OUT: 1



•
  RS232: 1



•
  RJ45 IN: 1


Wi-Fi: AP + STA


Wi-Fi 6 Support


2.4GHz & 5GHz


802.11ac/b/g/n/a/ax

Bluetooth: 5.2

Mechanical Specification

•
  Product Dimension (L×H×D): 1445.7 × 841.3 × 84.9mm



•
  Package Dimension (L×W×H): 1610 × 185 × 972mm



•
  Thickness of machine and wall mount: 116 mm (WIB6540B)



•
  Net Weight: 17kg



•
  Gross Weight: 27kg



•
  VESA: 400 × 200mm



•
  Wall-hanging Screw Spec: M6 × 30mm


Environmental Condition

•
  Operation Temperature: 0°C - 40°C



•
  Operation Humidity: 10% - 90%RH



•
  Storage Temperature: -20°C - 60°C



•
  Storage Humidity: 10% - 90%RH



•
  Altitude Below: 5000 meters


Certification

•
  Certification: Energy Star
