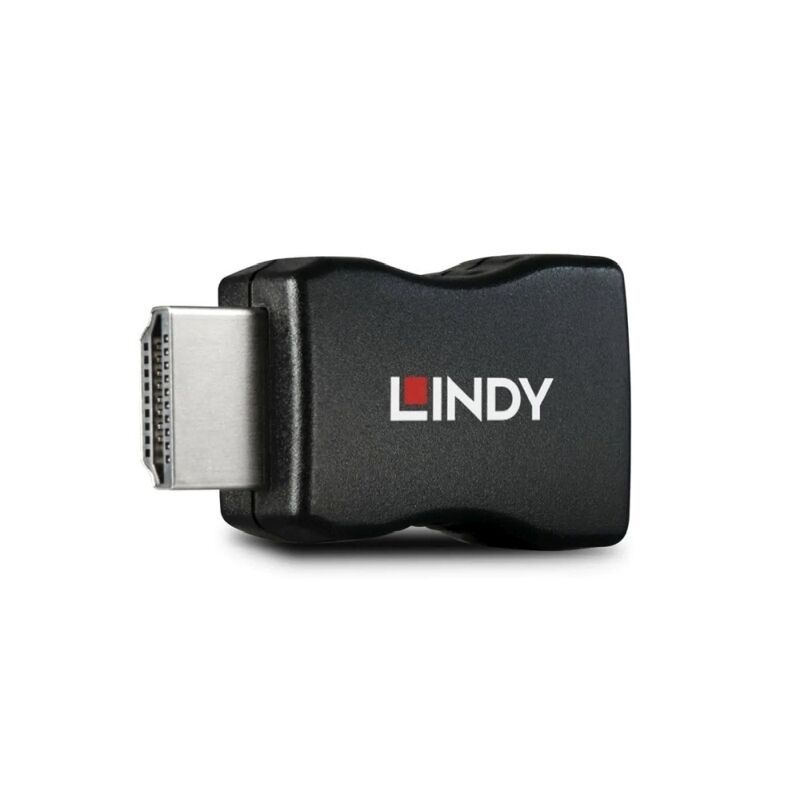

About Lindy HDMI 10.2G EDID Emulator

Lindy HDMI 2.0 18G EDID Emulator

Specifications:

•
  AV Interface: HDMI



•
  Interface Standard: HDMI 1.4



•
  Supported Bandwidth: 10.2Gbps



•
  Maximum Resolution: 3840 x 2160 @ 30Hz



•
  Audio EDID: LPCM 2-channel | 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz



•
  HDCP Support: 1.4



•
  Input: HDMI Type-A Male



•
  Output: HDMI Type-A Female



•
  Power: Via HDMI Source Interface



•
  Housing Material: ABS



•
  Dimensions: 24 x 43 x 12.3mm



•
  Weight: 0.008kg



•
  Warranty: 2 Years



•
  Certificated: CE | FCC | RoHS | REACH


Features:

•
  Continuously emulates HDMI EDID information



•
  Supports resolutions up to 3840x2160@30Hz including HDCP pass-through



•
  For use with 32120 for cloning



•
  Powered via HDMI Source Interface



•
  2 Year warranty


Video EDID Resolutions & Framerate:

•
  640 x 480p 60/72/75Hz



•
  720 x 400p 60Hz/70Hz



•
  720 x 480i 60Hz



•
  720 x 576p 50Hz



•
  720 x 576i 50Hz



•
  800 x 600p 56/60/72/75Hz



•
  832 x 624p 75Hz



•
  1024 x 768p 60/70/75Hz



•
  1280 x 800p 60Hz



•
  1280 x 720p 50/60Hz



•
  1152 x 864p 75Hz



•
  1152 x 870p 75Hz



•
  1280 x 1024p 60/75Hz



•
  1280 x 960p 60Hz



•
  1440 x 900p 60Hz



•
  1600 x 1200p 60Hz



•
  1680 x 1050p 60Hz



•
  1920 x 1080i/p 50/60Hz



•
  1920 x 1200p 60Hz



•
  2560 x 1440p 60Hz



•
  3840 x 2160p 24/30Hz
