About Lindy HDMI&IR Over IP Extender

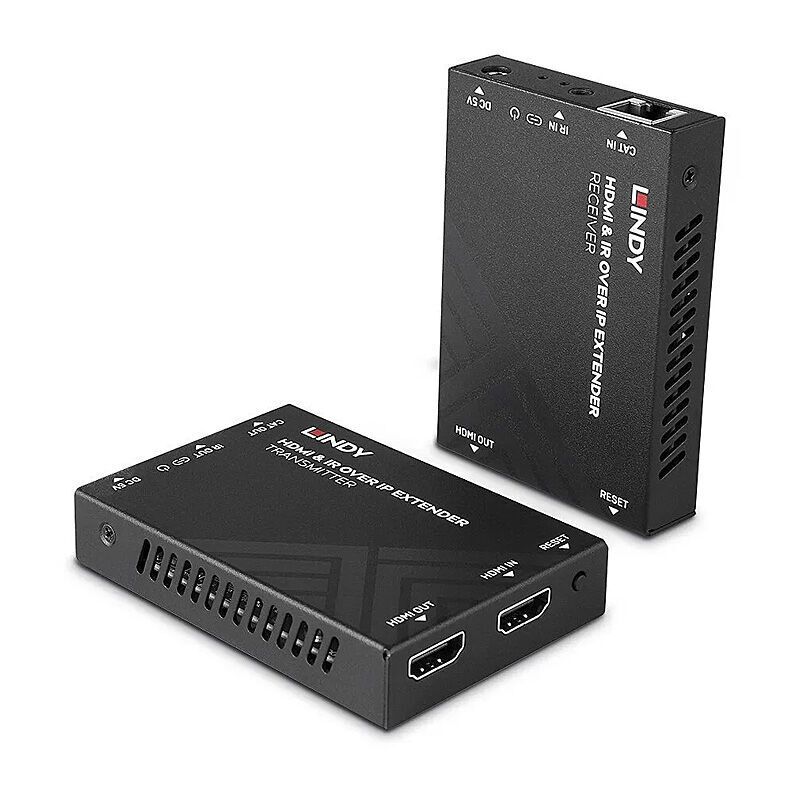

Lindy HDMI & IR over IP Extender Kit, Includes Transmitter & Receiver

Features

•
  Distribute HDMI signals 1-1 or 1-many as part of a networked installation



•
  Supports resolutions up to 1920x1080@60Hz



•
  Supports IR and HDMI loop-out port on the transmitter



•
  Add additional Receivers (38399) to the network for larger scale distribution



•
  2 year warranty


Specifications

•
  AV Interface: HDMI



•
  Interface Standard: HDMI 1.3



•
  Supported Bandwidth: 6.75 Gbps



•
  Maximum Distance: 150m (492.12ft)



•
  Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit



•
  HDCP Support: 1.4



•
  EDID: Pass Through



•
  Supported Audio: 2 Channel PCM



•
  IR Support: 20-60 kHz



•
  Transmission Protocol: IP (H.265 video compression)



•
  Transmission Medium: 1 x Cat.5e/6



•
  Chipset: SSC337DE - SSD203D



•
  Special Features: HDMI Loop Out port


Connectors

•
  Transmitter Input: HDMI (Female)



•
  Transmitter Output: HDMI (Female), RJ45 (Female), IR (Female)



•
  Receiver Input: RJ45 (Female), IR (Female)



•
  Receiver Ouput: HDMI (Female)



•
  Power: 5.5/2.1mm DC socket


Physical Properties

•
  Dimensions WxHxD: 88x61.2x16.5mm (3.46x2.41x0.65in) per unit



•
  Housing Material: Metal



•
  Nett Weight: 0.53kg (1.17lb)



•
  Operating Temperature: -10°C - 50°C (14°F - 122°F)



•
  Storage Temperature: -20°C - 60°C (-4°F - 140°F)



•
  Humidity: 20 - 90% RH (non-condensing)



•
  Power Requirements: 5VDC 1A



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Carton Box



•
  Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)



•
  Gross Weight: 0.73kg (1.61lb)



•
  Warranty (Years): 2



•
  Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
