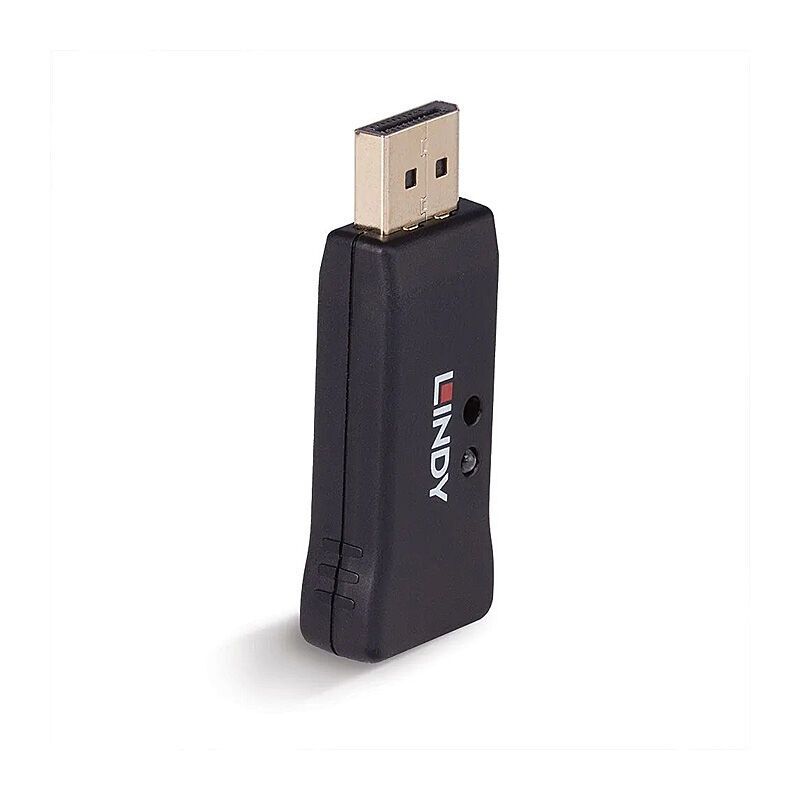

About Lindy DP 1.4 EDID Emulator

Lindy DisplayPort 1.4 EDID Emulator

Features

•
  Continuously emulates DisplayPort EDID information



•
  Supports resolutions up to 7680x4320@30Hz or 3840x2160@144Hz, with additional support for HDR



•
  Uses Cloned Data or Pre-stored resolutions/timings



•
  Headless connection (No monitor connection required)



•
  2 year warranty


Specifications

•
  AV Interface: DisplayPort



•
  Interface Standard: 1.4



•
  Supported Bandwidth: 32.4Gbps



•
  Maximum Resolution: 7680x4320@30Hz 4:4:4 8bit



•
  Video EDID:


  800x600 at 60Hz


  832x624 at 60Hz


  1024x768 at 60Hz


  1280x720 at 60Hz


  1280x960 at 60Hz


  1280x1024 at 60Hz


  1366x768 at 60Hz


  1440x900 at 60Hz


  1600x900 at 60Hz


  1600x1200 at 60Hz


  1680x1050 at 60Hz


  1920x1080 at 60Hz (Default Resolution)


  1920x1200 at 60Hz


  1920x2160 at 60Hz


  2048x1536 at 60Hz


  2560x1440 at 60Hz


  3200x1800 at 60Hz


  3840x1620 at 60Hz


  3840x2160 at 60Hz



•
  Audio EDID: LPCM 2-Channel, 16/20/24 bit depths at 32/44.1/48 kHz



•
  HDCP Support: 2.2



•
  Special Features: Headless connection (No Monitor connection required)


Connectors

•
  Input: DisplayPort Male



•
  Output: DisplayPort Female



•
  Power: Via DP Source Interface


Physical Properties

•
  Dimensions WxDxH: 25.17x51.59x12.05mm (0.99x2.03x0.47in)



•
  Housing Material: ABS



•
  Net Weight: 0.012kg (0.028lb)



•
  Operating Temperature: 0°C - 50°C (32°F - 122°F)



•
  Storage Temperature: -20°C - 70°C (-4°F - 176°F)



•
  Humidity: 0 - 90% RH (non-condensing)



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Polybag



•
  Packaging Dimensions: 136x138mm (5.35x5.43in)



•
  Gross Weight: 0.026kg (0.057lb)



•
  Warranty (Years): 2



•
  Product Compliance: CE, UKCA, FCC, RoHS & REACH
