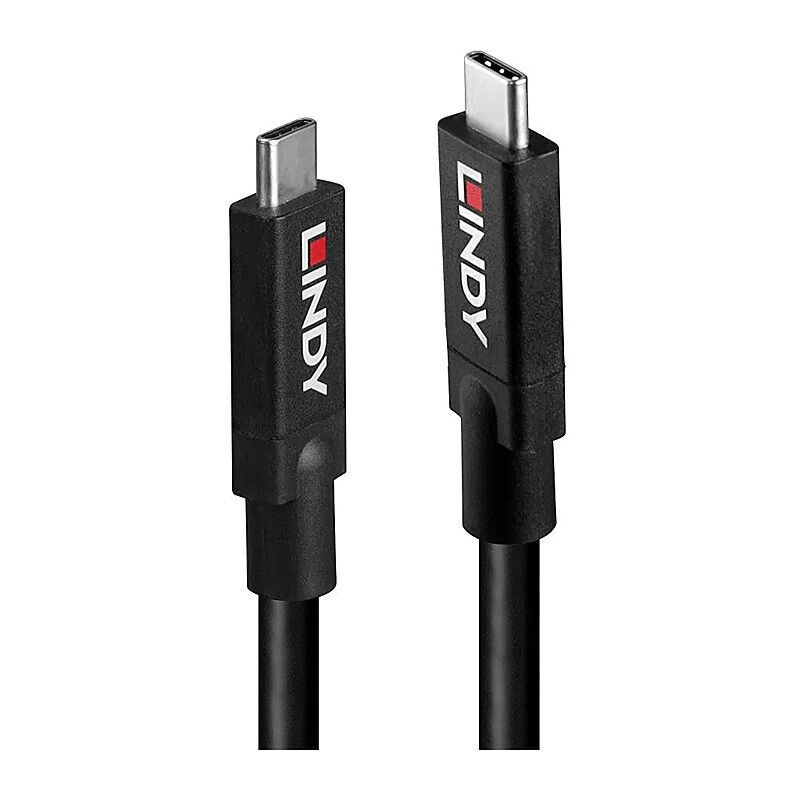

About Lindy 8m USB 3.2 Active Cable

Lindy 8m USB 3.2 Gen 2 20V 5A Active Cable Type C to C

Features

•
  8 metre USB 3.2 Gen 2 Active Cable for data and video extension



•
  Data transfer rates up to 10Gbps



•
  Supports DisplayPort 1.4 Alternate Mode



•
  Supports video resolutions up to UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz



•
  2 year warranty


Specifications

Connectors

•
  Connector A: USB Type C Male



•
  Connector B: USB Type C Male



•
  Power: PD 5A/20V (100W)



•
  Housing Material: TPE, PP



•
  Connector Plating: Nickel plated



•
  Pin Construction: Copper



•
  Pin Plating: Gold



•
  Dimensions (approx.) WxDxH: 41x12.4x8.8mm (1.61x0.49x0.35in) each


Cable Construction

•
  Standard: USB 3.2 / 3.1 Gen 2



•
  Colour: Black



•
  Type: Round



•
  Jacket Diameter: 6mm (0.24in)



•
  Jacket Material: TPE



•
  Conductor Material: Tinned Copper



•
  Conductor Gauge: 28AWG+32AWG+26AWG+20AWG



•
  Shielding: 80% Tinned Copper


Specifications

•
  Supported Bandwidth: 10Gbps



•
  Maximum Resolution: UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz



•
  Nominal Attenuation: -24.6Db@5GHz



•
  Minimum Bend Radius: 120mm (4.72in)



•
  Operating Temperature: 0°C to 40°C (32°F - 104°F)



•
  Storage Temperature: -10°C to 60°C (14°F - 140°F)


Miscellaneous

•
  Packaging Type: Polybag



•
  Packaging Dimensions: 236x255mm (9.29x10.04in)



•
  Net Weight: 0.5kg (1.1lb)



•
  Gross Weight: 0.516kg (1.135lb)



•
  Warranty (Years): 2



•
  Product Compliance: CE, FCC, RoHS & REACH, CP65
