About Lindy 40m HDMI2.0 18G Repeater

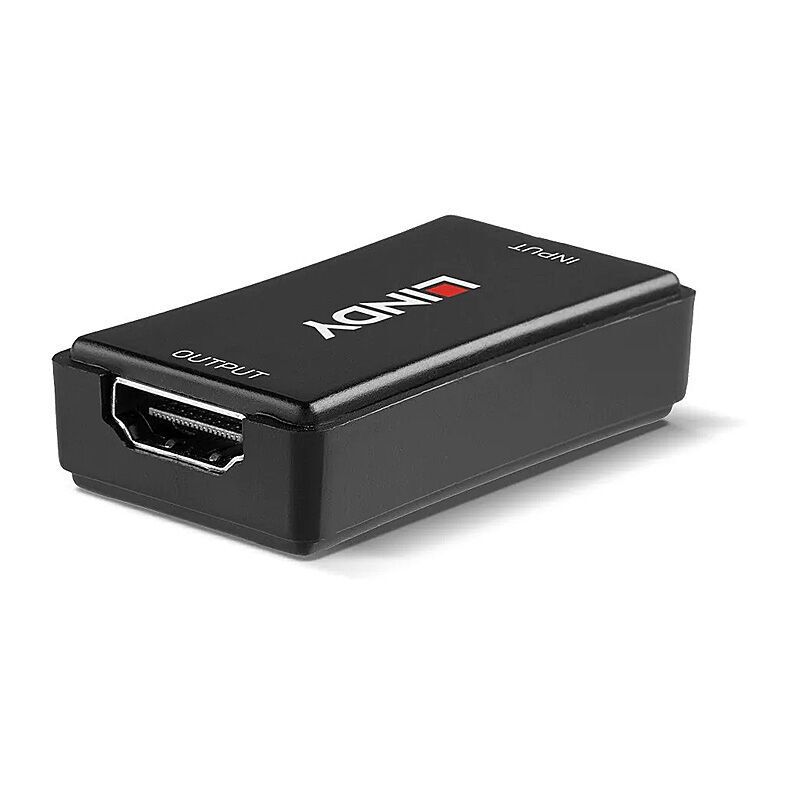

Lindy 40m HDMI 2.0 18G Repeater

Features

•
  Extends HDMI 2.0 18G signals over 50m



•
  Supports resolutions up to 3840x2160p@60Hz 4:4:4



•
  High Dynamic Range support for enhanced contrasts and 10-bit colour performance



•
  Minimalistic, compact design



•
  2 year warranty


Specifications

AV Interface

•
  AV Interface: HDMI



•
  Interface Standard: HDMI 2.0



•
  Supported Bandwidth: 18 Gbps



•
  Maximum Distance:





•
  40m (131.23ft) - 3840x2160@60Hz 4:2:0 8bit



•
  25m (82.02ft) - 3840x2160@60Hz 4:2:0 12bit



•
  20m (65.62ft) - 3840x2160@60Hz 4:4:4 8bit





•
  Maximum Input Distance:





•
  20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit



•
  15m (49.21ft) - 3840x2160@60Hz 4:2:0 12bit



•
  10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit





•
  Maximum Output Distance:





•
  20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit



•
  10m (32.81ft) - 3840x2160@60Hz 4:2:0 12bit



•
  10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit





•
  Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit



•
  HDCP Support: Pass-through



•
  Transmission Medium: 2 x HDMI Cable



•
  Special Features: -


Connectors

•
  Input: HDMI (Female)



•
  Output: HDMI (Female)



•
  Power: USB Micro B (Female) (optional)


Physical Properties

•
  Dimensions WxHxD: 28x51x13mm (1.1x2.01x0.51in)



•
  Housing Material: Metal



•
  Net Weight: 0.022kg (0.05lb)



•
  Operating Temperature: 0°C - 45°C (32°F - 113°F)



•
  Storage Temperature: -20°C - 60°C (-4°F - 140°F)



•
  Humidity: 20-90% RH (non-condensing)



•
  Power Requirements: -



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Polybag



•
  Packaging Dimensions: 13.5x12mm (0.53x0.47in)



•
  Gross Weight: 0.031kg (0.07lb)



•
  Warranty (Years): 2



•
  Certificated: CE, FCC, RoHS, REACH & California Proposition 65
