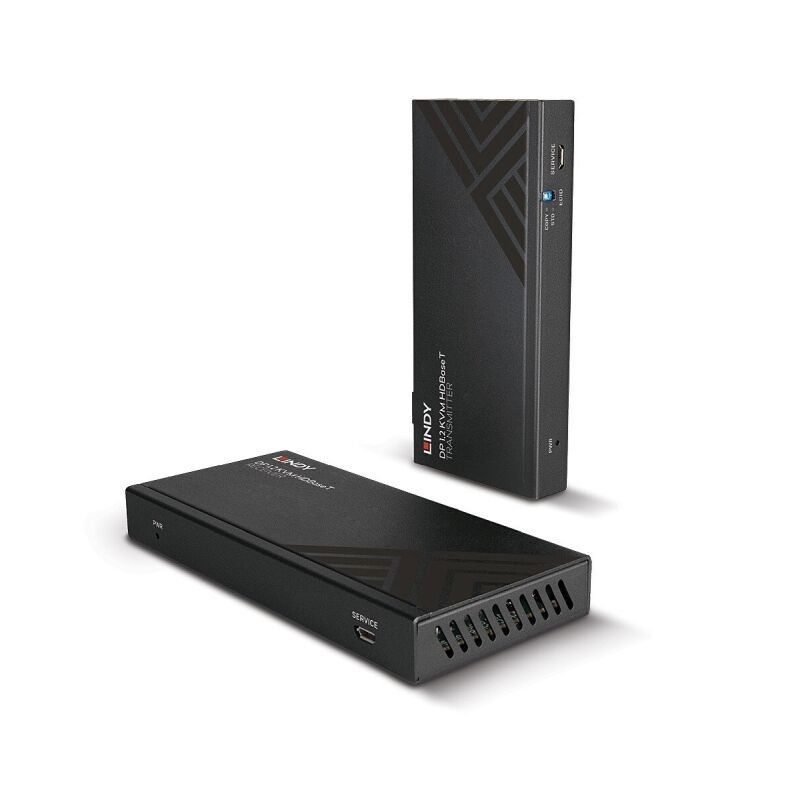

About Lindy 150m Cat.6 DisplayPort 1.2 USB IR & RS-232 HDBaseT KVM Extender

150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender

Specifications:

•
  AV Interface: DisplayPort



•
  Interface Standard: DisplayPort 1.2, USB 1.1



•
  Supported Bandwidth: 21.6Gbps



•
  Maximum Distance: 150m



•
  Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit



•
  HDCP Support: 2.2



•
  EDID Pass-Through: Dip Switch with copy function



•
  Supported Audio: Pass-Through



•
  Separate Audio Ports: -



•
  IR Support: 20 - 60KHz



•
  CEC Support: -



•
  Serial Interface: RS-232 Pass Through



•
  Transmission Protocol: HDBaseT



•
  Transmission Medium: Cat.6



•
  Chipset: VS010-A0



•
  Special Features: Bi-directional IR, RS-232 and PoC



•
  Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)



•
  Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)



•
  Receiver Input: RJ-45 (Female), 3.5mm IR (Female)



•
  Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)



•
  Bi-directional Ports: RS-232 3-Pin Terminal Block



•
  Power: 5.5/2.1mm



•
  Dimensions: 140x65x18mm each unit



•
  Housing Material: Metal



•
  Net Weight: 0.8kg



•
  Operating Temperature: 0C - 40C



•
  Storage Temperature: -20C - 60C



•
  Humidity: 20 - 90% RH (non-condensing)



•
  Power Requirements: 24VDC 1A



•
  Colour: Black



•
  Packaging Type: Carton Box



•
  Packaging Dimensions: 245x75x185mm



•
  Gross Weight: 1.02kg



•
  Warranty: 2-year



•
  Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65


Features:

•
  Extends DisplayPort signals up to 150m distances over Cat.6 network cable via HDBaseT technology



•
  Supports resolutions up to 4K@60Hz 4:4:4



•
  USB ports for mouse and keyboard connection



•
  Bi-directional IR & RS-232 control and PoC (Power over Cable) function



•
  2-year warranty
