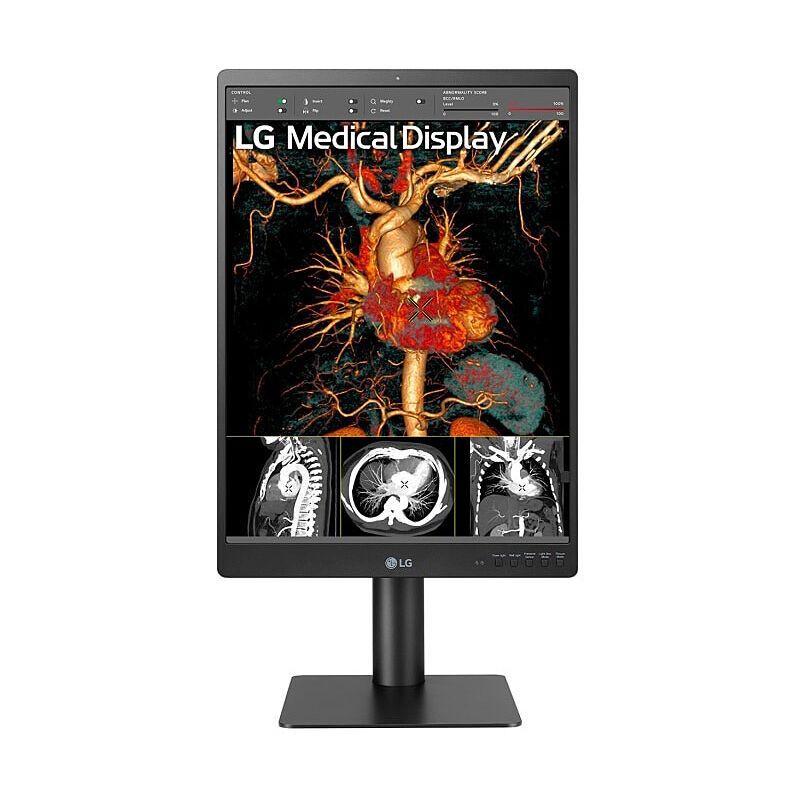

About LG 21'' Medical Monitor

LG 21'' 3MP IPS Diagnostic Monitor, 1100Nits, 5 Year Warranty

Features

•
  21.3-inch 3MP IPS Display



•
  1200cd/m² Brightness (Typ.)



•
  Pathology Mode, Focus View Mode



•
  Down light & Wall light



•
  Ergonomic Design


Specifications

Display

•
  Size [Inch]: 21.3



•
  Aspect Ratio: 3:4



•
  Response Time: 5ms (GtG at Faster)



•
  Resolution: 1536 × 2048



•
  Pixel Pitch [mm]: 0.2115 × 0.2115



•
  Viewing Angle (CR≥10): 178° (Right/Left), 178° (Up/Down)



•
  Brightness (Typ.) [cd/m²]: 1100



•
  Contrast Ratio (Typ.): 1800:1



•
  Colour Gamut (Typ.): NTSC 72%



•
  Colour Bit: 10bit



•
  Surface Treatment: Anti-glare, 3H


Connectivity

•
  DisplayPort: YES (In 2ea / Out 1ea)



•
  USB Downstream Port: YES (2ea / ver3.0)



•
  USB Upstream Port: YES (2ea / ver3.0)



•
  Daisy Chain: YES (3MP / 60Hz)


Features

•
  Smart Energy Saving: YES



•
  Flicker Safe: YES



•
  Black Stabiliser: YES



•
  Reader Mode: YES (Text mode)



•
  Super Resolution+: YES



•
  Auto Brightness: YES



•
  Brightness Stabilisation: YES



•
  Colour Temperature: 6500K / 7500K / 9300K / Manual (5000K ~ 10000K)



•
  DICOM Compliant: YES



•
  Focus View: YES



•
  Front Sensor: YES



•
  Hot Key: YES (5keys)



•
  HW Calibration: YES (PerfectLum)



•
  Lighting: YES (Down / Wall)



•
  Light Box Mode: YES



•
  Pathology Mode: YES



•
  Presence Sensor: YES


Mechanical

•
  Display Position Adjustments: Tilt / Height / Pivot



•
  Wall Mountable [mm]: 100 × 100



•
  Borderless Design: Normal



•
  Mechanical Power Switch: YES



•
  OneClick Stand: YES


Dimensions / Weights

•
  Dimension in Shipping (W × H × D): 567 × 187 × 652 mm



•
  Dimension with Stand (W × H × D): 343.1 × 640 × 234.6 mm



•
  Dimension without Stand (W × H × D): 343.1 × 484 × 72.4 mm



•
  Weight in Shipping: 10.5 kg



•
  Weight with Stand: 7 kg



•
  Weight without Stand: 5 kg


Power

•
  Power Consumption (DC Off): Less than 0.3W



•
  AC Input: 100-240Vac, 50/60Hz



•
  Type: External Power (Adapter)



•
  DC Output: 19V, 6.32A


Accessory

•
  Display Port: YES



•
  Adapter: YES



•
  Calibration Report (Paper): YES



•
  DVI-D: YES



•
  Power Cord: YES



•
  USB A to B: YES


Standard

•
  RoHS: YES



•
  CE: MDR



•
  EN (EN 60601-1 / EN 60601-1-2): YES



•
  EN (EN 60950-1 / EN 55032, 55024): YES



•
  FDA: 510(k) (Class II)



•
  GMP: YES



•
  IEC (IEC 60601-1 / IEC 60601-1-2): YES



•
  IEC (IEC 60950-1 / IEC 55032, 55024): YES



•
  ISO13485: YES



•
  MFDS: YES



•
  REACH: YES



•
  UL (cUL): YES



•
  WEEE: YES
