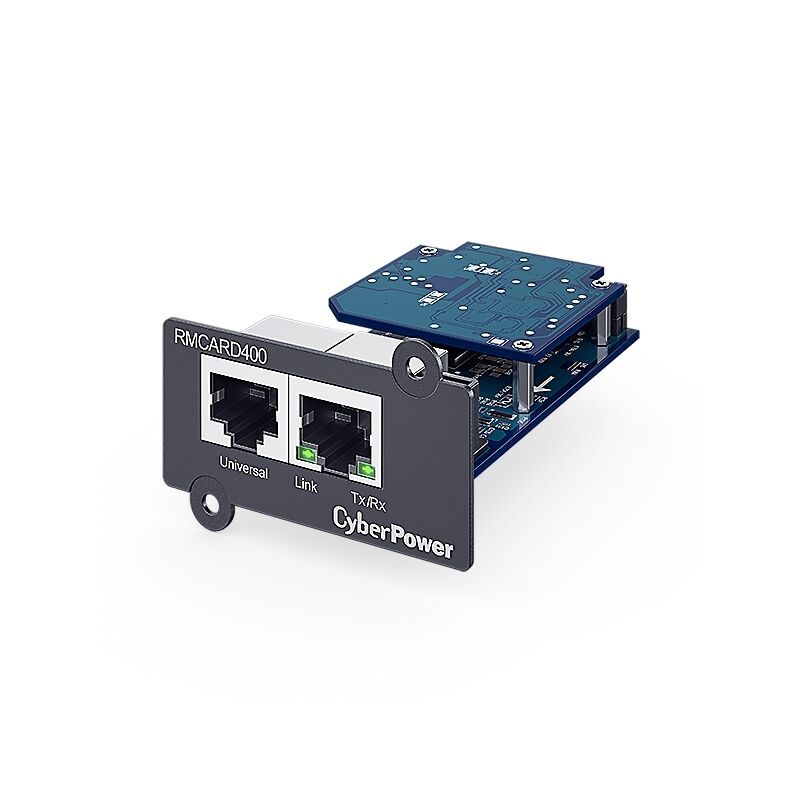

About Cyberpower RMCARD400 High-speed Data Transfer SNMP Card for Pro UPS

CyberPower RMCARD400 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the SNMP/HTTP network slot on the UPS, users can remotely monitor and control the devices in a back office or server room.

Specifications:

•
  LED Indicators: Tx/Rx, Link



•
  Connectivity Port: RJ45, RJ45 (for Environmental Sensor)



•
  Data Link Protocol: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T



•
  Support Plug-and-play Installation: Yes



•
  Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)



•
  User-upgradeable Firmware: Yes



•
  Remote Management: Web Browser, Command Line Interface, NMS



•
  Local Management: Web Interface, Command Line Interface



•
  Event Notifications: E-mail, SNMP Traps, Syslog, SMS



•
  Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog



•
  Authentication: RADIUS, LDAP, LDAPS, Windows AD, IEEE 802.1x



•
  Multi-language Supported: Chinese (Traditional), Chinese (Simplified), English, French, German, Spanish



•
  Environmental Sensor Supported: Yes



•
  Colour: Blue



•
  Dimensions: 54 x 36.1 x 76.5mm



•
  Weight: 48g



•
  Dimensions: 172 x 60 x 165mm



•
  Weight: 230g



•
  Operating Temperature: 0 - 40



•
  Operating Relative Humidity (Non-condensing) ( % ): 0 - 90



•
  Operating Elevation: 0-3,000 m



•
  Storage Temperature: -10 - 50



•
  Storage Relative Humidity (Non-condensing) ( % ): 0 - 95



•
  Storage Elevation: 0-15,000 m



•
  Certifications: CE, FCC Class A, RoHS


Features:

•
  High-speed Data Transmission



•
  User-friendly Web Interface



•
  Remotely Schedule Shutdown/ Start-up/ Reboot of the UPS



•
  Multi-language Supported



•
  Simultaneous Multi-User Login



•
  Secure Authentication



•
  Plug-and-play Installation



•
  Command Line Interface Supported



•
  Automatic Event Notifications



•
  User-upgradeable Firmware



•
  Syslog Supported



•
  Compatible with Environmental Sensor
