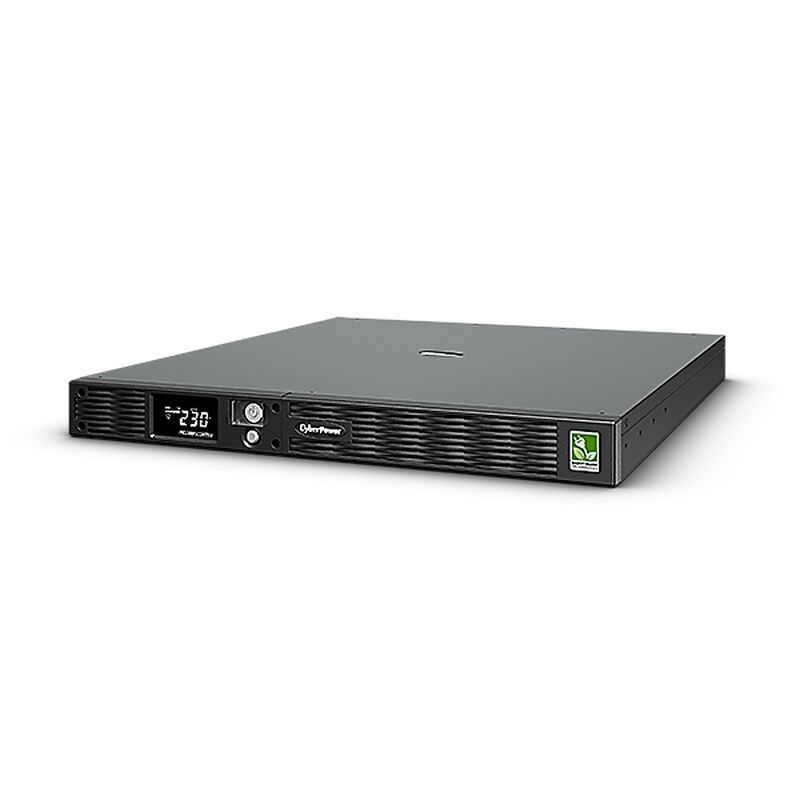

About Cyberpower PR1000ELCDRT1U Professional Smart App Rack UPS - 1000VA

CP Pro 1000VA Rack UPS

Specifications:

•
  Phase: Single Phase



•
  Form Factor: Rackmount | Tower



•
  UPS Topology: Line-interactive



•
  Energy Saving Technology: GreenPower UPS Bypass Technology



•
  Active PFC Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%



•
  Input Voltage Range ( Vac ): 160 - 286



•
  Adjustable Voltage Range ( Vac ): 150 - 300 Vac



•
  Input Frequency ( Hz ): 50 ± 3 | 60 ± 3



•
  Input Frequency Detection: Auto-sensing



•
  Input Connector Type: IEC C14



•
  Detachable Power Cord Plug Type: AU x 1



•
  Power Cord Length: 3m



•
  Capacity (VA): 1000



•
  Capacity (Watts): 800



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage(s) ( Vac ): 220 ± 5 % | 230 ± 5 % | 240 ± 5 %



•
  On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%



•
  Power Factor: 0.8



•
  Automatic Voltage Regulation (AVR): Double Boost | Single Buck



•
  Overload Protection: Internal Current Limiting



•
  Outlet(s) - Total: 6



•
  Outlet Type: IEC C13 x 6



•
  Outlet(s) - Battery & Surge Protected: 6



•
  Outlet(s) - Critical Load (CL): 2



•
  Outlet(s) - Non-Critical Load (NCL): 4



•
  Typical Transfer Time ( ms ): 4



•
  Runtime at Half Load ( min ): 12



•
  Runtime at Full Load ( min ): 3.1



•
  Typical Recharge Time ( Hours ): 6



•
  Start On Battery: Yes



•
  User-replaceable: Yes



•
  Hot-swappable: Yes



•
  Battery Cartridge (RBP): RBP0027



•
  Battery Cartridge (RBP) Quantity ( pcs ): 1



•
  Surge Suppression ( Joules ): 810



•
  EMI/RFI Filtration: Yes



•
  LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning



•
  LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting



•
  LED Indicators: Power On



•
  HID Compliant USB Port(s): 1



•
  Emergency Power Off (EPO) Port: Yes



•
  Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat



•
  Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  PowerPanel Cloud Service: Yes - 90 Days Free Trial



•
  Enclosure Construction: Metal



•
  Rackmount Ears: Yes



•
  Dimensions: 430 x 44 x 490mm



•
  Weight: 18kg



•
  Installed Rack Height ( U ): 1



•
  Online Thermal Dissipation ( BTU/hr ): 72



•
  Certifications: CE | C-Tick | EAC | RoHS



•
  Warranty: 3 Years


Features:

•
  Line-interactive UPS Topology



•
  Active PFC Compatible



•
  Automatic Voltage Regulation (AVR)



•
  Critical/Non-critical Load Outlets



•
  Surge and Spike Protection



•
  LCD Status Display



•
  Emergency Power Off (EPO) Port



•
  SNMP/HTTP Remote Management Capability (Optional)



•
  Energy Saving Technology



•
  Pure Sine Wave Output



•
  Overload Protection



•
  Hot-swappable Batteries



•
  EMI and RFI Filtration



•
  USB Connectivity Port



•
  PowerPanel Management Software



•
  Rack/Tower Convertible Configurations


What's in the box?

•
  1 x PR1000ELCDRT1U UPS



•
  1 x Rackmount Ears



•
  1 x Screw Kit



•
  1 x Power Cord



•
  1 x USB Cable



•
  1 x Serial Cable



•
  1 x EPO Cable



•
  1 x User Manual
