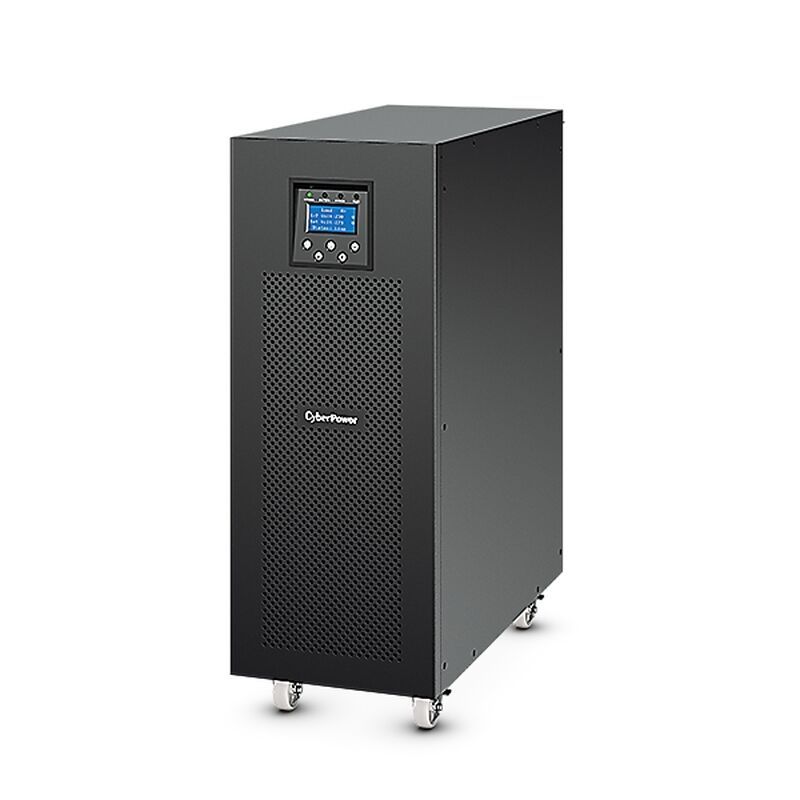

About Cyberpower OLS6000E Premium Smart App Tower UPS - 6000VA/5400W

CP 6000VA/5400W Tower UPS

Specifications:

•
  Phase: Single Phase



•
  Form Factor: Tower



•
  UPS Topology: Online Double Conversion



•
  Energy Saving Technology: Online ECO Mode Efficiency > 96%



•
  Active PFC Compatibility: Yes



•
  Generator Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 230



•
  Input Voltage Range ( Vac ): 110 - 276



•
  Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac



•
  Input Frequency ( Hz ): 50 ± 5 | 60 ± 6



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current ( A ): 27.3



•
  Input Power Factor: 0.99



•
  Input Connector Type: Hardwire Terminal Block



•
  Capacity (VA): 6000



•
  Capacity (Watts): 5400



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%



•
  Power Factor: 0.9



•
  ECO Mode Voltage Tolerance: ± 10 %



•
  Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse



•
  Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec



•
  Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec



•
  Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec



•
  Harmonic Distortion (Linear Load): THD?2%



•
  Harmonic Distortion (Non-linear Load): THD?5%



•
  Internal Bypass: Automatic Bypass, Manual Bypass



•
  Maintenance Bypass: Yes



•
  Outlet(s) - Total: 1



•
  Outlet Type: Hardwire Terminal Block x 1



•
  Typical Transfer Time ( ms ): 0



•
  Runtime at Half Load ( min ): 18



•
  Runtime at Full Load ( min ): 7



•
  Typical Recharge Time ( Hours ): 7



•
  Maximum Charging Current ( A ): 1



•
  Start On Battery: Yes



•
  Smart Battery Management (SBM): Yes



•
  User-replaceable: No



•
  Compatible Extended Battery Module (EBM): BPSE240V47A



•
  Max. EBM Quantity ( pcs ): 15



•
  Surge Suppression ( Joules ): 445



•
  EMI/RFI Filtration: Yes



•
  HID Compliant USB Port(s): 1



•
  Emergency Power Off (EPO) Port: Yes



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  Enclosure Construction: Metal



•
  Dimensions: 260 x 708 x 550mm



•
  Weight: 70kg



•
  Online Thermal Dissipation ( BTU/hr ): 1603



•
  Audible Noise at 1.5M from Surface of Unit: 60 dBA



•
  Certifications: CE / RoHS



•
  Warranty: 2 Years


Features:

•
  Online (Double Conversion) UPS Topology



•
  Generator Compatible



•
  Maintenance Bypass Switch



•
  Smart Battery Management (SBM)



•
  Surge and Spike Protection



•
  LCD Status Display



•
  PowerPanel Management Software



•
  ECO Mode



•
  Overload Protection



•
  Zero Transfer Time



•
  Extended Battery Module (EBM)



•
  EMI and RFI Filtration



•
  Emergency Power Off (EPO) Port



•
  SNMP/HTTP Remote Management Capability (Optional)


What's in the box?

•
  1 x OLS6000E UPS



•
  1 x Parallel Port Cover Plate



•
  1 x Terminal Cover



•
  1 x Terminal Splices



•
  1 x USB Cable



•
  1 x User's Manual
