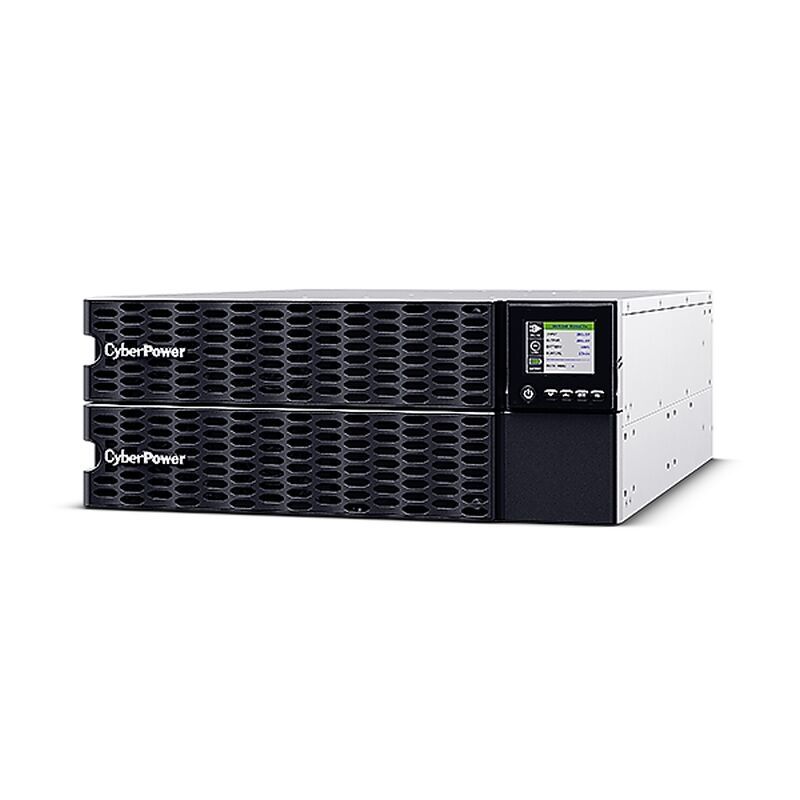

About Cyberpower OL10KERTHD Smart App Racktower UPS System

CP OL10000VA Rack Tower UPS

Specifications:

•
  Phase: Single Phase



•
  Form Factor: Rackmount / Tower



•
  UPS Topology: Online Double Conversion



•
  Energy Saving Technology: Online ECO Mode Efficiency > 98%



•
  Active PFC Compatibility: Yes



•
  Generator Compatibility: Yes



•
  Input Voltage Range: 200 - 240v



•
  Input Frequency: 50 ± 10 | 60 ± 10



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current: 54a



•
  Input Connector Type: Hardwire Terminal Block



•
  Output Capacity (VA): 10000



•
  Output Capacity (Watts): 10000



•
  On Battery Waveform: Pure Sine Wave



•
  Overload Protection: Internal Current Limiting / Circuit Breaker



•
  Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec



•
  Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec



•
  Overload Protection (Bypass Mode): Circuit Breaker



•
  Crest Factor: 3 : 1



•
  No. of Outlets: 11



•
  Battery Runtime at Half Load: 8.3 Mins



•
  Battery Runtime at Full Load: 2.4 Mins



•
  Typical Recharge Time: 4 Hours



•
  Start On Battery: Yes



•
  Smart Battery Management (SBM): Yes



•
  Built-in Battery Management Module: Yes



•
  User-replaceable: Yes - Qualified Personnel Only



•
  Hot-swappable: Yes



•
  Battery Type: Sealed Lead-acid



•
  Replacement Battery Pack (RBP): RBP0159



•
  Battery Voltage: 192v



•
  Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)



•
  Surge Suppression: 2430 Joules



•
  Serial Port: Combo (RS232 + Dry Contact)



•
  SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included



•
  Dimensions: 433 x 173 x 720mm



•
  Weight: 71.2kg



•
  Certifications: CE / EAC / RCM



•
  RoHS: Yes


Features:

•
  Online (Double Conversion) UPS Topology



•
  High Density Design



•
  High Output Power Factor



•
  Tiltable LCD Panel



•
  Surge and Spike Protection



•
  Controllable Outlet Groups



•
  Battery Management Technology



•
  Extended Battery Module (EBM)



•
  Emergency Power Off (EPO) Port



•
  PowerPanel Management Software



•
  ECO Mode



•
  Color LCD Panel



•
  Quick Charging Technology



•
  Automatically rotatable LCD



•
  Critical/Non-critical Load Outlets



•
  Generator Compatible



•
  Hot-swappable Batteries



•
  Smart Battery Management



•
  SNMP/HTTP Remote Management Capability
