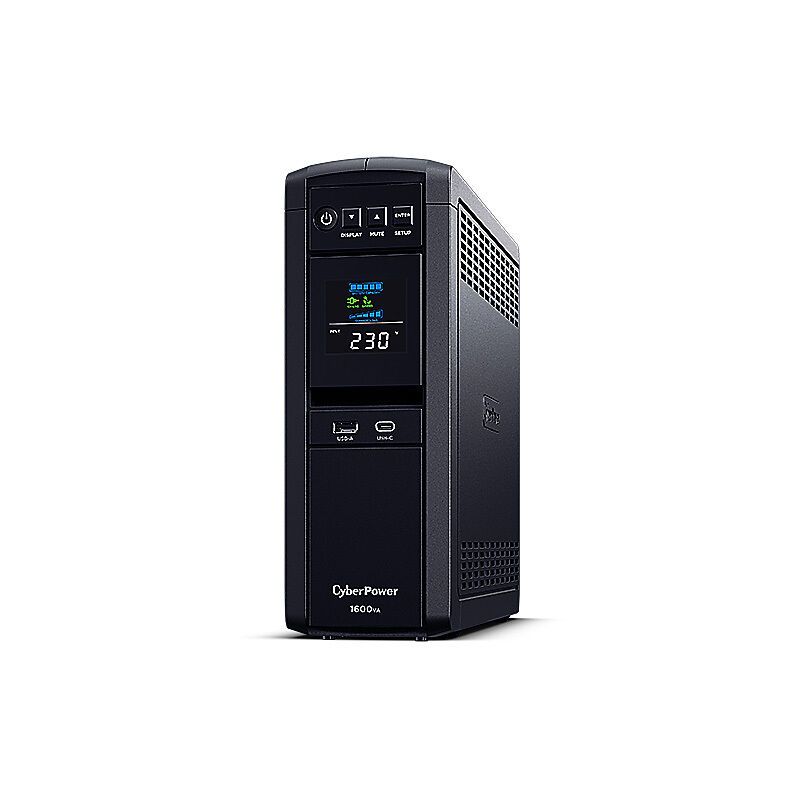

About Cyberpower CP1600EPFCLCD 6 Port Tower Form 1600VA UPS

CyberPowerPFC UPS with Pure Sine Wave output safeguards mid to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS Technology.

Specifications:

•
  Form Factor: Tower



•
  UPS Topology: Line-interactive



•
  Energy Saving Technology: GreenPower UPS Bypass Technology



•
  Active PFC Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 220, 230, 240



•
  Input Voltage Range ( Vac ): 169 - 271



•
  Input Frequency ( Hz ): 50 ± 3, 60 ± 3



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current ( A ): 10



•
  Input Connector Type: IEC C14



•
  Detachable Power Cord Plug Type: Schuko x



•
  Power Cord Length (m.): 1.83



•
  Capacity (VA): 1600



•
  Capacity (Watts): 1000



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage(s) ( Vac ): 230 ± 5 % (Under a test load of less than 60%. When the load is greater than 60%, the output voltage range may be greater than 5%.)



•
  On Battery Frequency ( Hz ): 50 ± 1%, 60 ± 1%



•
  Automatic Voltage Regulation (AVR): Single Boost



•
  Overload Protection: Internal Current Limiting



•
  Outlet(s): 6



•
  Outlet Type: Schuko x 6



•
  Outlet(s) - Battery & Surge Protected: 6



•
  Typical Transfer Time ( ms ): 8 (Max 12ms at normal sensitivity)



•
  USB Charging Port(s): USB-A x 1, USB-C x 1



•
  USB Charging Total Output ( Watts ): 30



•
  USB-A Charging Output: 5 V/ 2.4 A Max



•
  USB-C Charging Output: 5 V/ 2.5 A Max, 9 V/ 2 A Max, 15 V/ 2 A Max



•
  Runtime at Half Load ( min ): 9.7



•
  Runtime at Full Load ( min ): 2.6



•
  Typical Recharge Time ( Hours ): 8 (Recover to 90% after full load discharge)



•
  User-replaceable: Yes



•
  Battery Type: Sealed Lead-acid



•
  Replacement Battery Pack (RBP): RBP0142



•
  Replacement Battery Pack (RBP) Quantity ( pcs ): 1



•
  Surge Suppression ( Joules ): 405



•
  Network Protection RJ45: 1-in, 1-out



•
  LCD Panel: Yes



•
  LCD Types: Color LCD



•
  Tiltable LCD Panel: 22



•
  LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log



•
  LCD Setting & Control: Alarm Setting, Input & Output, Battery Setting, Event & Log



•
  LED Indicators: Power On



•
  HID-Compliant USB Port(s): 1



•
  Serial Port: Dry Contact



•
  Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault



•
  Management Cable ( pcs ): USB Cable x1



•
  Ethernet Data Transmission Speed: Up to 1Gbps



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  Dimensions: 100 x 280 x 355mm



•
  Weight: 11kg



•
  Operating Temperature: 0 - 40C



•
  Operating Relative Humidity (Non-condensing) ( % ): 0 - 95



•
  Operating Elevation: 0-3,000m



•
  Storage Temperature: -15 - 45



•
  Storage Relative Humidity (Non-condensing) ( % ): 0 - 95



•
  Storage Elevation: 0-15,000m



•
  Online Thermal Dissipation ( BTU/hr ): 24



•
  Certifications: CE, RoHS



•
  Warranty: 2-year


Features:

•
  Line-interactive UPS Topology



•
  Active PFC Compatible



•
  Automatic Voltage Regulation (AVR)



•
  LED Status Indicator



•
  PowerPanel Management Software



•
  USB Charging Port(s)



•
  Tower Form Factor



•
  Energy Saving Technology



•
  Pure Sine Wave Output



•
  Color LCD Panel



•
  SNMP/HTTP Remote Management Capability (Optional)



•
  Surge and Spike Protection



•
  High-speed Ethernet Data Transmission
