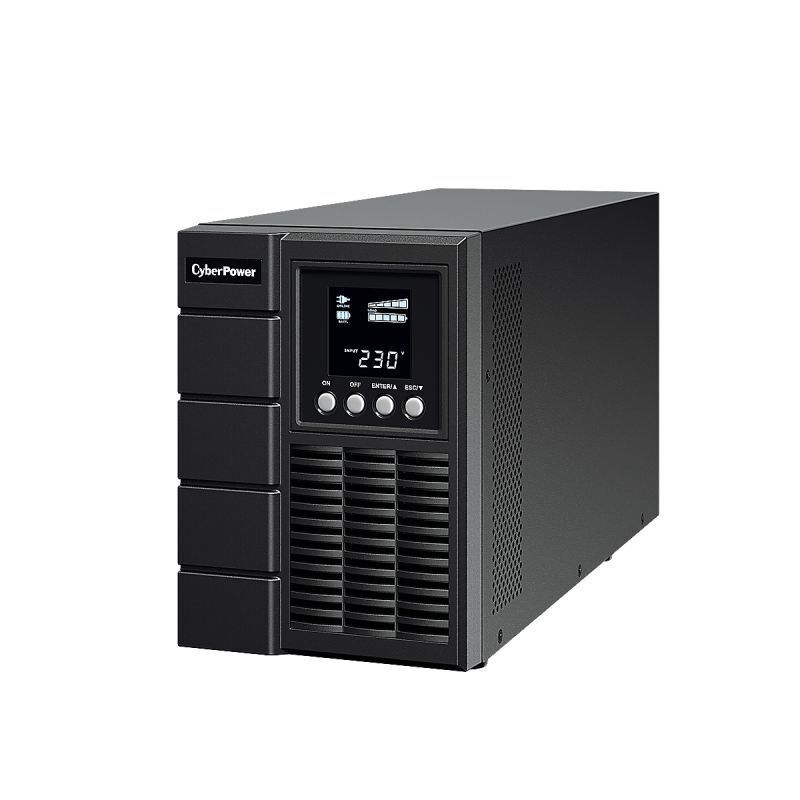

About Cyberpower 1000VA/900W Tower UPS

CyberPower OLS1000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation, and emergency systems.

Specifications:

•
  Phase: Single Phase



•
  Form Factor: Tower



•
  UPS Topology: Online Double Conversion



•
  Energy Saving Technology: Online ECO Mode Efficiency > 95%



•
  Active PFC Compatibility: Yes



•
  Generator Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 230 ± 10%



•
  Input Voltage Range ( Vac ): 160 - 300



•
  Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac



•
  Input Frequency ( Hz ): 50 ± 10 | 60 ± 10



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current ( A ): 4.5



•
  Input Power Factor: 0.98



•
  Input Connector Type: IEC C14



•
  Power Cord Length (m.): 1.8



•
  Output Capacity (Watts): 900



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%



•
  Output Voltage Setting: Configurable



•
  On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%



•
  Output Frequency Setting: Configurable



•
  Power Factor: 0.9



•
  ECO Mode Voltage Tolerance: ± 15 %



•
  Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse



•
  Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately



•
  Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately



•
  Overload Protection (Bypass Mode): >130% Load Immediately



•
  Crest Factor: 3 : 1



•
  Harmonic Distortion (Linear Load): THD 3%



•
  Harmonic Distortion (Non-linear Load): THD 5%



•
  Internal Bypass: Automatic Bypass, Manual Bypass



•
  Outlet(s) - Total: 4



•
  Outlet Type: IEC C13 x 4



•
  Outlet(s) - Battery & Surge Protected: 4



•
  Typical Transfer Time ( ms ): 0



•
  Runtime at Half Load ( min ): 15



•
  Runtime at Full Load ( min ): 5



•
  Typical Recharge Time ( Hours ): 5



•
  Maximum Charging Current ( A ): 1



•
  Start On Battery: Yes



•
  Smart Battery Management (SBM): Yes



•
  User-replaceable: No



•
  Battery Type: Sealed Lead-acid



•
  Compatible Extended Battery Module (EBM): BPSE36V45A



•
  Max. EBM Quantity ( pcs ): 3



•
  Surge Suppression ( Joules ): 440



•
  EMI/RFI Filtration: Yes



•
  Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out



•
  LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log



•
  LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting



•
  HID Compliant USB Port(s): 1



•
  Emergency Power Off (EPO) Port: Yes



•
  Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery



•
  Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  Enclosure Construction: Metal



•
  Dimensions: 151 x 225 x 394mm



•
  Weight: 13.1kg



•
  Certifications: CE, RCM


Features:

•
  Online (Double Conversion) UPS Topology



•
  Generator Compatible



•
  Zero Transfer Time



•
  Extended Battery Module (EBM)



•
  EMI and RFI Filtration



•
  LCD Status Display



•
  PowerPanel Management Software



•
  ECO Mode



•
  Overload Protection



•
  Smart Battery Management (SBM)



•
  Surge and Spike Protection



•
  Phone/Fax/Modem/DSL/Network Protection



•
  Emergency Power Off (EPO) Port



•
  SNMP/HTTP Remote Management Capability (Optional)
