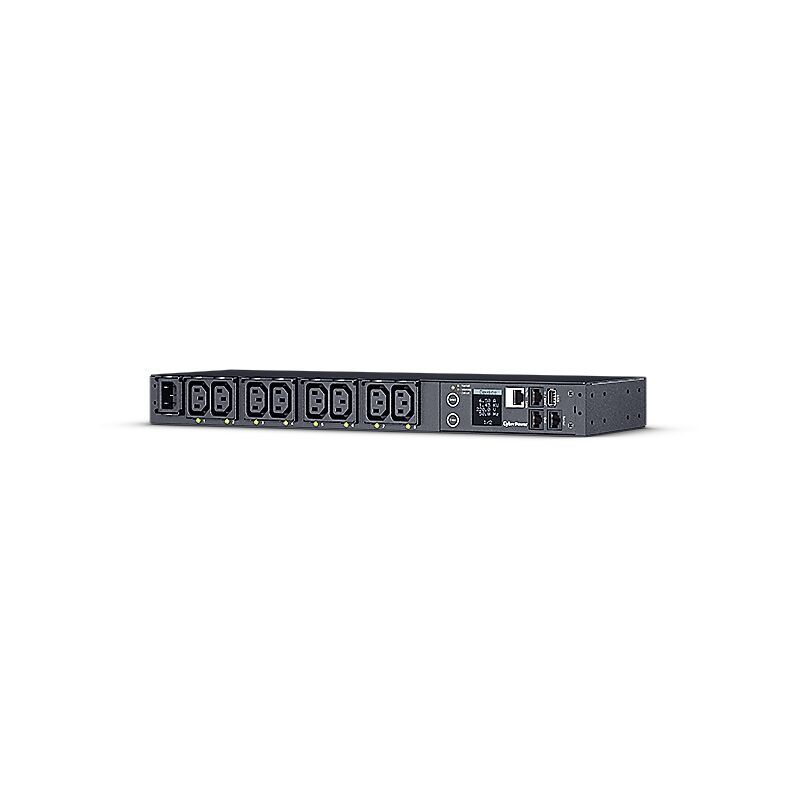

About CyberPower Switched Enclosure PDU 12-Amp

CyberPower Systems Switched ePDU 1RU horizontal 12Amp input - SNMP Network Connection - 8x IEC-320 C13 out -IEC-320 C14 in - 2 Yrs Adv. Replacement WTY

Specifications:

•
  Nominal Input Voltage ( Vac ): 100 - 240



•
  Input Frequency ( Hz ): 50 / 60



•
  Maximum Input Current ( A ): 12 (UL) | 10 (CE)



•
  Input Connector Type: IEC C14 x 1



•
  Power Cord Length: 3.05m



•
  Output Voltage ( V ): Depends on Input



•
  Idle Power Consumption ( W ): < 5



•
  Outlet(s) - Total: 8



•
  Outlet Type: IEC C13 x 8



•
  Remote Individual Outlet Control: Yes



•
  LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version



•
  Hot-swappable LCD Module: Yes



•
  Auto LCD Orientation: Yes



•
  LCD Setting & Control: Outlet Control, LCD Settings, Reset / Reboot



•
  LED Indicators: PDU Status, Tx/Rx, Link, Outlet



•
  Outlet Metering Capability: ± 1%



•
  A-type USB Port: Yes



•
  Connectivity Port: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/ Daisy Chain (In)), RJ45 (for Daisy Chain (Out))



•
  Environmental Sensor Supported: Yes



•
  User-upgradeable Firmware: Yes



•
  Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)



•
  Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog



•
  Authentication: RADIUS, LDAP, LDAPS, Windows AD



•
  Installed Rack Height (U): 1



•
  Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount



•
  Enclosure Construction: Steel



•
  Cord Retention Tray: Yes



•
  IEC Receptacle Locking: Yes



•
  External Site Ground Pin: Yes



•
  Adjustable Mounting Brackets: 2 Set (L-short | L-long)



•
  Dimensions: 433 x 44 x 112mm



•
  Weight: 2.1kg



•
  Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A



•
  RoHS: Yes


Features:

•
  Real-time Local/Remote Monitoring and Switching



•
  Work under High Temperature



•
  ±1% Measurement Accuracy



•
  Digital Real-time Load Display



•
  Hot-swappable LCD Design



•
  LED Status Indicator



•
  Supports ENVIROSENSOR



•
  PowerPanel Management Software



•
  Cord Retention Tray



•
  Controllable Receptacles with Power Sequencing



•
  Ultra Low Power Consumption



•
  Industrial-grade Metal Housing



•
  User Configurable Color LCD



•
  Rotatable LCD for Proper Display Orientation



•
  Firmware Upgrade via USB



•
  User-upgradeable Firmware



•
  Adjustable Mounting Brackets



•
  IEC Receptacle Locking
