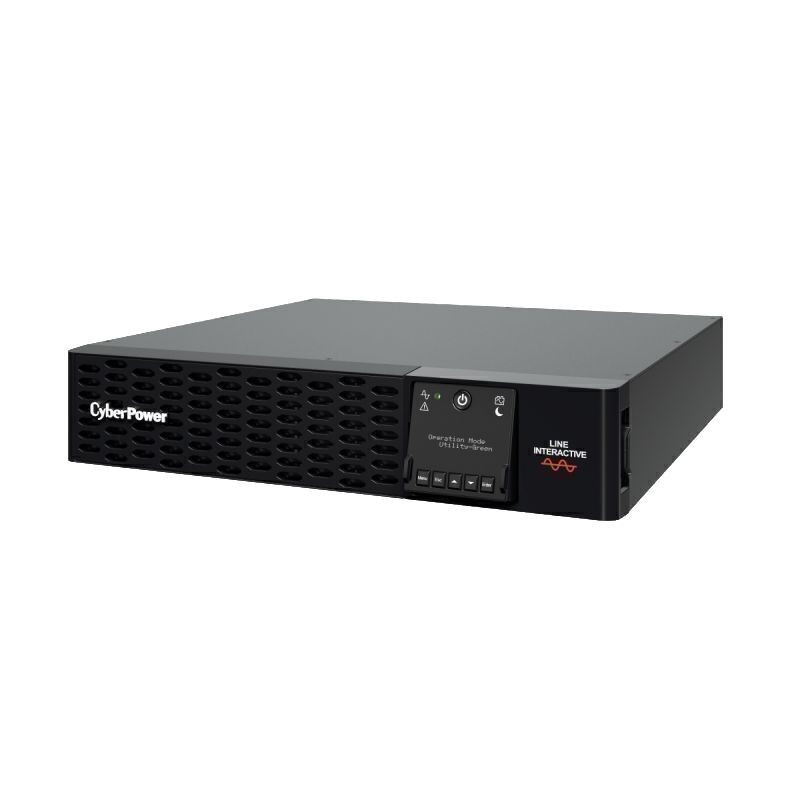

About CyberPower PRO Rack/Tower - Smart App UPS System - 1500VA

CyberPower Systems PRO Rack/Tower LCD 1500VA/1500W 2U Line Interactive UPS - 4* 12V/7AH 10x IEC 320 C13 - 3 Yrs Adv. Replacement WTY 2 Yrs on internal Batteries - Incl Rail kit

Specifications:

•
  Form Factor: Rackmount / Tower



•
  UPS Topology): Line-interactive



•
  Energy Saving Technology: GreenPower UPS Bypass Technology



•
  Energy Star Qualified: Yes



•
  Active PFC Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 220 | 230 | 240



•
  Input Voltage Range ( Vac ): 159 - 288



•
  Adjustable Voltage Range ( Vac ): 151 - 302 Vac



•
  Input Frequency ( Hz ): 50 ± 3 | 60 ± 3



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current ( A ): 10



•
  Input Connector Type: IEC C14



•
  Detachable Power Cord Plug Type: AU x 1



•
  Power Cord Length: 3m



•
  Output Capacity (VA): 1500



•
  Output Capacity (Watts): 1500



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%



•
  On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%



•
  Power Factor: 1



•
  Automatic Voltage Regulation (AVR): Double Boost, Single Buck



•
  Overload Protection: Internal Current Limiting, Circuit Breaker



•
  Outlet(s) - Total: 10



•
  Outlet Type: IEC C13 x 10



•
  Outlet(s) - Battery & Surge Protected: 10



•
  Outlet(s) - Critical Load (CL): 5



•
  Outlet(s) - Non-Critical Load (NCL): 5



•
  Typical Transfer Time ( ms ): 4



•
  Battery Runtime at Half Load ( min ): 18.6



•
  Battery Runtime at Full Load ( min ): 6



•
  Battery Typical Recharge Time ( Hours ): 3



•
  Start On Battery: Yes



•
  Built-in Battery Management Module: Yes



•
  User-replaceable: Yes



•
  Hot-swappable: Yes



•
  Battery Type: Sealed Lead-acid



•
  Battery Cartridge (RBP): RBP0129



•
  Battery Quantity (Each RBP) ( pcs ): 4



•
  Surge Suppression ( Joules ): 2430



•
  EMI/RFI Filtration: Yes



•
  Network Protection RJ45: 1-in, 1-out



•
  LCD Orientation: Rotatable LCD – Manual



•
  LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log



•
  LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication



•
  LED Indicators: Power On, Line Mode, Battery Mode, UPS Fault, Night Mode



•
  HID Compliant USB Port(s): 1



•
  Dry Contact (with Relay): Yes



•
  Emergency Power Off (EPO) Port: Yes



•
  Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault



•
  Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1



•
  Ethernet Data Transmission Speed: Up to 1Gbps



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  PowerPanel Cloud Service: Yes - 90 Days Free Trial



•
  Enclosure Construction: Metal



•
  Rackmount Rail: Yes



•
  Rackmount Ears: Yes



•
  Dimensions: 433 x 86.5 x 412mm



•
  Weight: 24.6kg



•
  Installed Rack Height ( U ): 2



•
  Certifications: CE | FCC Class B | UL | cUL | RCM | VCCI | UKCA



•
  RoHS: Yes


Features:

•
  Line-interactive UPS Topology



•
  Active PFC Compatible



•
  Toolless Battery Replacement



•
  High Output Power Factor



•
  Overload Protection



•
  Quick Charging Technology



•
  Surge and Spike Protection



•
  LCD Status Display



•
  Serial Connectivity Port



•
  PowerPanel Management Software



•
  Rack/Tower Convertible Configurations



•
  Energy Saving Technology



•
  Pure Sine Wave Output



•
  Battery Management Technology



•
  Automatic Voltage Regulation (AVR)



•
  Critical/Non-critical Load Outlets



•
  Hot-swappable Batteries



•
  EMI and RFI Filtration



•
  USB Connectivity Port



•
  Emergency Power Off (EPO) Port



•
  SNMP/HTTP Remote Management Capability
