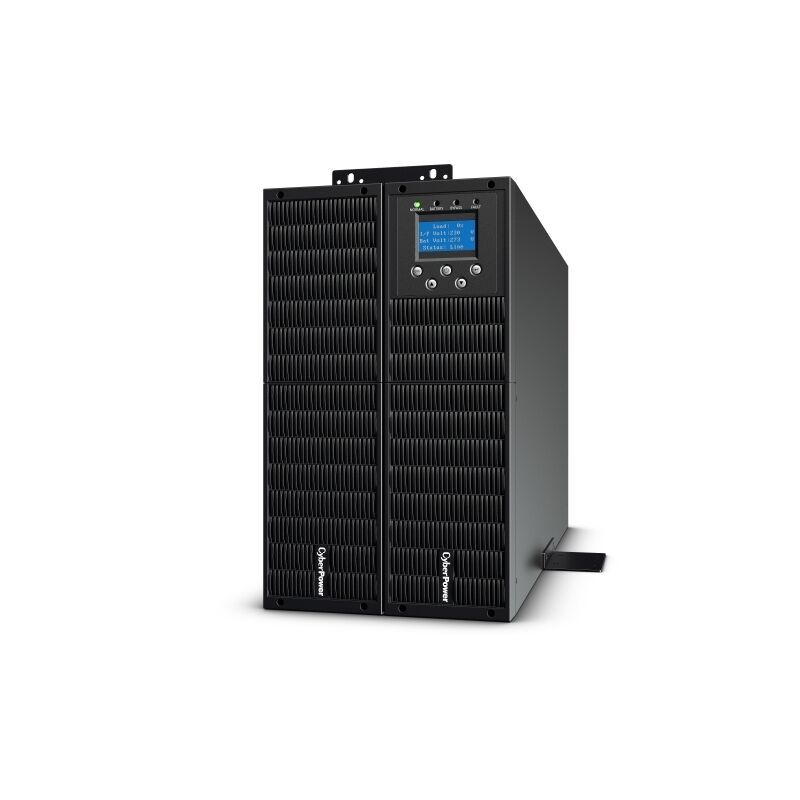

About CyberPower Online S - Smart App UPS System - 10000VA

CyberPower Systems Online S 10000VA/9000W Rack UPS - 12V/7AH*20 - Hardwire Terminal Block - USB & Serial Port & SNMP Slot (optional RMCARD205) - 2 Yrs Adv. Replacement WTY - Incl Rail kit

Specifications:

•
  Phase: Single Phase



•
  Form Factor: Rackmount Tower



•
  UPS Topology: Online Double Conversion



•
  Energy Saving Technology: Online ECO Mode Efficiency > 96%



•
  Active PFC Compatibility: Yes



•
  Parallel Expansion (Max. Units): 4



•
  Generator Compatibility: Yes



•
  Nominal Input Voltage ( Vac ): 230



•
  Input Voltage Range ( Vac ): 110 - 276



•
  Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac



•
  Input Frequency ( Hz ): 50 ± 5 | 60 ± 6



•
  Input Frequency Detection: Auto-sensing



•
  Rated Input Current ( A ): 45.5



•
  Input Power Factor: 0.99



•
  Input Connector Type: Hardwire Terminal Block



•
  Output Capacity (VA): 10000



•
  Output Capacity (Watts): 9000



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%



•
  Output Voltage Setting: Configurable



•
  On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%



•
  Output Frequency Setting: Configurable



•
  Power Factor: 0.9



•
  ECO Mode Voltage Tolerance: ± 10 %



•
  Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse



•
  Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec



•
  Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec



•
  Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec



•
  Crest Factor: 3 : 1



•
  Harmonic Distortion (Linear Load): THD 2%



•
  Harmonic Distortion (Non-linear Load): THD 5%



•
  Internal Bypass: Automatic Bypass | Manual Bypass



•
  Typical Recharge Time ( Hours ): 7



•
  Maximum Charging Current ( A ): 4



•
  Start On Battery: Yes



•
  Smart Battery Management (SBM): Yes



•
  User-replaceable: No



•
  Battery Type: Sealed Lead-acid



•
  Compatible Extended Battery Module (EBM): BPSE240V75ART3UOA



•
  Max. EBM Quantity ( pcs ): 15



•
  Surge Suppression ( Joules ): 445



•
  EMI/RFI Filtration: Yes



•
  LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log



•
  LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting



•
  LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault



•
  HID Compliant USB Port(s): 1



•
  Dry Contact (with Relay): Optional



•
  Emergency Power Off (EPO) Port: Yes



•
  Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault



•
  SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205



•
  Enclosure Construction: Metal



•
  Rackmount Rail: Yes



•
  Rackmount Ears: Yes



•
  Installed Rack Height ( U ): 6



•
  Certification: CE



•
  RoHS: Yes



•
  Product Warranty: 2 Years


Features:

•
  Online (Double Conversion) UPS Topology



•
  UPS Parallel Expansion



•
  Overload Protection



•
  Smart Battery Management (SBM)



•
  Surge and Spike Protection



•
  LCD Status Display



•
  PowerPanel Management Software



•
  Rack/Tower Convertible Configurations



•
  ECO Mode



•
  Generator Compatible



•
  Zero Transfer Time



•
  Extended Battery Module (EBM)



•
  EMI and RFI Filtration



•
  Emergency Power Off (EPO) Port



•
  SNMP/HTTP Remote Management Capability
