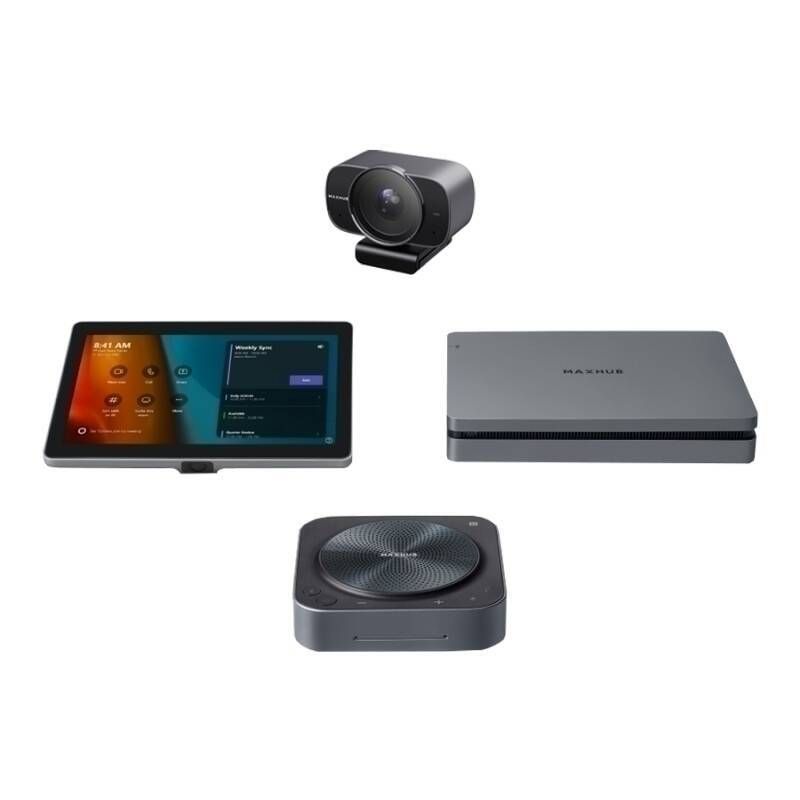

Maxhub XT10-WS MTR Kit

About Maxhub XT10-WS MTR Kit

Expanding on the foundation of the XCore Kit, the MAXHUB XT10-WS Kit incorporates a UCBM35 Speakerphone & UCW31 4K USB Camera. A simpler Microsoft Teams Rooms deployment solution.

Specifications:

MAXHUB XC13T Mini-PC:

•
  Processor: 12th Gen Intel i3



•
  Memory: 8GB DDR4 3200MHz SO-DIMM x 2



•
  Storage: 128GB SATA SSD (M.2-2280 SATA3 up to 6Gbps)



•
  Graphics: Intel UHD Graphics for 12th Gen Intel Processors



•
  Network: 1000Mbps RJ45



•
  Operating System: Windows 11 IoT Enterprise SAC



•
  Application: Microsoft Teams Room



•
  Ports: 4 x USB-A | 1 x RJ45 | 1 x USB-C | 1 x HDMI | 1 x AUX


MAXHUB TCP20T Touch Control Panel:

•
  Screen Size: 10.1 inch



•
  Resolution: 1920 x 1200



•
  Refresh Rate: 60Hz



•
  Back Light Unit: ELED



•
  Brightness with Glass: Min: 250cd/m2 | Typ: 300cd/m2



•
  Life Time: > 20000 Hours



•
  Surface Treatment: Anti-fingerprint and Anti-glare



•
  Motion Sensor: PIR sensor for auto wake-up


MAXHUB UCBM35 Speakerphone:

•
  No. of Microphones: 8



•
  Voice Pickup Range: 6 Metres



•
  Microphone Frequency: USB: 100Hz-12kHz | Bluetooth: 100Hz-7.5kHz



•
  Speaker Output Power: 5W + 3W



•
  Maximum Sound Pressure Level: 80dBSPL@1m



•
  Distortion: <7%(80Hz-350Hz) | <3%(351Hz-4kHz) | <5%(4.1kHz-18kHz)



•
  Signal to Noise Ratio: >75dB



•
  Frequency Range: 80Hz-18kHz



•
  Ports: USB-C



•
  Battery capacity: 3.7V/4400mAh



•
  Battery charging Wired: 5V/1A



•
  Playtime: 15 Hours



•
  Bluetooth Version: 5.3



•
  Operating Frequency 2.4GHz



•
  Operating Distance: 10 Metres



•
  Compatibility: Windows 7/8/8.1/10 | MAC OS10.10 and above



•
  Dimensions: 126.7 x 126.7 x 35.3mm



•
  Weight: 0.47kg


MAXHUB UCW31 4K USB Camera:

•
  Megapixels: 12



•
  Sensor: IMX577



•
  Resolution: 3840 x 2160



•
  Field of View: H (109.1?) / V (74.4?) / D (117.8?)



•
  Output Formats: MJPG / H.264 / YUY2 / NV12



•
  Connection: USB-C



•
  Microphone No.: 2



•
  Microphone Pickup Range: 4 Metres



•
  Dimensions: 85 x 63 x 68.2mm



•
  Weight: 175g


Features:

•
  Flexible & easy installation



•
  Simple Device Management



•
  Easily share content from your device



•
  A single Cable connects the Windows Compute to the Touch Console with an additional UC S07 Videobar



•
  Flexibility to easily pair with existing AV peripherals in focus rooms and small areas



•
  Microsoft Teams Certified



•
  Transform BYOD scenarios into smart Teams meeting spaces



•
  Enables organizations to make the leap to Microsoft Teams Rooms Smart Spaces



•
  Mini-PC XC13T - Its powerful Intel 12th Gen 10-Core i3 processor loads everything you need



•
  TCP20T Touch Control Panel high-resolution 10.1-inch Teams Rooms console allows you complete control



•
  UCBM35 Speakerphone - AI Noise Reduction, Dual Bluetooth connection, 8 Array Microphone, 6m Pickup range



•
  UCW31 4K USB Camera - Easy to install, inbuilt microphones, Auto-framing technology, 5 x Zoom



•
  Windows 11 IoT Enterprise SAC Operating system



•
  3-year advanced replacement warranty and local support



•
  Kit Includes: 1 x TCP20T Touch Control Panel, 1 x XC13T Mini-PC, 1 x MAXHUB UCBM35 Speakerphone & 1 x MAXHUB UCW31 4K USB Camera


What's in the box?

•
  1 x MAXHUB XC13T Mini-PC



•
  1 x MAXHUB TCP20T Touch Control Panel



•
  1 x MAXHUB UCBM35 Speakerphone



•
  1 x MAXHUB UCW31 4K USB Camera



•
  1 x 5m USB-C cable



•
  1 x 1m USB-C cable



•
  1 x USB Dongle



•
  1 x 1.5m USB-C to USB-A Cable



•
  2 x 1.8m HDMI Cable



•
  1 x 1.8m Power Cord



•
  1 x Wall Bracket



•
  1 x Wall Mount Components



•
  1 x PC Bracket



•
  1 x Cable Cover



•
  1 x Camera Privacy Cover



•
  1 x Quick Start Guide
