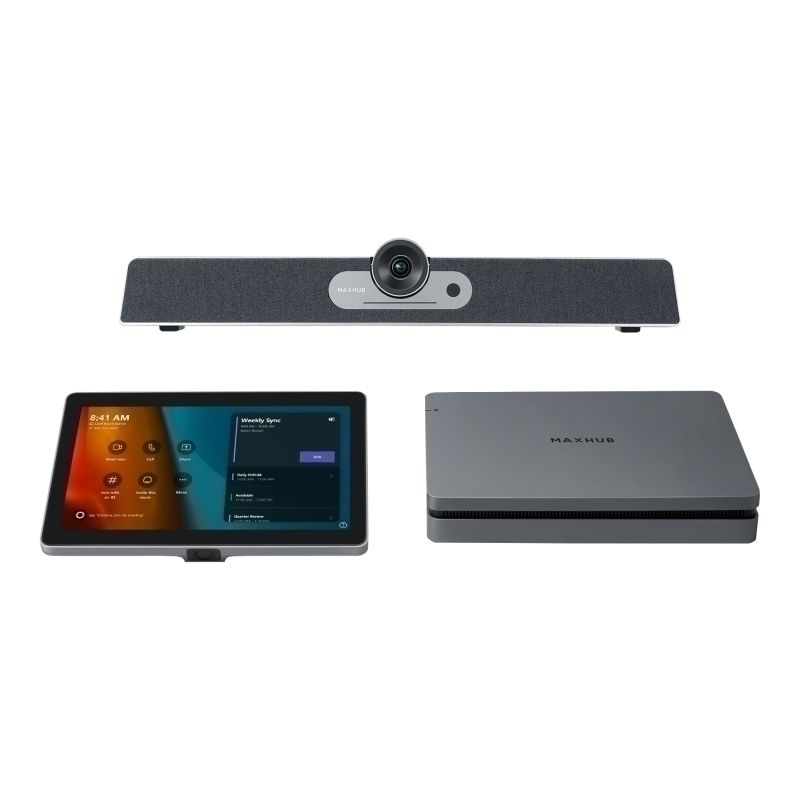

Maxhub XT10-VB MTR Kit

About Maxhub XT10-VB MTR Kit

Expanding on the foundation of the XCore Kit, the MAXHUB XT10-VB Kit incorporates a UC S07 Videobar. A simpler Microsoft Teams Rooms deployment solution.

Specifications:

MAXHUB XC13T Mini-PC:

•
  Processor: 12th Gen Intel i3



•
  Memory: 8GB DDR4 3200MHz SO-DIMM x 2



•
  Storage: 128GB SATA SSD (M.2-2280 SATA3 up to 6Gbps)



•
  Graphics: Intel UHD Graphics for 12th Gen Intel Processors



•
  Network: 1000Mbps RJ45



•
  Operating System: Windows 11 IoT Enterprise SAC



•
  Application: Microsoft Teams Room



•
  Ports: 4 x USB-A | 1 x RJ45 | 1 x USB-C | 1 x HDMI | 1 x AUX


MAXHUB TCP20T Touch Control Panel:

•
  Screen Size: 10.1 inch



•
  Resolution: 1920 x 1200



•
  Refresh Rate: 60Hz



•
  Back Light Unit: ELED



•
  Brightness with Glass: Min: 250cd/m2 | Typ: 300cd/m2



•
  Life Time: > 20000 Hours



•
  Surface Treatment: Anti-fingerprint and Anti-glare



•
  Motion Sensor: PIR sensor for auto wake-up


MAXHUB UCS07 Video Bar:

•
  Megapixels: 12



•
  Sensor: 1/2.3-inch 12MP Sony sensor



•
  Zoom Lens: 5x Digital Zoom



•
  Output Format: MJPG / YUY2 / H.264



•
  Field of View: 120 Degrees



•
  Adjustable Angle: +- 15 Degrees



•
  Focus Mode: Fixed-Focus



•
  Focus Distance: 1m



•
  Power Requirements: 12V



•
  Overall Power(Max): 10W



•
  PoE Power: Yes (IEEE 802.3af or 802.3at)



•
  Speaker Output: 8W + 3W



•
  Microphone Quantity: 6



•
  Voice Pickup Range: 8m



•
  Microphone Frequency Range: 100Hz - 7.5kHz



•
  Ports: 1 x USB-C (Console) | 1 x RJ45 | 1 x AUX


Features:

•
  Flexible & easy installation



•
  Simple Device Management



•
  Easily share content from your device



•
  A single Cable connects the Windows Compute to the Touch Console with an additional UC S07 Videobar



•
  Flexibility to easily pair with existing AV peripherals in focus rooms and small areas



•
  Microsoft Teams Certified



•
  Transform BYOD scenarios into smart Teams meeting spaces



•
  Enables organizations to make the leap to Microsoft Teams Rooms Smart Spaces



•
  Mini-PC XC13T - Its powerful Intel 12th Gen 10-Core i3 processor loads everything you need



•
  TCP20T Touch Control Panel high-resolution 10.1-inch Teams Rooms console allows you complete control



•
  Windows 11 IoT Enterprise SAC Operating system



•
  Auto Framing: automatic adjustment FOV to fit all participants



•
  Speaker Tracking: voice triggered people tracking



•
  10 Zooming Pre-sets for instant setting up



•
  3-year advanced replacement warranty and local support



•
  Kit Includes: 1 x TCP20T Touch Control Panel, 1 x XC13T Mini-PC and 1 x UCS07 Video Bar


What's in the box?

•
  1 x MAXHUB XC13T Mini-PC



•
  1 x MAXHUB TCP20T Touch Control Panel



•
  1 x MAXHUB UCS07 Video Bar



•
  1 x 5m USB-C cable



•
  1 x 1.5m USB-C to USB-A Cable



•
  2 x 1.8m HDMI Cable



•
  1 x 1.8m Power Cord



•
  1 x Wall Bracket



•
  1 x Wall Mount Components



•
  1 x PC Bracket



•
  1 x Remote Control



•
  1 x Cable Cover



•
  1 x Camera Privacy Cover



•
  1 x Quick Start Guide
