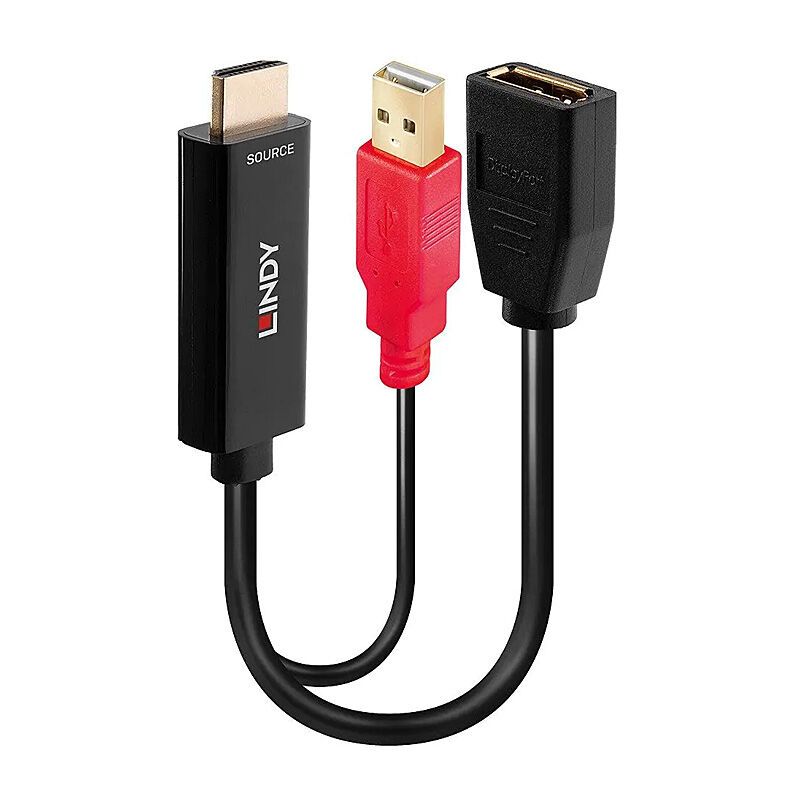

Lindy HDMI to DP 1.2 Converter

About Lindy HDMI to DP 1.2 Converter

Lindy HDMI 18G to DisplayPort 1.2 Converter USB Power

Features:

•
  Connects an HDMI source to a DP display



•
  Supports resolutions up to 4K UHD 3840x2160@60Hz



•
  Integrated USB Power cable for use with low power HDMI sources



•
  High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut



•
  2 year warranty


Specifications:

•
  AV Interface: HDMI to DisplayPort



•
  Interface Standard: HDMI 2.0 / DisplayPort 1.2



•
  Supported Bandwidth: 21.6Gbps



•
  Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit SDR



•
  Maximum� Output Resolution: 3840x2160@60Hz 4:4:4 8bit SDR



•
  Chipset: LT6711A



•
  HDCP Support: HDCP 1.4



•
  Supported Audio: Supports 7.1 LPCM digital audio up to 192kHz 24bit



•
  Separate Audio Ports: -



•
  Special Features: Optional power via USB


Connectors

•
  Input: HDMI Type A Male / USB Type A Male for Optional Power



•
  Output: DisplayPort Female


Physical properties

•
  Dimensions (approx.) WxDxH:


  48x11x20.7mm (1.89x0.43x0.81in) / HDMI


  31.8x21x11.5mm (1.25x0.83x0.45in) / DP


  7.9x16x21mm (0.31x0.63x0.83in) / USB



•
  Cable Length: 180mm (7.09in)



•
  Housing Material: plastic



•
  Jacket Material: PVC



•
  Jacket Diameter: 4.8mm (0.19in)



•
  Minimum Bend Radius: 48mm (1.89in)



•
  Net Weight: 0.053kg (0.12lb)



•
  Operating Temperature: 0�C - 45�C (32�F - 113�F)



•
  Storage Temperature: -10�C - 80�C (14�F - 176�F)



•
  Humidity: 10 - 85% RH (non-condensing)



•
  Colour: Black, red USB connector


Miscellaneous

•
  Packaging Type: Polybag



•
  Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)



•
  Gross Weight: 0.089kg (0.2lb)



•
  Warranty (Years): 2



•
  Certificated: CE, FCC, RoHS & REACH, California Proposition 65


Whats in the box?

•
  HDMI to DisplayPort Converter with USB Power



•
  Lindy manual
