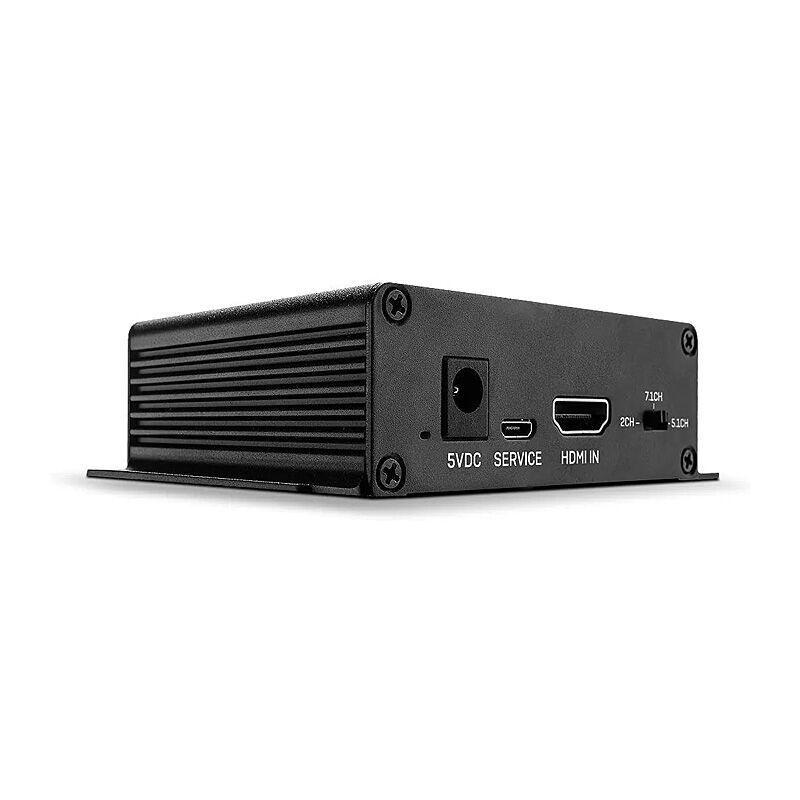

About Lindy HDMI 4K60 AudioExtractor

Lindy HDMI 4K60 Audio Extractor

Features

•
  Extracts stereo or multi-channel audio from an HDMI source



•
  4K@60Hz video pass-through, with additional support for HDR



•
  Supports both stereo and multi-channel audio up to 7.1



•
  CEC and High Bit Rate Audio Pass-through



•
  2 year warranty


Specifications

•
  Video Interface: HDMI



•
  Interface Standard: 2.0



•
  Supported Bandwidth: 18Gbps



•
  Maximum Resolution:





•
  3840x2160@60Hz 4:4:4 8bit



•
  3840x2160@60Hz 4:2:2 12bit





•
  HDCP Support: 2.2 / 1.4



•
  Audio Interface:





•
  SPDIF



•
  Analogue L/R





•
  Chipset: IT66321



•
  Supported Audio:





•
  HDMI (Pass-Through): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD



•
  Optical: Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH



•
  3.5mm: Analogue Stereo 2CH





•
  Maximum Supported Audio Sample Rate: 24-bit/192kHz



•
  Input Impedance: 1K



•
  Output Impedance: 10K?



•
  Output Voltage: 5V 1A



•
  Frequency Response: <3db; 20h~20kh



•
  Signal to Noise Ratio: 85db



•
  Special Features: CEC Pass-through


Connectors

•
  Input: HDMI Type A (Male)



•
  Output:





•
  HDMI Type A (Female)



•
  SPDIF (Female)



•
  Analogue L/R (Female)



•
  USB Micro-B (Female)





•
  Power: 5.5/2.1mm


Physical Properties

•
  Dimensions (approx.) WxDxH: 104.4x64x28.3mm (4.11x2.52x1.11in)



•
  Housing Material: Metal



•
  Net Weight: 0.118kg (0.26lb)



•
  Operating Temperature: -5°C - 35°C (23°F - 95°F)



•
  Storage Temperature: -5°C - 35°C (23°F - 95°F)



•
  Humidity: 5 - 90% RH (non-condensing)



•
  Power Requirements: 5VDC 1A



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Carton Box



•
  Packaging Dimensions: 257x56x150mm (10.12x2.2x5.91in)



•
  Gross Weight: 0.357kg (0.79lb)



•
  Warranty (Years): 2



•
  Certificated: CE, FCC, RoHS, REACH & California Proposition 65
