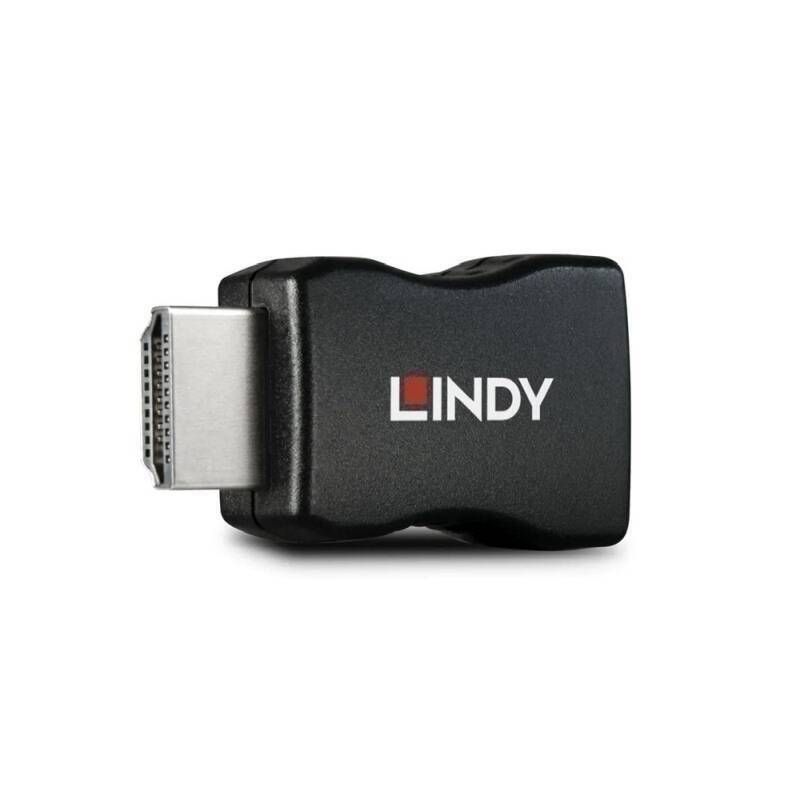

Lindy HDMI 10.2G EDID Emulator

Specifications:

• AV Interface: HDMI


• Interface Standard: HDMI 1.4


• Supported Bandwidth: 10.2Gbps


• Maximum Resolution: 3840 x 2160 @ 30Hz


• Audio EDID: LPCM 2-channel | 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz


• HDCP Support: 1.4


• Input: HDMI Type-A Male


• Output: HDMI Type-A Female


• Power: Via HDMI Source Interface


• Housing Material: ABS


• Dimensions: 24 x 43 x 12.3mm


• Weight: 0.008kg


• Warranty: 2 Years


• Certificated: CE | FCC | RoHS | REACH

Features:

• Continuously emulates HDMI EDID information


• Supports resolutions up to 3840x2160@30Hz including HDCP pass-through


• For use with 32120 for cloning


• Powered via HDMI Source Interface


• 2 Year warranty

Video EDID Resolutions & Framerate:

• 640 x 480p 60/72/75Hz


• 720 x 400p 60Hz/70Hz


• 720 x 480i 60Hz


• 720 x 576p 50Hz


• 720 x 576i 50Hz


• 800 x 600p 56/60/72/75Hz


• 832 x 624p 75Hz


• 1024 x 768p 60/70/75Hz


• 1280 x 800p 60Hz


• 1280 x 720p 50/60Hz


• 1152 x 864p 75Hz


• 1152 x 870p 75Hz


• 1280 x 1024p 60/75Hz


• 1280 x 960p 60Hz


• 1440 x 900p 60Hz


• 1600 x 1200p 60Hz


• 1680 x 1050p 60Hz


• 1920 x 1080i/p 50/60Hz


• 1920 x 1200p 60Hz


• 2560 x 1440p 60Hz


• 3840 x 2160p 24/30Hz
