About Lindy DST-Pro Universal USB-C & Type A Hybrid Laptop, Docking Station, 4K HDMI, 2x4K (DP Or HDMI)

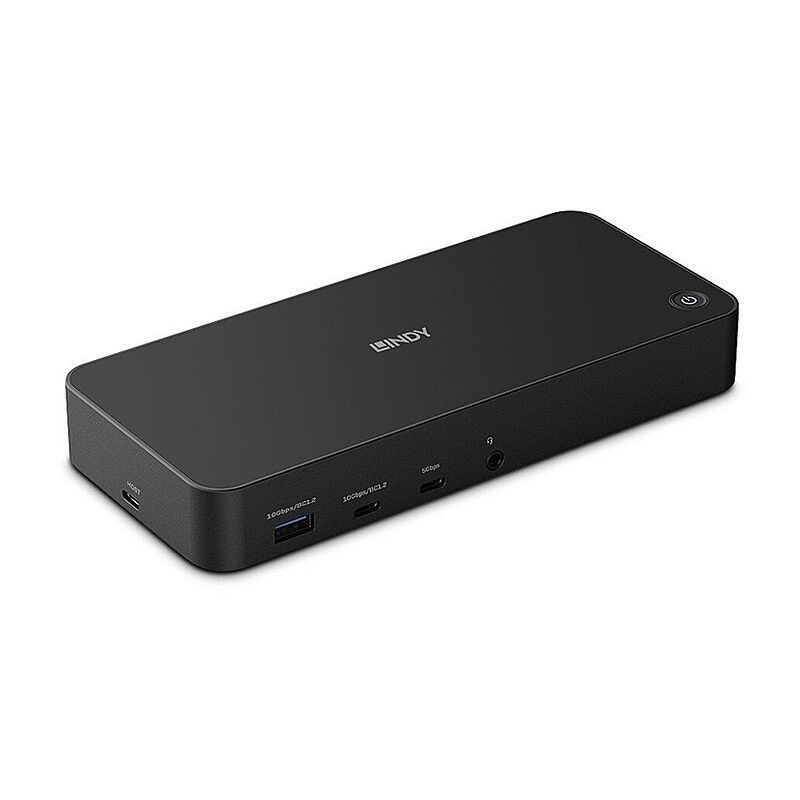

Lindy DST-Pro Universal USB-C & Type A Hybrid Laptop Docking Station

Features:

•
  Connects up to three 4K displays (DisplayPort and HDMI) and many peripherals over a single cable



•
  Supports all common operating systems and host computers with USB Type A and C interface



•
  Integrated 5 port USB Type A and Type C Hub (2x 10 Gbps, 3x 5Gbps)



•
  Supports Power Delivery 3.0 up to 100W (requires USB Type C/TB3/4 host connection)



•
  2-year warranty


Specifications:

•
  Interface: USB Type C to 3x USB Type A, 2x USB Type C, 1x RJ45, 3x HDMI, 2x DP, 1x 3.5mm Audio



•
  Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio



•
  Supported Bandwidth: 10 Gbps, 5 Gbps, 10/100/1000 Mbps



•
  Maximum Input Resolution: 3840x2160@60Hz



•
  Maximum Output Resolution:


  - Single Display: 3840x2160 60Hz


  - Dual Displays: 3840x2160@60Hz; HDMI3: 4K30Hz (DP Alt Mode)


  - Triple Displays: 2x 4K 60Hz, 1x 4K 30Hz (on HDMI 3)



•
  Chipset: DL6950, PS8822, PS176, VL103R, VL162, VL162, VL817, VL822, RTL8211F



•
  Compatibility: USB Type C/A or Thunderbolt 3/4 equipped computers; Windows, macOS, Linux, Android, Chrome OS



•
  Power Delivery: PD 3.0 100W (20V 5A)



•
  HDCP Support: HDCP 2.2 (on HDMI port No. 3 only)



•
  Supported Audio: Supports 16bit/48K Audio Sampling Rate



•
  Separate Audio Ports: 1 x Audio combo 3.5mm



•
  Special Features: Supports DisplayLink (MST on USB A devices, Apple incl. M1), DisplayPort Alternate mode, Kensington lock, Power button, Battery Charging 1.2


Connectors

•
  Inputs: 1 x USB Type C (Female)



•
  Outputs: 3x USB Type A (Female), 2x USB Type C (Female), 1x RJ45 (Female), 3x HDMI (Female), 2x DisplayPort (Female), 1x 3.5mm Audio (Female)



•
  Power: 5.5/2.1mm DC socket


Physical Properties

•
  Dimensions WxDxH: 190x85x30mm (7.48x3.3x1.18in)



•
  Housing Material: Plastic



•
  Net Weight: 0.396kg (0.837lb)



•
  Operating Temperature: -20° - 40°C (-4°F - 104°F)



•
  Storage Temperature: -40°C - 80°C (-40°F - 176°F)



•
  Humidity: 5 - 90% RH (non-condensing)



•
  Power Requirements: 30W



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Carton Box



•
  Packaging Dimensions: 323x205x50mm (12.72x8.07x1.97in)



•
  Gross Weight: 1.2kg (2.69lb)



•
  Warranty (Years): 2



•
  Certificated: CE, FCC, REACH & RoHS, California Proposition 65
