About Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station, Single Display 8K, Dual Display 4K, 100W C

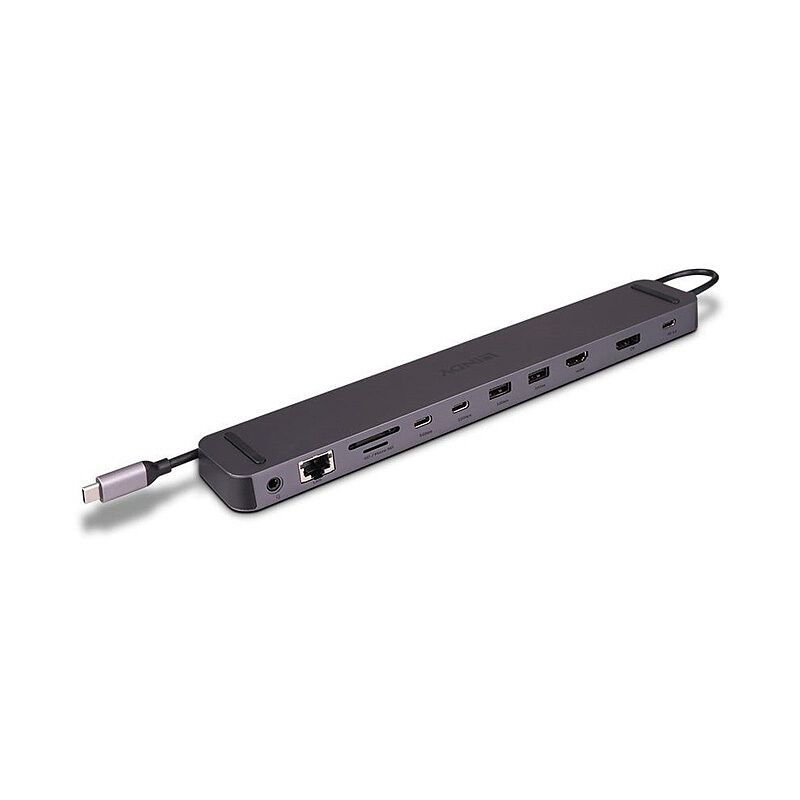

Lindy DST-Mini XT 810, USB-C Laptop Docking Station

Features:

•
  Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable



•
  Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)



•
  Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x Type A, 1 x Type C)



•
  USB Power Delivery capable up to 100W



•
  2 year warranty


Specifications:

•
  Interface: USB Type C to 1x HDMI / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio



•
  Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1, Gigabit LAN, HDMI 2.1, DP 1.4a, Audio (combo)



•
  Supported Bandwidth: 10 Gbps, 10/100/1000 Mbps



•
  Maximum Input Resolution: 8K 7680x4320 30Hz



•
  Maximum Output Resolution:



  •
    Single Display: 7680x4320 30Hz, 3840x2160 120Hz



  •
    Dual Displays: 3840x2160 60Hz (each)







•
  Chipset: VMM6210, VL822, GL3510, GL3224, RTL8153B, ALC4032, VL102



•
  Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.



•
  Power Delivery: PD 3.0 up to 100W (20V 5A)



•
  HDCP Support: HDCP 1.4 & 2.2



•
  Supported Audio: Sampling rate 192kHz/24bit



•
  Separate Audio Ports: 1x Audio combo port 3.5mm



•
  Special Features: DisplayPort Alternate Mode, MST Extended display support for Windows, Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot Execution Environment) and Wake on LAN (WOL), Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)


Connectors

•
  Inputs: 1x USB Type C (Male)



•
  Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 2x USB Type C (Female) / 1x SD slot, 1x microSD slot, 1x 3.5mm Audio (Female)



•
  Power: 1 x USB Type C (Female) PD port


Physical Properties

•
  Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)



•
  (Fixed) cable length: 360mm (14.17in)



•
  Housing Material: Aluminium



•
  Net Weight: 0.23kg (0.51lb)



•
  Operating Temperature: 0°C - 40°C (32°F - 104°F)



•
  Storage Temperature: -10°C - 70°C (14°F - 158°F)



•
  Humidity: 0% - 85% RH (non-condensing)



•
  Power Requirements: 15W



•
  Colour: Anthracite


Miscellaneous

•
  Packaging Type: Carton box



•
  Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)



•
  Gross Weight: 0.37kg (0.82lb)



•
  Warranty (Years): 2



•
  Product Compliance: CE, FCC, REACH & RoHS, CP65
