About Lindy 8 Port HDMI Splitter

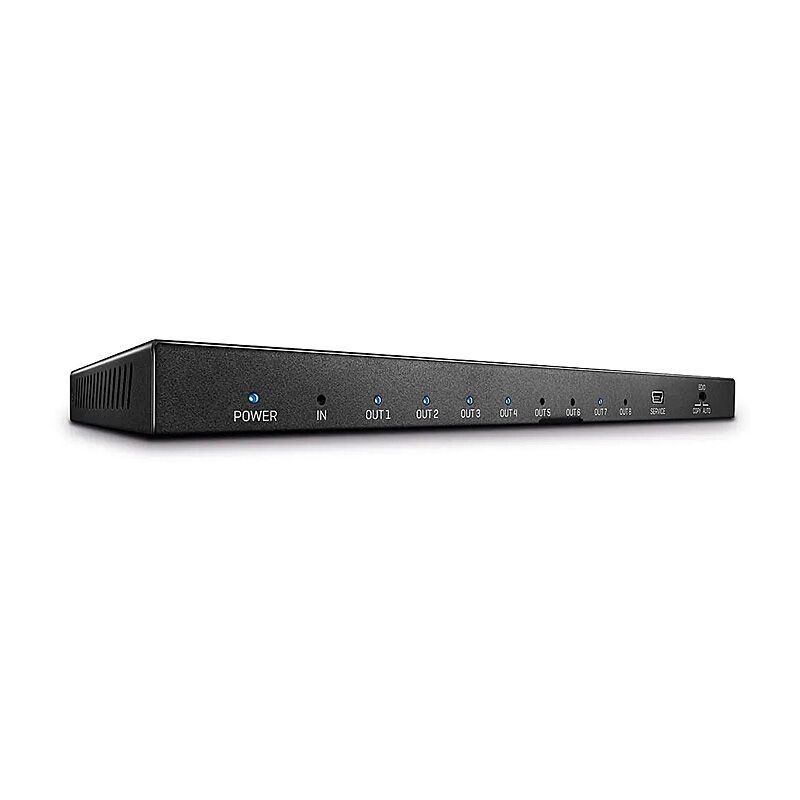

Lindy 8 Port HDMI 2.0 18G Splitter

Features

•
  Split a single HDMI 2.0 source across 8 HDMI displays



•
  Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR



•
  HDCP 2.2 support for enhanced compatibility



•
  EDID Management for hassle free installation



•
  2 year warranty


Specifications

AV Interface

•
  AV Interface: HDMI



•
  Interface Standard: HDMI 2.0



•
  Supports Bandwidth: 18Gbps



•
  Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit



•
  HDCP Support: 2.2



•
  Supported Audio: Audio Pass-through



•
  Separate Audio Ports: -



•
  CEC Support: -



•
  Serial Interface: -



•
  Special Features: EDID emulation


Connectors

•
  Input: 1 x HDMI (Female)



•
  Output: 8 x HDMI (Female)



•
  Control: -



•
  Power: 5.5/2.1mm DC socket


Physical Properties

•
  Dimensions (approx.) WxDxH: 243x102x16mm (9.57x4.02x0.63in)



•
  Housing Material: Metal



•
  Net Weight: 0.728kg (1.6lb)



•
  Operating Temperature: 0°C - 40°C (32°F - 104°F)



•
  Storage Temperature: -20°C - 60°C (-4°F - 140°F)



•
  Humidity: 20 - 90% RH (Non-condensing)



•
  Power Requirements: 12VDC 1A



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Carton box



•
  Packaging Dimensions: 277x68x183mm (10.91x2.68x7.2in)



•
  Gross Weight: 0.913kg (2.01lb)



•
  Warranty (Years): 2



•
  Certificated: CE, FCC, RoHS, REACH & California Proposition 65
