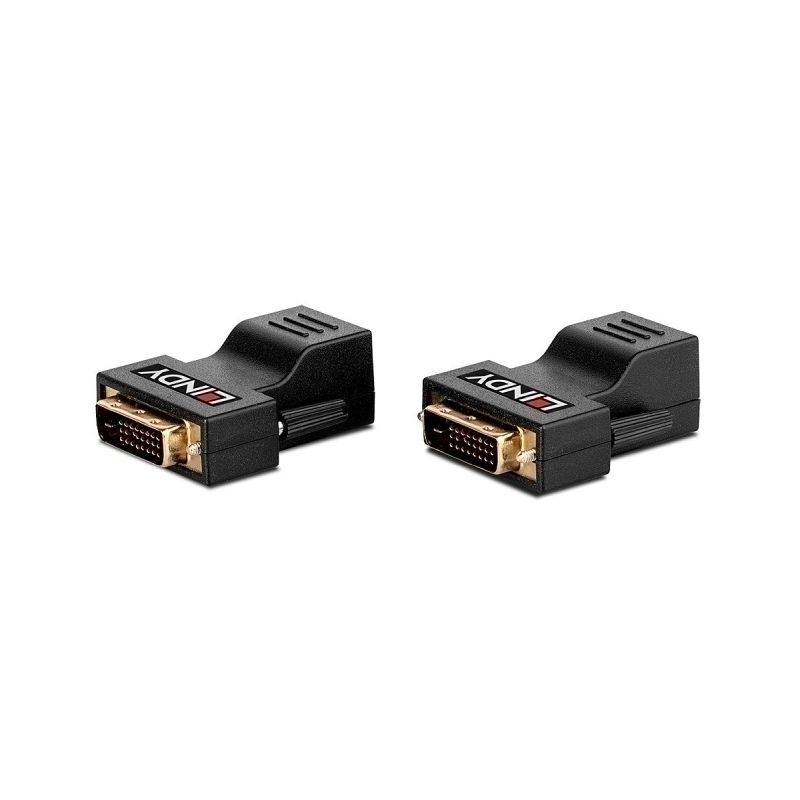

Lindy 70m Cat.6 DVI-D Single Link Extender

Specifications:

• AV Interface: DVI-D


• Interface Standard: DVI-D 1.1 (Single Link)


• Supported Bandwidth: 4.95 Gbps


• 70m (229.66ft) - 800x600@60Hz


• 50m (164.04ft) - 1920x1200@60Hz


• Maximum Resolution: 1920x1200@60Hz


• Transmission Medium: 1 x Cat.5e or Cat.6


• Transmitter Input: DVI-D (Male)


• Transmitter Output: RJ45 (Female)


• Receiver Input: RJ45 (Female)


• Receiver Output: DVI-D (Male)


• Power: USB Micro-B socket


• Dimensions: 55x40x22mm per unit


• Housing Material: Metal


• Net Weight: 0.03kg per unit


• Operating Temperature: 0C - 55C


• Storage Temperature: -20C - 85C


• Humidity: 0 - 95% RH (non-condensing)


• Power Requirements: 5VDC 320mA (TX)


• Colour: Black

Features:

• Extends DVI-D Single Link Signals up to 70m using a single Cat.6 Cable


• Supports resolutions up to 1920x1200@60Hz


• Minimalist, compact design


• Optional external DC power connection


• 2-year warranty
