Lindy 70m CAT6 HDMI 4K Ext

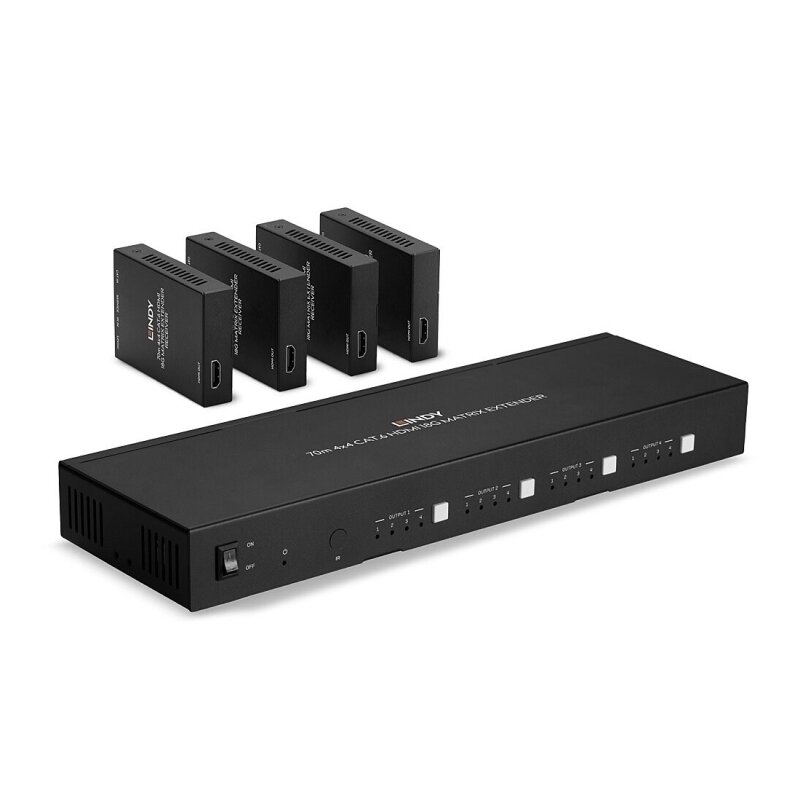

Lindy 70m CAT6 HDMI 4K Extender - DS

Specifications:

• AV Interface: HDMI


• Interface Standard: HDMI 2.0


• Supported Bandwidth: 18Gbps


• Maximum Distance: 70m


• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit


• HDCP Support: 2.2


• EDID Pass Through: EDID Management: Pre-set or Copy Functionality


• Supported Audio: HDMI Audio Pass-through


• IR Support: 20-60KHz


• CEC Support: Pass-through


• Serial Interface: RS-232


• Transmission Medium: 1 x Cat.6 each port


• Chipset: GSV


• Transmitter Input: 4 x HDMI Type A (Female)


• Transmitter Output: 4 x HDMI Type A (Female) | 4 x RJ-45 (Female) | 4 x 3.5mm IR (Female) | RJ-45 LAN Control (Female) | 3-Pin Phoenix Connector (Female)


• Receiver Input: RJ-45 (Female) | 3.5mm IR (Female)


• Receiver Output: HDMI Type A (Female)


• Power: 5.5/2.1mm


• Extender Dimensions: 320 x 100 x 36mm


• Receiver Dimensions: 61 x 88 x 18mm


• Extender Weight: 0.95kg


• Receiver Weight: 0.14kg


• Power Requirements: 12VDC 2.5A


• Warranty (Years): 2


• Certificated: CE | UKCA | FCC | RoHS | REACH

Features:

• Distribute 4K HDMI signals to up to 4 displays in multiple locations from 4 different sources


• Supports resolutions up to 4K@60Hz with additional support for HDR


• Features 4 HDMI outputs on the transmitter for local monitoring which run simultaneously with the extension output


• Supports Power over Cat.6 (PoC) to the receivers only a single power supply is required for operation


• 2-year warranty
