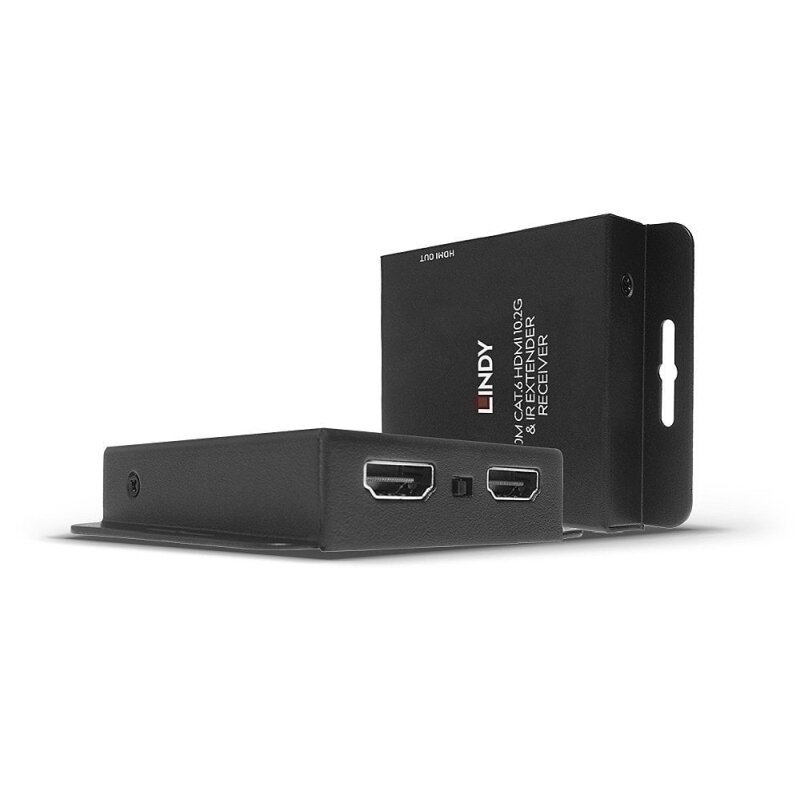

Lindy 70m CAT6 HDMI & IR Ext

Lindy 70m CAT6 HDMI & IR Extender - DS

Specifications:

• AV Interface: HDMI


• Interface Standard: HDMI 1.4


• Supported Bandwidth: 10.2Gbps


• Maximum Distance: 70m - 1920x1080@60Hz | 40m - 3840x2160@30Hz 4:4:4 8bit


• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit


• HDCP Support: HDCP 1.4


• EDID Pass Through: EDID Copy Functionality


• Supported Audio: Up to 7.1 (Pass-through)


• IR Support: 20-60kHz


• Transmission Medium: 1 x Cat.6


• Chipset: GSV1001


• Transmitter Input: HDMI Type A (Female)


• Transmitter Output: HDMI Type A (Female) | RJ-45 (Female) | IR (Female)


• Receiver Input: RJ-45 (Female) | IR (Female)


• Receiver Output: HDMI Type A (Female)


• Power : 5.5/2.1mm


• Dimensions: 79.5 x 16.5 x 69mm


• Weight: 0.13kg (per unit)


• Power Requirements: 12VDC 1A


• Warranty (Years): 2


• Certificated: CE | FCC | RoHS | REACH

Features:

• Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable


• Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit


• Loop-through HDMI output on the Transmitter for local monitoring


• Supports power over Cat.6 (only a single power supply is required)


• 2-year warranty
