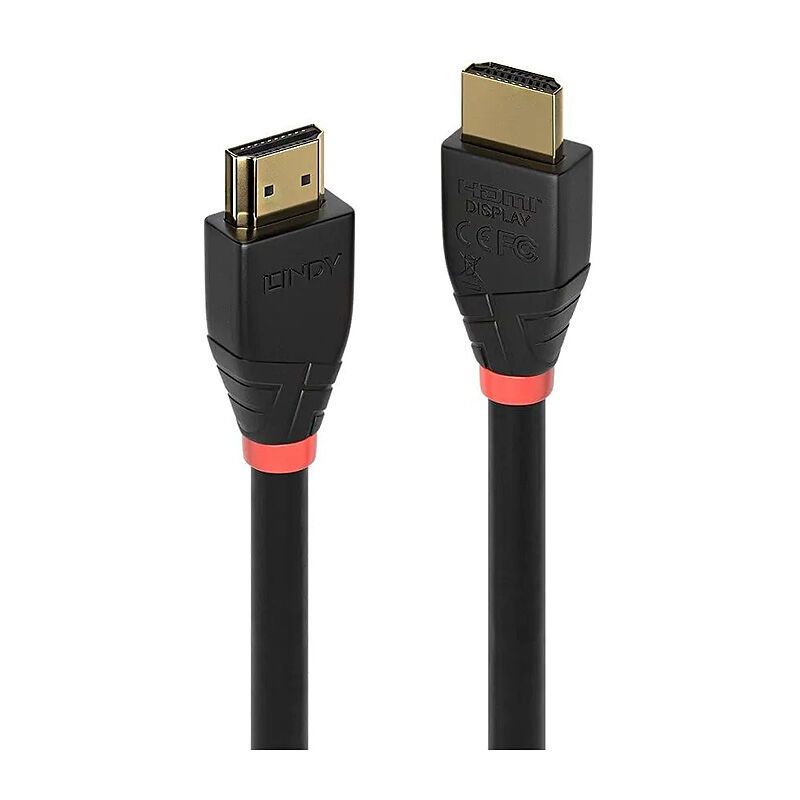

About Lindy 20m Active HDMI 4K60 Cbl

Lindy 20m Active HDMI 4K60 Cable creates a long distance HDMI connection between a 4K source device and display

Features

•
  Creates a long distance HDMI connection between a 4K source device and display



•
  Delivers reliable 4K@60Hz resolutions over longer cable distances



•
  Active HDMI technology built into the connector for flexible installation



•
  Full support for HEC, ARC and CEC compliant devices



•
  2 year warranty


Specifications

Connectors

•
  Connector A: HDMI Type A Male



•
  Connector B: HDMI Type A Male



•
  Housing Material: ABS



•
  Connector Plating: 24K Gold Flash



•
  Pin Construction: Phosphor Bronze



•
  Pin Plating: 24K Gold 3um



•
  Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)


Cable Construction

•
  Standard: HDMI 2.0



•
  Colour: Black



•
  Type: Round



•
  Jacket Diameter: 8.6mm (0.34in)



•
  Jacket Material: PVC



•
  Conductor Material: Bare Copper



•
  Conductor Gauge: 28AWG



•
  Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%


Specifications

•
  Supported Bandwidth: 18Gbps



•
  Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit



•
  Nominal Attenuation: 300KHz~825MHz 5dB, 2.475GHz~4.125GHz 12dB~20dB



•
  Minimum Bend Radius: 100mm (3.94in)



•
  Operating Temperature: -20°C - 80°C (-4°F - 176°F)



•
  Storage Temperature: -10°C - 60°C (14°F - 140°F)


Miscellaneous

•
  Packaging Type: Polybag



•
  Warranty (Years): 2 Years



•
  Certificated: CE, FCC, RoHS, REACH & UL
