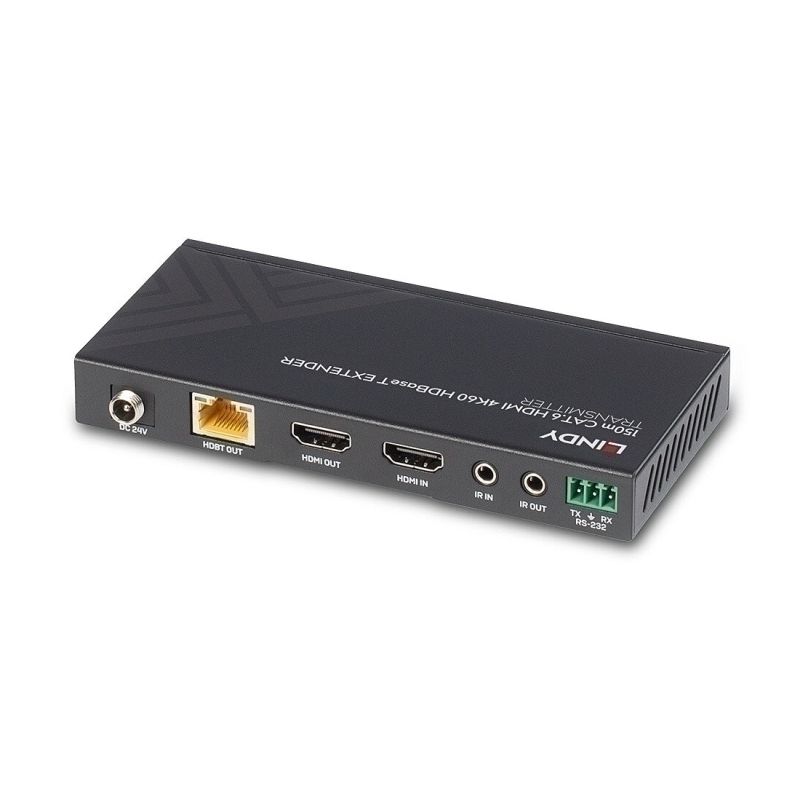

Lindy 150m CAT6 HDMI Ext

Lindy 150m CAT6 HDMI Extender - DS

Specifications:

• AV Interface: HDMI Interface


• Standard: HDMI 2.0


• Supported Bandwidth: 18 Gbps


• Maximum Distance: 70m - 3840x2160@60Hz 4:4:4 8bit | 100m - 3840x2160@30Hz 4:4:4 8bit | 150m - 1280x720@60Hz


• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit


• HDCP Support: 2.2


• EDID Pass Through: Pass-through


• Supported Audio: HDMI Audio Pass-through


• IR Support: 20KHz - 60KHz


• CEC Support: Pass-through


• Serial Interface: RS-232 (Bi-directional)


• Transmission Protocol: HDBaseT


• Transmission Medium: 1 x Cat.6


• Chipset: VS010-A0


• Special Features: HDMI Loop Out Port PoC (Power over Cat.6)


• Transmitter Input: HDMI Type A (Female) | IR (Female)


• Transmitter Output: HDMI Type A (Female) | RJ-45 (Female) | IR (Female)


• Receiver Input: RJ-45 (Female)


• Receiver Output: HDMI Type A (Female) | 3.5mm (Female)


• Bi-directional Ports: RS-232 (Female)


• Power : 5.5/2.1mm


• Dimensions: 140 x 65 x 18mm


• Weight: 0.472kg Per Unit


• Power Requirements: 24VDC 1A


• Warranty (Years): 2


• Certificated: CE | UKCA | FCC | RoHS | REACH

Features:

• Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT & Long Reach technology


• Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4


• RS-232 CEC pass-through and bi-directional IR for simple control


• Supports PoC (Power over cable) requiring a power supply connection from only one side of the installation


• 2 Year Warranty
