Lindy 100m USB3.2 CAT6A Extndr

About Lindy 100m USB3.2 CAT6A Extndr

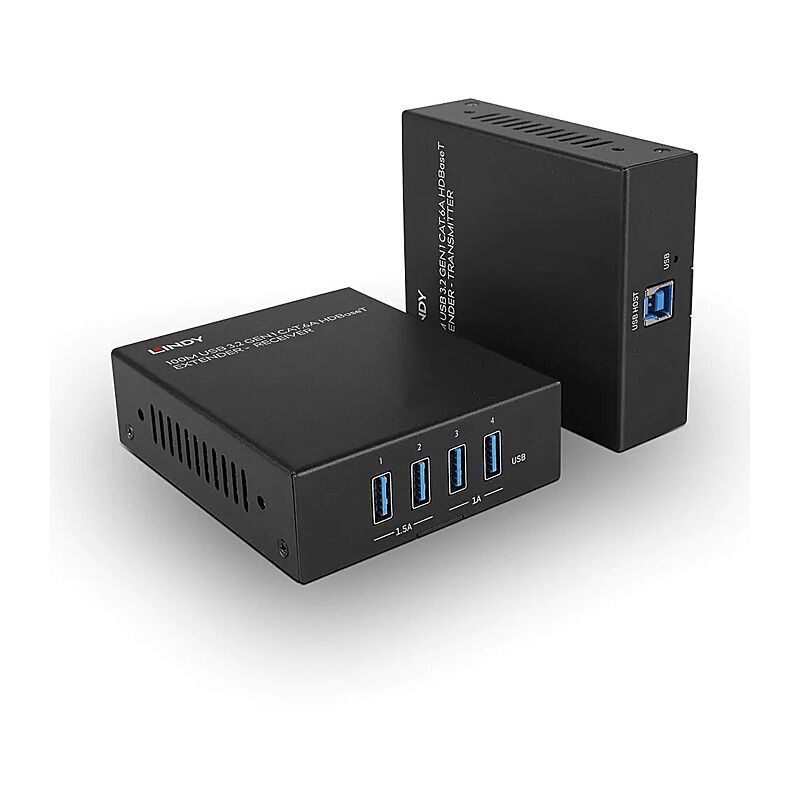

Lindy 100m USB 3.2 Gen 1 CAT6A HDBaseT Extender

Features:

•
  Extend 4 USB 3.2 Gen 1 ports up to 100m using Cat.6A network cable (not included)



•
  Power over Cable requires a single power supply to be connected to the transmitter or receiver only



•
  Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports



•
  Plug & Play installation



•
  2 year warranty


Specifications:

•
  USB Standard: USB 3.2 Gen 1



•
  Supported Bandwidth: 5Gbps



•
  Maximum Distance: 100m (328.08ft)



•
  Transmission Medium: Cat.6A or higher network cable



•
  Chipset: VS6320



•
  Special Features: Power over Cable, supports FSYNC, RS232, control, bulk, interrupt and isochronous data transfer


Connectors

•
  Transmitter Input: USB 3.0 Type B (Female)



•
  Transmitter Output: RJ45 (Female)



•
  Receiver Input: RJ45 (Female)



•
  Receiver Output: 4 x USB Type A (Female)



•
  Power: 5.5/2.1mm DC socket


Physical Properties

•
  Dimensions WxDxH: 100x85x30mm (3.94x3.35x1.18in) each



•
  Housing Material: Metal



•
  Net Weight: 0.5kg (1.1lb)



•
  Operating Temperature: 0� - 40�C (32�F - 104�F)



•
  Storage Temperature: -20�C - 60�C (-4�F - 140�F)



•
  Humidity: 0 - 90% RH (non-condensing)



•
  Power Requirements: 24VDC 2A



•
  Colour: Black


Miscellaneous

•
  Packaging Type: Carton Box



•
  Packaging Dimensions: 235x150x80mm (9.25x5.91x3.15in)



•
  Gross Weight: 0.9kg (1.98lb)



•
  Warranty (Years): 2 Product



•
  Compliance: CE, UKCA, FCC, RoHS & REACH, CP65


Whats in the box?

•
  Transmitter unit



•
  Receiver unit



•
  1m USB 3.2 Gen 1 Type A Male to B Male cable



•
  2 x 4-Pin Terminal Block



•
  Multi-Country Power Supply (EU, UK, US & AUS)



•
  Mounting brackets & screws



•
  Lindy Manual
