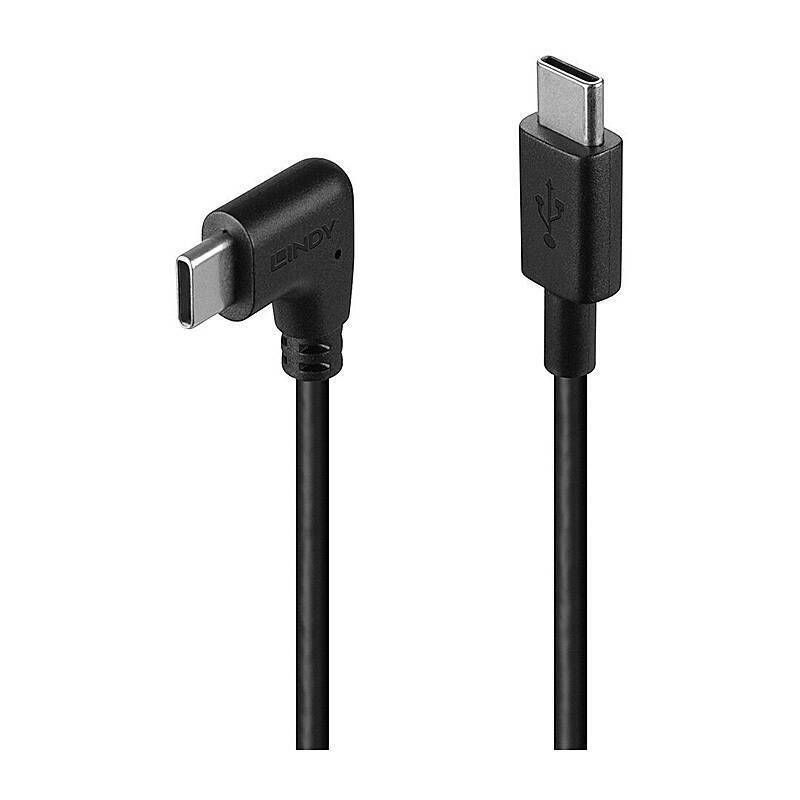

Lindy 0.5m USB 2.0 Type C Cable, 90� Right Angle

About Lindy 0.5m USB 2.0 Type C Cable, 90� Right Angle

Lindy 0.5m USB 2.0 Type C Cable, 90deg Right Angle

Features:

•
  Professional choice USB 2.0 Type C to C cable for commercial and high-performance AV and IT installations



•
  Supports data transfer speeds up to 480Mbps



•
  Robust PVC housing, gold-plated connectors and contacts



•
  Double-shielded cable, corrosion-resistant tinned copper conductors



•
  USB 2.0, 480Mbps; 10 year warranty


Specifications:

•
  Supported Bandwidth: 480Mbps



•
  Nominal Attenuation: 0.5-3m: 0.5Mhz � 400Mhz < 5.8db



•
  Minimum Bend Radius: 45mm (1.77in)



•
  Operating Temperature: -20�C - 80�C (-4�F - 176�F)



•
  Storage Temperature: -25�C - 85�C (-13�F - 185�F)


Connectors:

•
  Connector A: USB 2.0 Type C Male



•
  Connector B: USB 2.0 Type C Male



•
  Housing Material: PVC



•
  Connector Plating: 24K Gold Plated



•
  Pin Construction: Phosphor Bronze



•
  Pin Plating: 24K Gold Plated



•
  Dimensions, (approx.) WxDxH: 11.0x7.3x21.65mm (0.43x0.29x0.85in)


Cable Construction:

•
  Standard: USB 2.0



•
  Colour: Black



•
  Type: Round



•
  Jacket Diameter: 4.5mm (0.18in)



•
  Jacket Material: PVC



•
  Conductor Material: Tinned Copper



•
  Conductor Gauge: 24/28/32AWG



•
  Shielding: Copper Braid 85%


Miscellaneous:

•
  Packaging Type: Polybag



•
  Warranty (Years): 10



•
  Certificated: RoHS, REACH, UL
