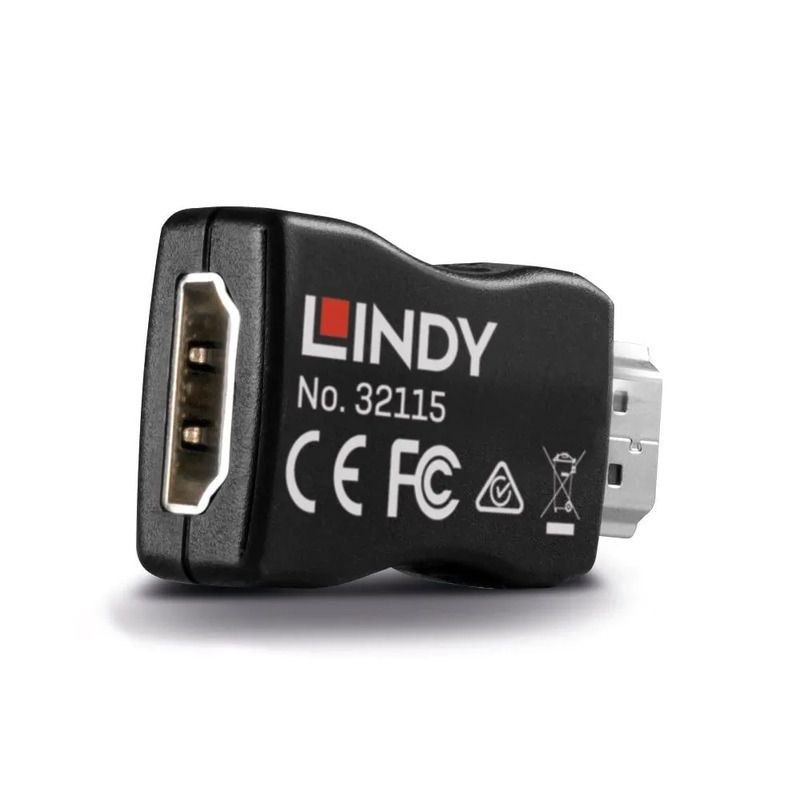

About LINDY HDMI 2.0 EDID Emulator

LINDY HDMI 2.0 EDID Emulator, continuously emulates HDMI EDID information, Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR, Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings

Specifications:

•
  AV Interface: HDMI



•
  Interface Standard: 2.0



•
  Supported Bandwidth: 18 Gbps



•
  Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit



•
  Video EDID: 640 x 480p @ 60Hz | 640 x 480p @ 67Hz | 640 x 480p @ 72Hz | 640 x 480p @ 75Hz | 720 x 480p @ 60Hz | 720 x 480i at 60Hz | 720 x 400p @ 70Hz | 720 x 576p @ 60Hz | 720 x 576i @ 50Hz | 800 x 600p @ 56Hz | 800 x 600p @ 60Hz | 800 x 600p @ 72Hz | 800 x 600p @ 75Hz | 832 x 624p @ 75Hz | 1024 x 768p @ 60Hz | 1024 x 768p @ 70Hz | 1024 x 768p @ 75Hz | 280 x 1024p @ 75Hz | 280 x 720p @ 50Hz | 152 x 870p @ 75Hz | 152 x 864p @ 75Hz | 1280 x 1024p @ 60Hz | 1280 x 960p @ 60Hz | 440 x 480p @ 60Hz | 440 x 576p @ 50Hz | 440 x 900p @ 60Hz | 600 x 1200p @ 60Hz | 1680 x 1050p @ 60Hz | 920 x 1080p @ 60Hz | 1920 x 1080p at 50Hz | 920 x 1080i at 60Hz , 1920 x 1080i at 50Hz | 920 x 1200p at 60Hz | 560 x 1440p at 60Hz | 840 x 2160p at 24Hz , 3840 x 2160p at 30Hz , 3840 x 2160p at 60Hz



•
  Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz



•
  HDCP Support: 2.2



•
  Special Features: High Dynamic Range Support, CEC Compatible



•
  Input: HDMI Type A Male



•
  Output: HDMI Type A Female



•
  Power: Via HDMI Source Interface



•
  Dimensions: 24x34.3x11.8mm



•
  Housing Material: ABS



•
  Net Weight: 0.008kg



•
  Operating Temperature: 0°C - 60C



•
  Storage Temperature: -10°C - 70C



•
  Humidity: 0 - 80% RH (non-condensing)



•
  Colour: Black



•
  Warranty: 2-Year



•
  Certificated: CE, FCC, RoHS & REACH


Features:

•
  Continuously emulates HDMI EDID information



•
  Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR



•
  Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings



•
  Powered via HDMI Source Interface



•
  2-Year warranty


What's in the box:

•
  HDMI 4K EDID Emulator



•
  Lindy Manual
