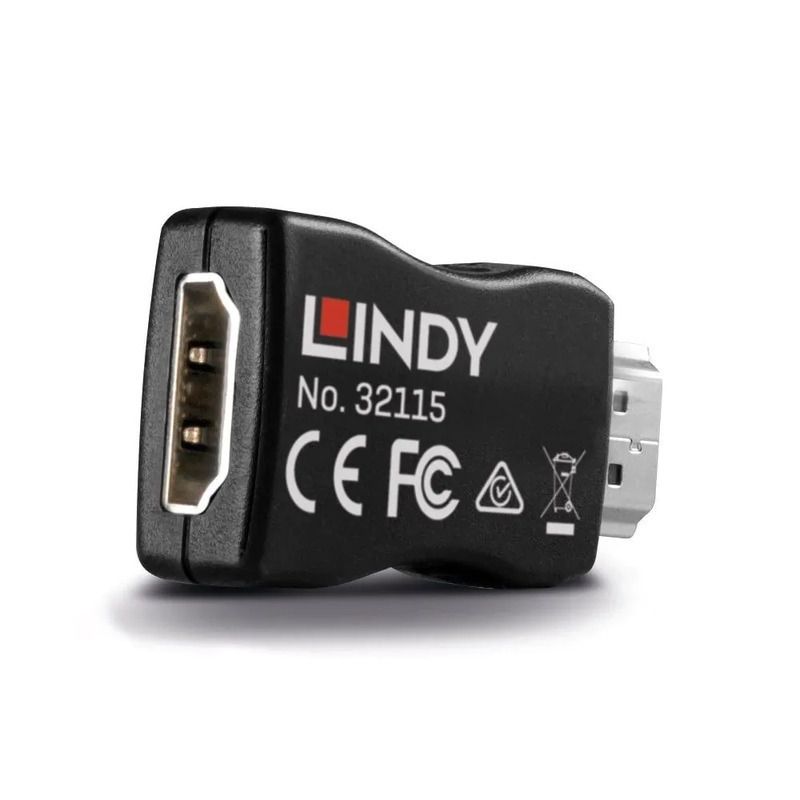

LINDY HDMI 2.0 EDID Emulator

Specifications:

• AV Interface: HDMI


• Interface Standard: 2.0


• Supported Bandwidth: 18 Gbps


• Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit


• Video EDID: 640 x 480p @ 60Hz | 640 x 480p @ 67Hz | 640 x 480p @ 72Hz | 640 x 480p @ 75Hz | 720 x 480p @ 60Hz | 720 x 480i at 60Hz | 720 x 400p @ 70Hz | 720 x 576p @ 60Hz | 720 x 576i @ 50Hz | 800 x 600p @ 56Hz | 800 x 600p @ 60Hz | 800 x 600p @ 72Hz | 800 x 600p @ 75Hz | 832 x 624p @ 75Hz | 1024 x 768p @ 60Hz | 1024 x 768p @ 70Hz | 1024 x 768p @ 75Hz | 280 x 1024p @ 75Hz | 280 x 720p @ 50Hz | 152 x 870p @ 75Hz | 152 x 864p @ 75Hz | 1280 x 1024p @ 60Hz | 1280 x 960p @ 60Hz | 440 x 480p @ 60Hz | 440 x 576p @ 50Hz | 440 x 900p @ 60Hz | 600 x 1200p @ 60Hz | 1680 x 1050p @ 60Hz | 920 x 1080p @ 60Hz | 1920 x 1080p at 50Hz | 920 x 1080i at 60Hz , 1920 x 1080i at 50Hz | 920 x 1200p at 60Hz | 560 x 1440p at 60Hz | 840 x 2160p at 24Hz , 3840 x 2160p at 30Hz , 3840 x 2160p at 60Hz


• Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz


• HDCP Support: 2.2


• Special Features: High Dynamic Range Support, CEC Compatible


• Input: HDMI Type A Male


• Output: HDMI Type A Female


• Power: Via HDMI Source Interface


• Dimensions: 24x34.3x11.8mm


• Housing Material: ABS


• Net Weight: 0.008kg


• Operating Temperature: 0�C - 60C


• Storage Temperature: -10�C - 70C


• Humidity: 0 - 80% RH (non-condensing)


• Colour: Black


• Warranty: 2-Year


• Certificated: CE, FCC, RoHS & REACH

Features:

• Continuously emulates HDMI EDID information


• Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR


• Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings


• Powered via HDMI Source Interface


• 2-Year warranty

What's in the box:

• HDMI 4K EDID Emulator


• Lindy Manual
