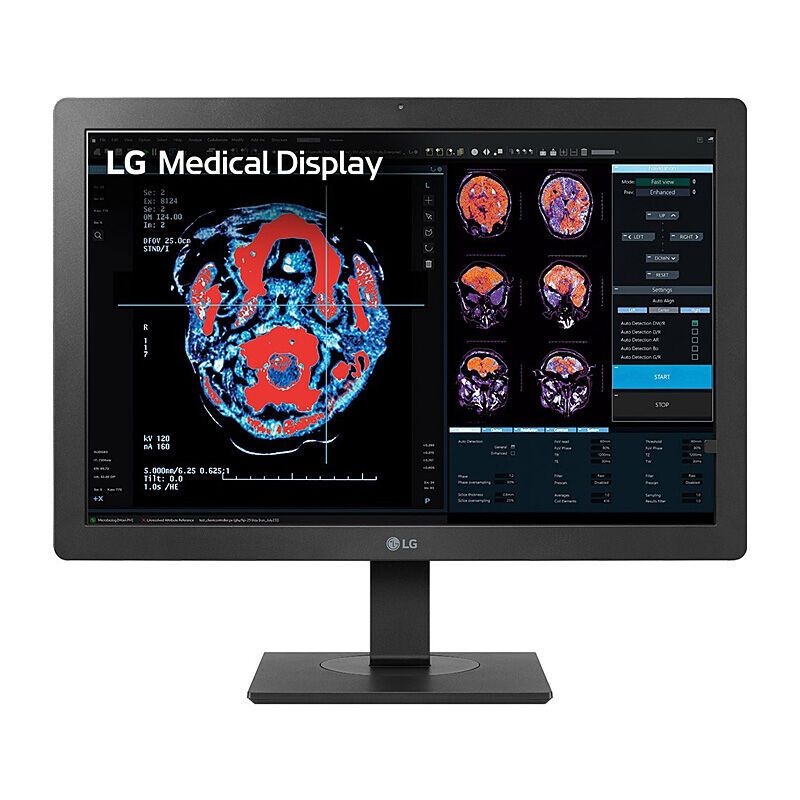

About LG 24'' Clinical Monitor

LG 24'' Clinical Review Monitor with Calibration Sensor, 3 Year Warranty

Features

•
  24-inch 2MP (1920 × 1200) IPS Display



•
  600cd/m² Brightness (Typ.)



•
  Internal Front Calibration Sensor



•
  Focus View Mode / Pathology Mode



•
  Daisy Chain



•
  Bi-directional Auto Pivot


Specifications

Display

•
  Size [Inch]: 24



•
  Aspect Ratio: 16:10



•
  Surface Treatment: Anti-Glare



•
  Response Time: 5ms (GtG at Faster)



•
  Resolution: 1920 — 1200



•
  Pixel Pitch [mm]: 0.27 — 0.27



•
  Viewing Angle (CR10): 178° (R/L), 178° (U/D)



•
  Brightness (Typ.) [cd/m²]: 600



•
  Contrast Ratio (Typ.): 1000:1



•
  Colour Gamut (Typ.): NTSC 70% (CIE1931)



•
  Colour Bit: 8bit


Connectivity

•
  12G-SDI: NO



•
  3G-SDI: NO



•
  D-Sub: NO



•
  DVI-D: YES (1ea)



•
  Component (Resolution): NO



•
  Composite (Resolution): NO



•
  HDMI: YES (1ea)



•
  Daisy Chain: YES



•
  DisplayPort: YES (In 1ea / Out 1ea)



•
  Thunderbolt: NO



•
  Headphone Out: NO



•
  RS-232: NO



•
  S-Video: NO



•
  USB Downstream Port: YES (2ea / ver3.0)



•
  USB Upstream Port: YES (2ea / ver3.0)


Features

•
  HDR 10: NO



•
  Auto Luminance Sensor: YES



•
  Smart Energy Saving: YES



•
  PIP: NO



•
  PBP: NO



•
  Flicker Safe: YES



•
  HW Calibration: YES



•
  Black Stabiliser: YES



•
  Lighting: NO



•
  Reader Mode: YES



•
  Super Resolution+: YES



•
  Hot Key: NO



•
  Presence Sensor: NO



•
  Front Sensor: YES



•
  Colour Temperature: 6500K / 7500K / 9300K / Manual (5000K–10000K)



•
  Rotation & Mirror Mode: NO



•
  Failover Input Switch: NO



•
  Focus View: YES



•
  Light Box Mode: NO



•
  Brightness Stabilisation: YES



•
  Pathology Mode: YES



•
  DICOM Compliant: YES



•
  HDR Effect: NO


Mechanical

•
  Display Position Adjustments: Tilt / Height / Swivel / Pivot



•
  Borderless Design: Normal



•
  Wall Mountable [mm]: 100 — 100



•
  OneClick Stand: YES



•
  Mechanical Power Switch: NO


Dimensions / Weights

•
  Dimension in Shipping (W — H — D): 705 — 480 — 200 mm



•
  Dimension with Stand (W — H — D): 574.2 — 559.4 — 248.2 mm



•
  Dimension without Stand (W — H — D): 574.2 — 382.4 — 59.3 mm



•
  Weight in Shipping: 9.7 kg



•
  Weight with Stand: 7.1 kg



•
  Weight without Stand: 4.35 kg


Power

•
  Power Consumption (Max.): 65W



•
  Power Consumption (DC Off): Less than 0.3W



•
  AC Input: 100–240V (50/60Hz)



•
  Type: External Power (Adapter)



•
  DC Output: 19V, 3.42A


Accessory

•
  Adapter: YES



•
  Calibration Report (Paper): YES



•
  Display Port: YES



•
  DVI-D: YES



•
  DVI-D (Colour/Length): YES



•
  D-Sub: NO



•
  HDMI: YES



•
  HDMI (Colour/Length): YES



•
  Power Cord: YES



•
  USB3.0 Upstream Cable: YES


SW Application

•
  Dual Controller: YES



•
  LG Calibration Studio (True Colour Pro): NO



•
  Qubyx: NO


Standard

•
  UL (cUL): YES



•
  CE: YES



•
  RoHS: YES



•
  IP (Front/Except for front): NO



•
  Vandal-proof: NO



•
  KGMP: YES



•
  KC (for Rep. of Korea): YES



•
  IEC (IEC 60601-1 / IEC 60601-1-2): YES



•
  EN (EN 60601-1 / EN 60601-1-2): YES



•
  IEC (IEC 60950-1 / IEC 55032, 55024): YES



•
  EN (EN 60950-1 / EN 55032, 55024): YES



•
  FDA: Class II



•
  ISO13485: YES



•
  GMP: YES



•
  WEEE: YES



•
  MFDS: YES



•
  REACH: YES
