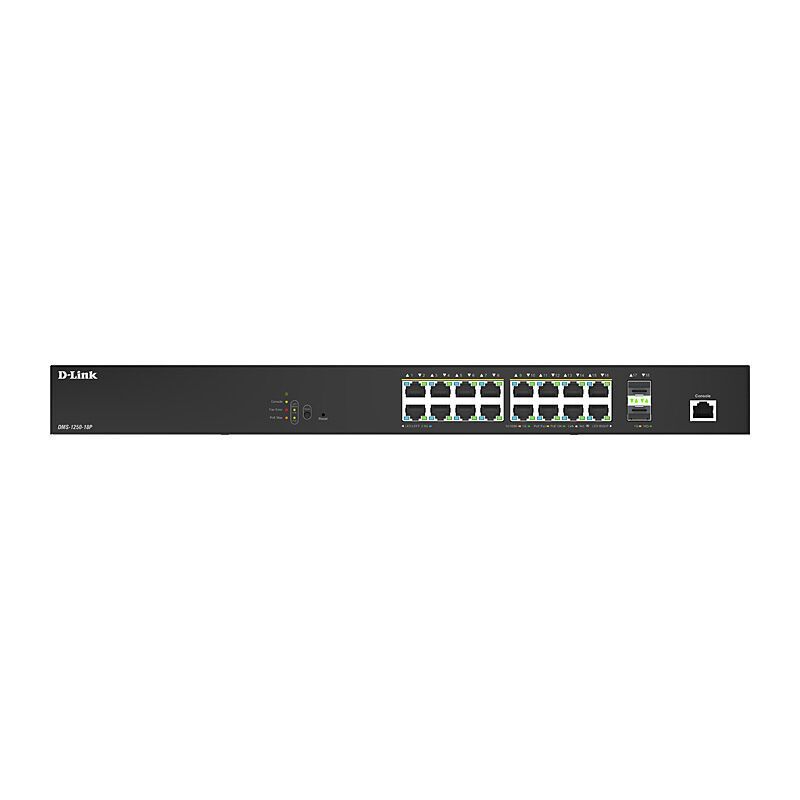

About D-Link DMS-1250-18P Switch

D-Link 18-Port Multi-Gigabit Smart Managed PoE++ Switch with 16 2.5G PoE++ ports and 2 10G SFP+ ports. PoE budget 370W.

Features

•
  16 Ports 2.5GE PoE for downlink



•
  2 Ports 10G SFP+ for uplink



•
  PoE IEEE802.3af/at/bt options, power budget 370W



•
  6kV surge protection on all 2.5G ethernet ports



•
  Supports LACP 802.3ad Link Aggregation



•
  Supports Static Routing & Loopback Detection



•
  Supports Spanning Tree Protocol(STP/RSTP/MSTP)



•
  AAA support for RADIUS/TACACS+



•
  Supports D-Link Safeguard Engine



•
  Manage through the Nuclias Network Controller


Specifications

•
  Switch Type: Layer2+ IP Routing



•
  Type of Port Required: 2.5 Gigabit Copper



•
  Number of Ports: 5 – 16



•
  PoE Type Required: PoE+, PoE++



•
  High Speed Stacking: No



•
  Design: Desktop, Rackmountable



•
  SFP Ports: 2 Ports



•
  2.5Gb Ports: 16 Ports



•
  PoE Ports: 16 Ports



•
  PoE Budget: 240 Watts



•
  Switching Capacity: 120 Gbps



•
  QoS: Yes



•
  Spanning Tree Protocol: Yes



•
  Link Aggregation: Yes



•
  VLAN: 4K Groups



•
  Surveillance VLAN: Yes



•
  Jumbo Frame: 12K bytes



•
  Voice VLAN: Yes



•
  IGMP Snooping: Yes



•
  802.1X Access Control: Yes



•
  DHCP Server Screening: Yes



•
  SNMP: Yes



•
  Cable Diagnostics: Yes



•
  Energy Saving Technology: EEE Compliant, D-Link Green, RoHS 6 Compliant



•
  19" Rack Mountable: Yes



•
  Fans: 3



•
  Built-in PSU: Yes



•
  Dimensions (Size): 440 × 250 × 44 mm



•
  Web-based GUI: Yes



•
  Command Line Interface: Yes



•
  Types of Ports: 10Gb SFP+ Ports, 2.5Gb Ports



•
  10Gb SFP+ Ports: 2 Ports



•
  Static Routing: Yes
