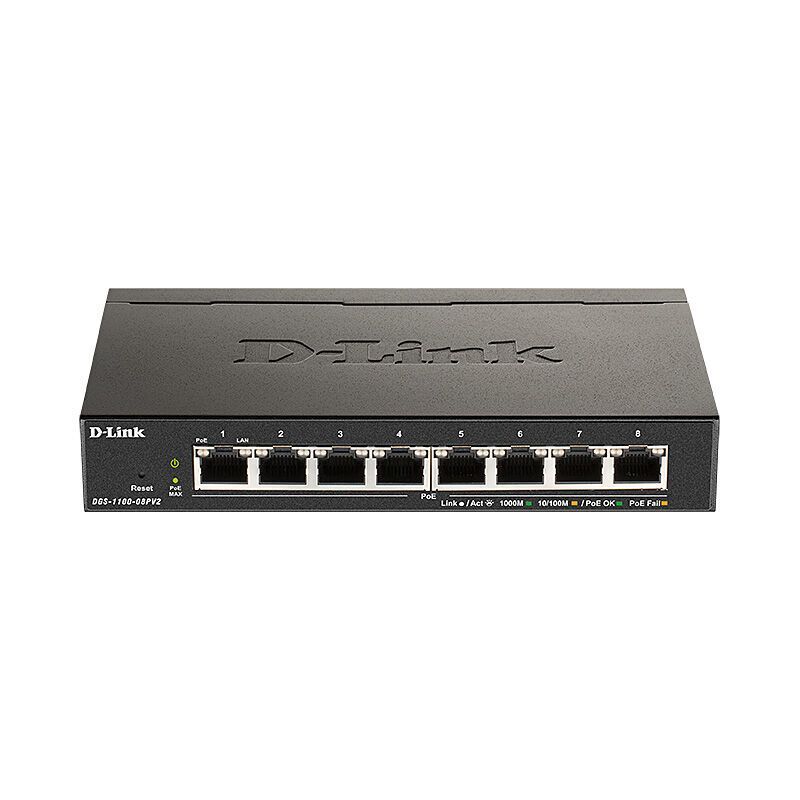

About D-LINKDGS-1100-08P PoE Switch

The DGS-1100-08P consists of eight 10/100/1000 Mbps PoE+ Ports and comes in a compact enclosure. Switch management can be performed through a web management interface or through the SmartConsole Utility.

Features

•
  8 x 10/100/1000BASE-T PoE+ ports



•
  PoE+ support with up to 30W per port



•
  64 Watts PoE Power Budget



•
  Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs



•
  Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery



•
  Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security



•
  IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic



•
  Innovative energy saving features are good for your budget, as well as the environment



•
  Get up and going quickly with streamlined first-time setup and ongoing management


Specifications

•
  Switch Type: Layer 2



•
  Type of Port Required: Gigabit Copper



•
  Number of Ports: 5 – 16



•
  PoE Type Required: PoE, PoE+



•
  High Speed Stacking: No



•
  Design: Desktop, Fanless



•
  1000Base-T Ports: 8 Ports



•
  PoE Ports: 8 Ports



•
  PoE Budget: 64 Watts



•
  Switching Capacity: 16 Gbps



•
  QoS: Yes



•
  Spanning Tree Protocol: Yes



•
  Link Aggregation: Yes



•
  VLAN: 32 Groups



•
  Surveillance VLAN: Yes



•
  Jumbo Frame: 9216 bytes



•
  Voice VLAN: Yes



•
  IGMP Snooping: Yes



•
  Cable Diagnostics: Yes



•
  Energy Saving Technology: EEE Compliant, D-Link Green, RoHS 6 Compliant



•
  19" Rack Mountable: No



•
  Fans: Fanless



•
  Dimensions (Size): 171 x 98 x 29 mm



•
  Web-based GUI: Yes



•
  Command Line Interface: No



•
  Types of Ports: Gigabit Ports



•
  Static Routing: No



•
  Switch Series: DGS-1100 Series
