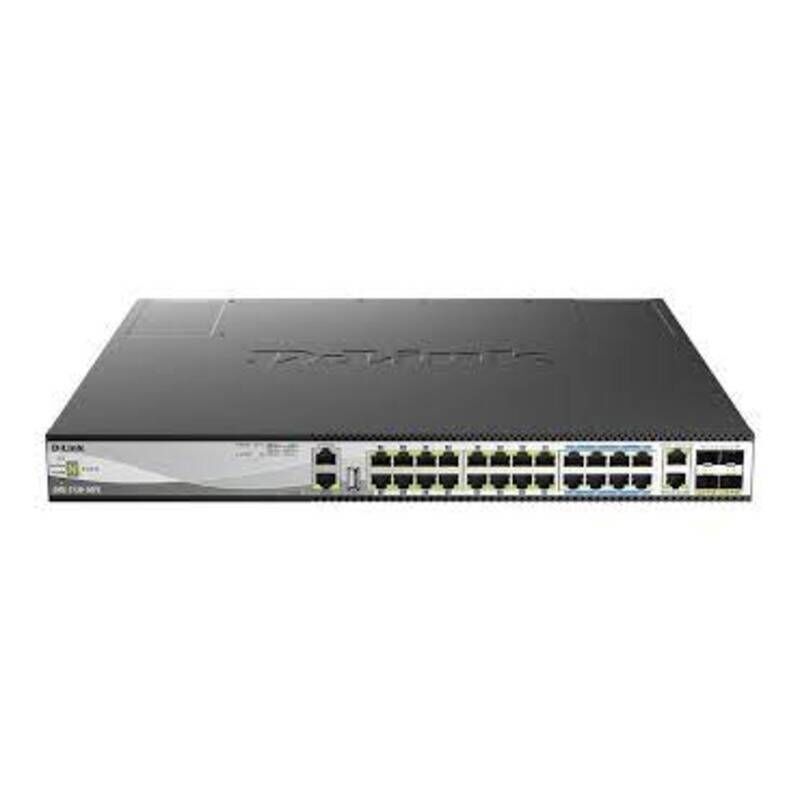

About D-LINK 30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch

D-LINK 30-Port Stackable Multi-Gigabit PoE+ Layer 3+ Switch with 16 2.5G PoE+ ports, 8 5G PoE++ ports, 2 10GBASE-T and 4 25G SFP28 ports. PoE budget 740W (960W with RPS).

Features:

•
  16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports



•
  2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs



•
  PoE budget of 740W allows powering of numerous external devices (Up to 960W with dual powers)



•
  Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer



•
  RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible



•
  Expand capacity in a flash with physical stacking up to 9 units



•
  Smart Fan self-adjusts accordingly to maintain optimal operating temperatures



•
  Support ERPS, Q-in-Q and 6 KV surge protection



•
  Support 60W PoE compliancewith IEEE 802.3bt



•
  Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting


Specifications:

•
  Console Port: 10/100/1000BASE-T RJ-45 port for out-of-band CLI management



•
  Optional Redundant Power Supply :



•
  AC (DPS-PWR740AC) hot-swappable internal redundant power supplies



•
  DC (DPS-PWR740DC) hot-swappable internal redundant power supplies



•
  Performance: 64 Byte Packet Forwarding Rate 298 Mpps



•
  Packet Buffer Memory: 4 MB



•
  PoE Ports: 16 x 100M/1/2.5GBASE-T PoE ports



•
  2 x 100M/1/2.5/5/10GBASE-T ports



•
  4 x 10/25G SFP28 ports



•
  8 x 100M/1/2.5/5GBASE-T 60W PoE ports



•
  RJ-45 Management Port: 10/100/1000BASE-T RJ-45 port for out-of-band IP management



•
  Standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt



•
  Interfaces:



•
  1 x Stacking Cost



•
  1 x USB 2.0 Type A port



•
  4 x Stacking Ports



•
  PoE Power Budget: 740 W



•
  960 W (dual power supplies)



•
  Switching Capacity: 400 Gbps
