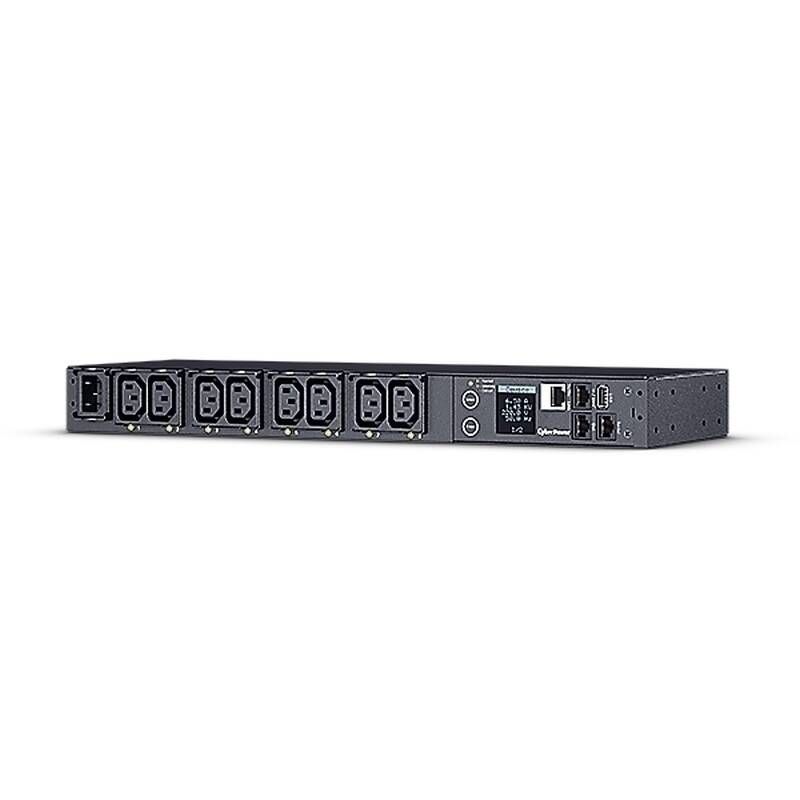

Cyberpower PDU81004 Switched Managed Bypass Power Distribution Unit - 12 Amp

Specifications:

• Phase: Single Phase


• Nominal Input Voltage ( Vac ): 100 - 240


• Input Frequency ( Hz ): 50 / 60


• Maximum Input Current ( A ): 12 (UL) | 10 (CE)


• Input Connector Type: IEC C14 x 1


• Power Cord Length: 3.05m


• Output Voltage ( V ): Depends on Input


• Outlets - # of Bank(s) ( Bank ): 1


• Outlet(s) - Total: 8


• Outlet(s) - Front: 8


• Outlet Type: IEC C13 x 8


• Remote Individual Outlet Control: Yes


• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version


• Hot-swappable LCD Module: Yes


• Auto LCD Orientation: Yes


• LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot


• LED Indicators: PDU Status | Tx/Rx | Link | Outlet


• Outlet Metering Capability: � 1%


• A-type USB Port: Yes


• Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))


• Environmental Sensor Supported: Yes


• User-upgradeable Firmware: Yes


• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)


• Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog


• Authentication: RADIUS | LDAP | LDAPS | Windows AD


• Installed Rack Height (U): 1


• Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount


• Enclosure Construction: Steel


• Cord Retention Tray: Yes


• IEC Receptacle Locking: Yes


• External Site Ground Pin: Yes


• Adjustable Mounting Brackets: 2 Set (L-short | L-long)


• Dimensions: 433 x 44 x 112mm


• Weight: 2.1kg


• Certifications: CE | FCC Class A | UL60950 | EN 55032 Class A | RoHS


• Warranty: 2 Years

Features:

• Real-time Local/Remote Monitoring and Switching of Individual Outlet


• Work under High Temperature


• Industrial-grade Metal Housing


• User Configurable Color LCD


• Rotatable LCD for Proper Display Orientation


• Firmware Upgrade via USB


• User-upgradeable Firmware


• Adjustable Mounting Brackets


• IEC Receptacle Locking


• Controllable Receptacles with Power Sequencing


• �1% Measurement Accuracy


• Digital Real-time Load Display


• Hot-swappable LCD Design


• LED Status Indicator


• Supports ENVIROSENSOR


• PowerPanel Management Software


• Cord Retention Tray

What's in the box?

• 1 x PDU81004


• 1 x User Manual


• 1 x Product Registration Card


• 1 x Cord Retention Tray


• 1 x Mounting Brackets


• 1 x Cable Ties


• 1 x Screw Kit
